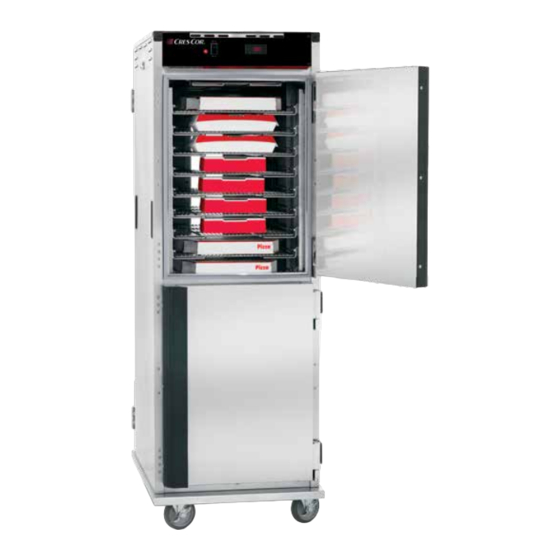

FL-2331
Holding Cabinet
Rev. 3 (3/14)
Page 1 of 7
5925 Heisley Road • Mentor, OH 44060-1833
OPERATING and MAINTENANCE INSTRUCTIONS
Models: H138NPSCMQ Series Hot Cabinet
and H138NPSCMQ-15A Series Hot Cabinet
Cabinet model number:
Cabinet serial number:
Authorized Service Agency:
Ph:
Fax:
Keep this manual for future reference.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cres Cor H138NPSCMQ Series
Summary of Contents for Cres Cor H138NPSCMQ Series
- Page 1 Holding Cabinet Rev. 3 (3/14) Page 1 of 7 5925 Heisley Road • Mentor, OH 44060-1833 OPERATING and MAINTENANCE INSTRUCTIONS Models: H138NPSCMQ Series Hot Cabinet and H138NPSCMQ-15A Series Hot Cabinet Cabinet model number: Cabinet serial number: Authorized Service Agency: Fax:...
-
Page 2: Electrical Specifications
FL-2331 Holding Cabinet Rev. 3 (3/14) Page 2 of 7 5925 Heisley Road • Mentor, OH 44060-1833 OPERATING and MAINTENANCE INSTRUCTIONS Models: H138NPSC Series Hot Cabinet ELECTRICAL SPECIFICATIONS: Model No. Volts Watts Amps Hertz Phase NEMA H138NPSC 2000 16.6 5-20P H138NPSC-15A 1500 12.5... -
Page 3: Maintenance Instructions
FL-2331 Holding Cabinet Rev. 3 (3/14) Page 3 of 7 5925 Heisley Road • Mentor, OH 44060-1833 MAINTENANCE INSTRUCTIONS Cleaning hints: WARNING 1. Wipe up spills as soon as possible. 2. Clean cabinet daily to avoid heavy dirt build-up. BEFORE cleaning the cabinet: 3. -
Page 4: Troubleshooting
FL-2331 Holding Cabinet Rev. 3 (3/14) Page 4 of 7 5925 Heisley Road • Mentor, OH 44060-1833 TROUBLE-SHOOTING FAILURE POSSIBLE CAUSE 1. POWER LIGHT (Yellow) does NOT light. 1a. Switch is “OFF”. 1b. Cord unplugged from wall outlet. 1c. Circuit breaker/fuse to wall outlet tripped/blown. 1d. -
Page 5: Replacement Parts
FL-2331 Holding Cabinet Rev. 3 (3/14) Page 5 of 7 5925 Heisley Road • Mentor, OH 44060-1833 REPLACEMENT PARTS Include all information on nameplate when ordering parts ITEM DESCRIPTION 120V 1 Blower Kit 0769-180-K 2 Heater Kit, Air 1850 Watt 0811-022-K 1370 Watt 0911-289... - Page 6 FL-2331 Holding Cabinet Rev. 3 (3/14) Page 6 of 7 5925 Heisley Road • Mentor, OH 44060-1833 REPLACEMENT PARTS Include all information on nameplate when ordering parts 14 OR CABINET REPLACEMENT PARTS: H138NPSCDOM3 Item Description Part No. Item Description Part No. Caster 0569-306-K Door, back, window...
-
Page 7: Wiring Diagram
FL-2331 Holding Cabinet Rev. 3 (3/14) Page 7 of 7 5925 Heisley Road • Mentor, OH 44060-1833 WIRING DIAGRAM WHITE BLACK WHITE BLACK...
