OPERATING and MAINTENANCE INSTRUCTIONS

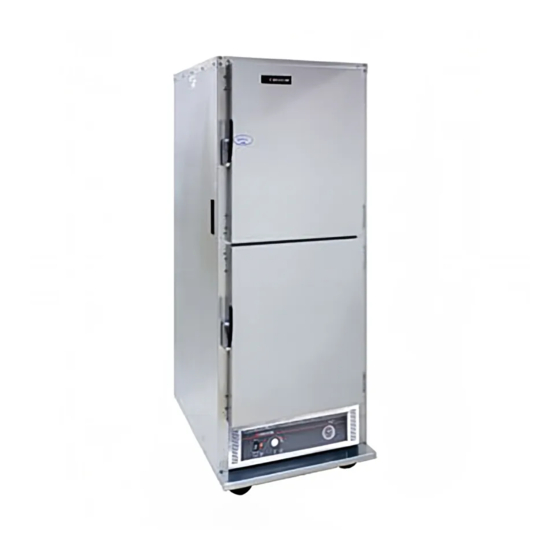

H135SUA11A & H135SUA6A Hot Cabinets (Stainless Steel)
Model No.
H135SUA6A
H135SUA11A
H135SUA6A240
H135SUA11A240
The above are base model numbers. Other characters may be present.

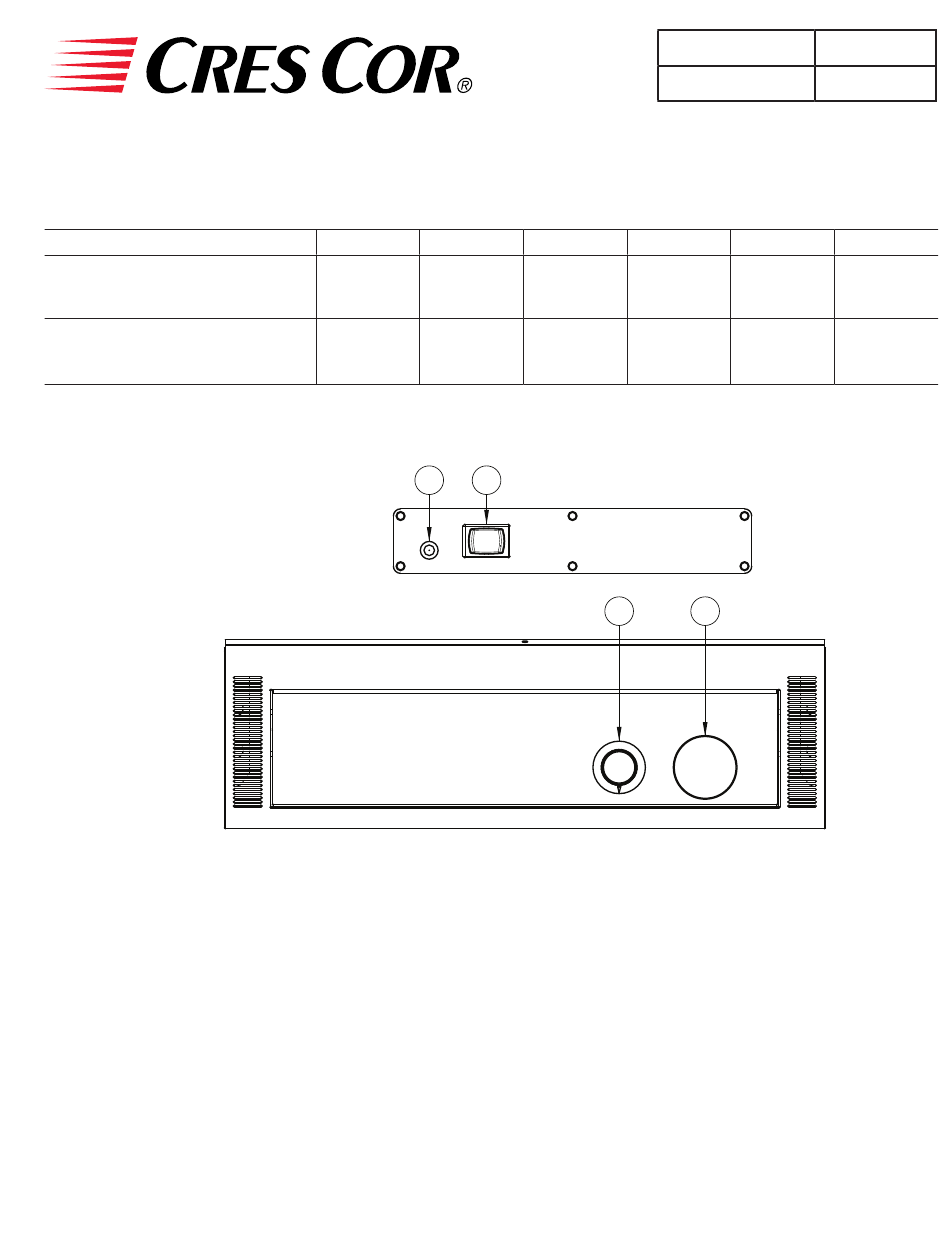

1. RED LIGHT - POWER
2. SWITCH - POWER
3. THERMOSTAT - AIR
4. THERMOMETER
HOW TO INSTALL UNIT:
1. Place cabinet near warm ovens if possible. For
best results, do NOT put in drafty areas or near
ventilating systems.
2. Plug cord end into proper wall outlet.
HOW TO START UNIT:
1. Turn thermostat to #10.
2. Preheat cabinet for 30 minutes.
3. Put food into cabinet.
4. Turn thermostat to #8 and close door.
Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com
Volts
Watts
120
1500
240
1500
1
2
NOTE: No. 9 setting = approx. 190°F (88°C)
Proper food holding temperature is 140°F (60°C) or
higher. The thermometer shows the temperature inside.
TO TURN OFF UNIT:
1. Turn thermostat off.
2. Turn the POWER switch off.
Hot Cabinets
Rev. 0 (1/19)
Amps
Hertz
12.3
60
6.1
60
3
4
No. 7 setting = approx. 165°F (74°C)
FL-2408
Page 1 of 7
Phase
NEMA
1
5-15P
1
6-15P
Advertisement
Related Manuals for Cres Cor H135SUA6A
Summary of Contents for Cres Cor H135SUA6A
- Page 1 1. Turn thermostat to #10. 1. Turn thermostat off. 2. Preheat cabinet for 30 minutes. 2. Turn the POWER switch off. 3. Put food into cabinet. 4. Turn thermostat to #8 and close door. Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com...
- Page 2 Apply with clean, soft cloth. Wipe with or waxy cleaner damp cloth. Mild abrasive cleaner. Apply with soft, clean cloth. Water Spots Oily of waxy cleaner. Wipe with damp cloth. Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com...
-
Page 3: Troubleshooting Chart
NOTE: Optional digital thermometer will flash if cabinet temperature is below 140° F or above 250° F. Call the factory if you need different settings. If cause is none of the above, refer to our list of Authorized Service Centers, FL-1400. Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com... - Page 4 5. Move extra screws to opposite end of hole patterns. 6. Mount hinges and magnets. Make sure hinges are mounted post down. Left Hand 7. Put door onto cabinet and adjust as necessary. 8. Snap on hinge covers. Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com...
-
Page 5: Cabinet Parts
1202-013 BUSHING 2" 5032-024 HEAT SHIELD 5258-010 CORD CLIP 5361-014 PANEL, VENT MISC PARTS PART DESCRIPTION 0569-306 CASTER, 5" 0569-306-B CASTER, 5", 1221-684 DOOR, WINDOW* *FOR RED DOORS ADD -R Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com... - Page 6 SOLID DOOR PARTS PART NO. DESCRIPTION ITEM 0685-512 DOOR, OUTER 0686-274-SS DOOR, INNER 0861-271 GASKET, DOOR 0911-129 PULL HANDLE 1228-379 INSULATION 1447-031 MAGNET 1466-693 REINFORCMENT, DOOR *FOR RED DOORS ADD -R Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com...
- Page 7 PART NO. DESCRIPTION ITEM 0766-101 LIGHT, RED, 120VAC 0807-173 TERMINAL, QC 0808-131 SWITCH, ROCKER, 0817-014 LEVERNUT, WIRE - 3 POLE 0817-015 LEVERNUT, WIRE - 5 POLE 0988-022 COVER, SWITCH 1115-662 COVER, SWITCH Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com...
- Page 8 ° t FOR 220VAC 4 3 2 INPUT 4 3 2 INPUT SENSOR TOP AIR HEATER SENSOR 9,10 12,13 BOTTOM AIR HEATER HOT AIR THERMOSTAT < < < > < < Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com...
