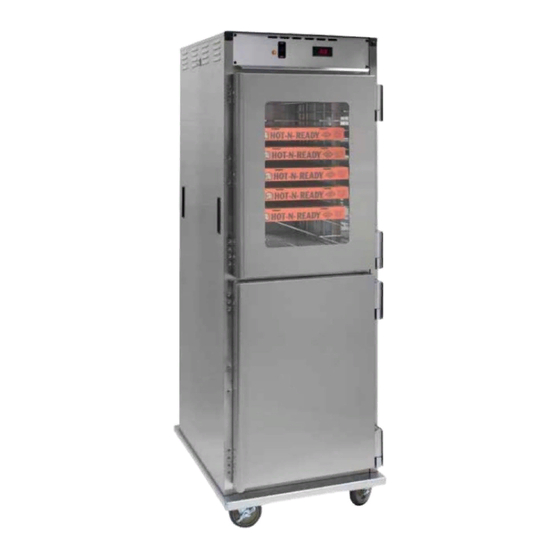

- Page 1 Holding Cabinet Rev. 11 (4/14) Page 1 of 9 5925 Heisley Road • Mentor, OH 44060-1833 OPERATING and MAINTENANCE INSTRUCTIONS Models: H138NPS36CLCMQRL i7 Hot Cabinet Cabinet model number: Cabinet serial number: Authorized Service Agency: Fax: Keep this manual for future reference.
-
Page 2: Electrical Specifications
FL-2331-LC Holding Cabinet Rev. 11 (4/14) Page 2 of 9 5925 Heisley Road • Mentor, OH 44060-1833 INSTALLATION & OPERATION INSTRUCTIONS ELECTRICAL SPECIFICATIONS: Model No. Volts Watts Amps Hertz Phase NEMA H138NPS36CLCMQRL 2000 16.6 L5-20P POWER SWITCH TEMPERATURE CONTROL POWER LIGHT °F ADJUST HOW TO HOLD:... -
Page 3: Maintenance Instructions
FL-2331-LC Holding Cabinet Rev. 11 (4/14) Page 3 of 9 5925 Heisley Road • Mentor, OH 44060-1833 MAINTENANCE INSTRUCTIONS Cleaning hints: WARNING 1. Wipe up spills as soon as possible. 2. Clean cabinet daily to avoid heavy dirt build-up. BEFORE cleaning the cabinet: 3. - Page 4 FL-2331-LC Holding Cabinet Rev. 11 (4/14) Page 4 of 9 5925 Heisley Road • Mentor, OH 44060-1833 MAINTENANCE INSTRUCTIONS HOW TO REVERSE THE DOUBLE DOOR OPENING: 1. Open the door 180°, lift it up and off. Lay it down with the outside up. 2.
-
Page 5: Door Adjustment
FL-2331-LC Holding Cabinet Rev. 11 (4/14) Page 5 of 9 5925 Heisley Road • Mentor, OH 44060-1833 MAINTENANCE INSTRUCTIONS DOOR ADJUSTMENT: Door latches and hinges sometimes loosen and/or need adjustment after a period of time. Gaps between the door and the cabinet will cause heat loss. Test the door to see if it closes properly: a) Close the door onto part of a piece of paper and try to pull it out. - Page 6 FL-2331-LC Holding Cabinet Rev. 11 (4/14) Page 6 of 9 5925 Heisley Road • Mentor, OH 44060-1833 MAINTENANCE INSTRUCTIONS TROUBLE-SHOOTING GUIDE How to adjust/tighten the double door hinges: 1. Open the door 180°, lift it up and off. Lay it down with the outside up.
-
Page 7: Replacement Parts
FL-2331-LC Holding Cabinet Rev. 11 (4/14) Page 7 of 9 5925 Heisley Road • Mentor, OH 44060-1833 REPLACEMENT PARTS Include all information on nameplate when ordering parts ITEM DESCRIPTION 120V 1 Blower Kit 0769-180-01-ALK 2 Heater Kit, Air 1850 Watt 0811-022-K 3 High Limit 0848-060... - Page 8 FL-2331-LC Holding Cabinet Rev. 11 (4/14) Page 8 of 9 5925 Heisley Road • Mentor, OH 44060-1833 REPLACEMENT PARTS Include all information on nameplate when ordering parts CABINET REPLACEMENT PARTS: Item Description Part No. Item Description Part No. Caster 0569-306-K Door, front, window 1221-610-LCK Caster with brake...
-
Page 9: Wiring Diagram
FL-2331-LC Holding Cabinet Rev. 11 (4/14) Page 9 of 9 5925 Heisley Road • Mentor, OH 44060-1833 WIRING DIAGRAM WHITE BLACK WHITE BLACK...
