Summary of Contents for Joerns HPL400

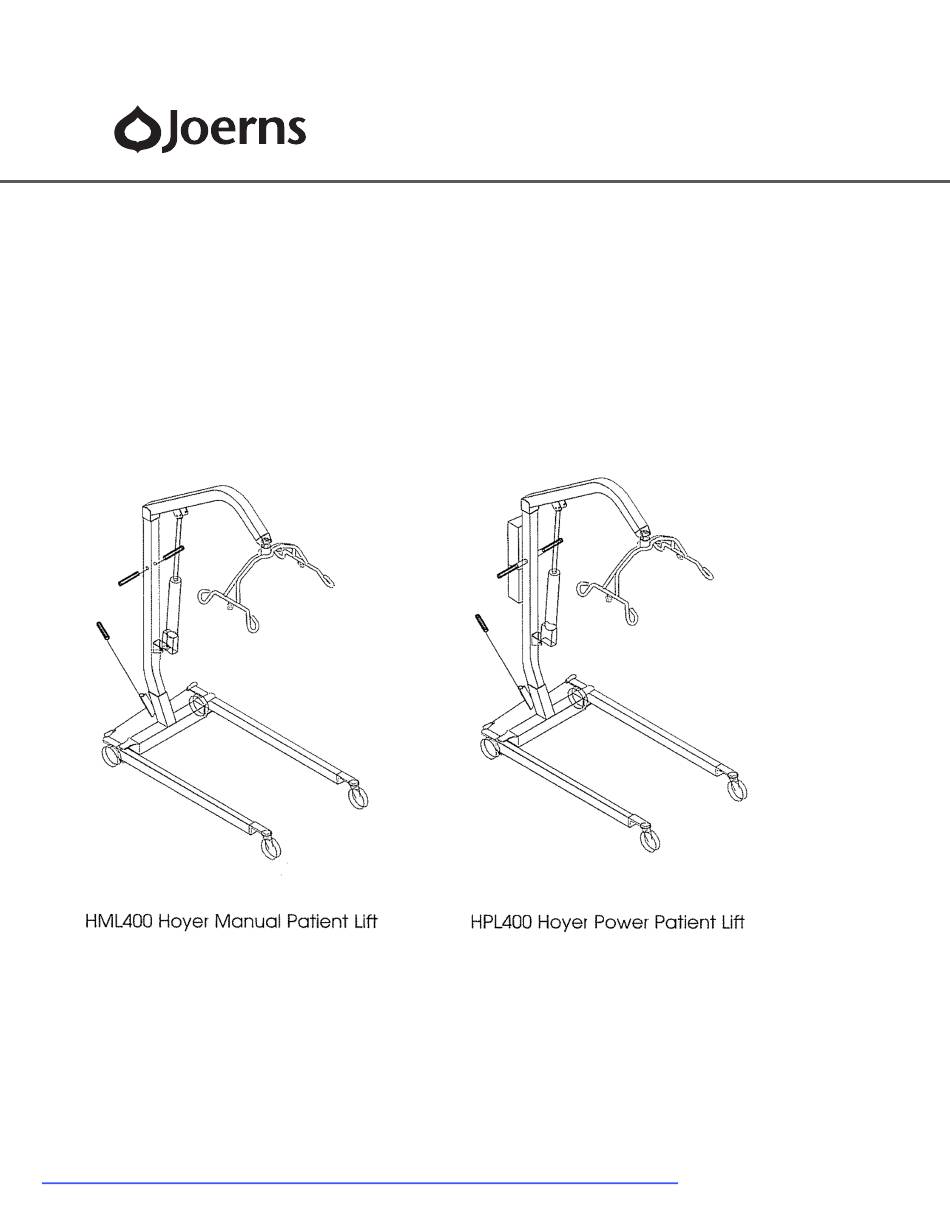

- Page 1 User Manual Joerns® Lifting and Repositioning HPL400 and HML400 Hoyer Patient Lift To avoid injury, read user’s manual before using. redefining patient handling Click here to view detailed product information and pricing. Call 800-397-5899 to order today!
- Page 2 To unlock brake, step on highest center may wear prematurely. Warn cradle parts cam lever. could fail, resulting in injury to resident/caregiver. Hanger post should protrude cradle center by 1/16th inch (Figure 1). © 2014 Joerns Healthcare • 000-3258 RevE • 14-2632...
- Page 3 Shoulder Bolt Boom Thrust Washer Lock Nut Attachment Points Hanger Post Cradle Actuator (Power Unit) Adjustment Level Control Box Battery Pack Caster (Wheel) Mast Base Spreader Lock Mast Lock Bolt Figure 2 © 2014 Joerns Healthcare • 000-3258 RevE • 14-2632...
- Page 4 Chair (20 inch wide) access ..............25 inches (CSP horizontal to center tube) Mist powder coat finish Brake on one rear caster The following features are found on the HPL400 Power Unit: • Battery: 2-12V Rechargeable Sealed • Charger Input 120V AC •...
- Page 5 3. DO NOT press down hard on handle when bottom of stroke is reached. Release Knob © 2014 Joerns Healthcare • 000-3258 RevE • 14-2632...
- Page 6 18 (46) 15 (38) 55-110 (25-50) *Patient’s weight to sling size information is an approximation only. Patient can be raised 4" higher by hooking up the inside strap to the cradle. © 2014 Joerns Healthcare • 000-3258 RevE • 14-2632...
- Page 7 Wheel and swivel bearings ✔ Cleaning* Use mild soap to clean; dry thoroughly. ✔ Apply auto or appliance wax ✔ Keep painted surfaces clean from oil ✔ Do not wash under water pressure. © 2014 Joerns Healthcare • 000-3258 RevE • 14-2632...
- Page 8 3. Electronic control box, hand pendant, and product which is found by Joerns Healthcare to be actuator (for power lifters). defective. The Hoyer battery is warranted for 90 days.
