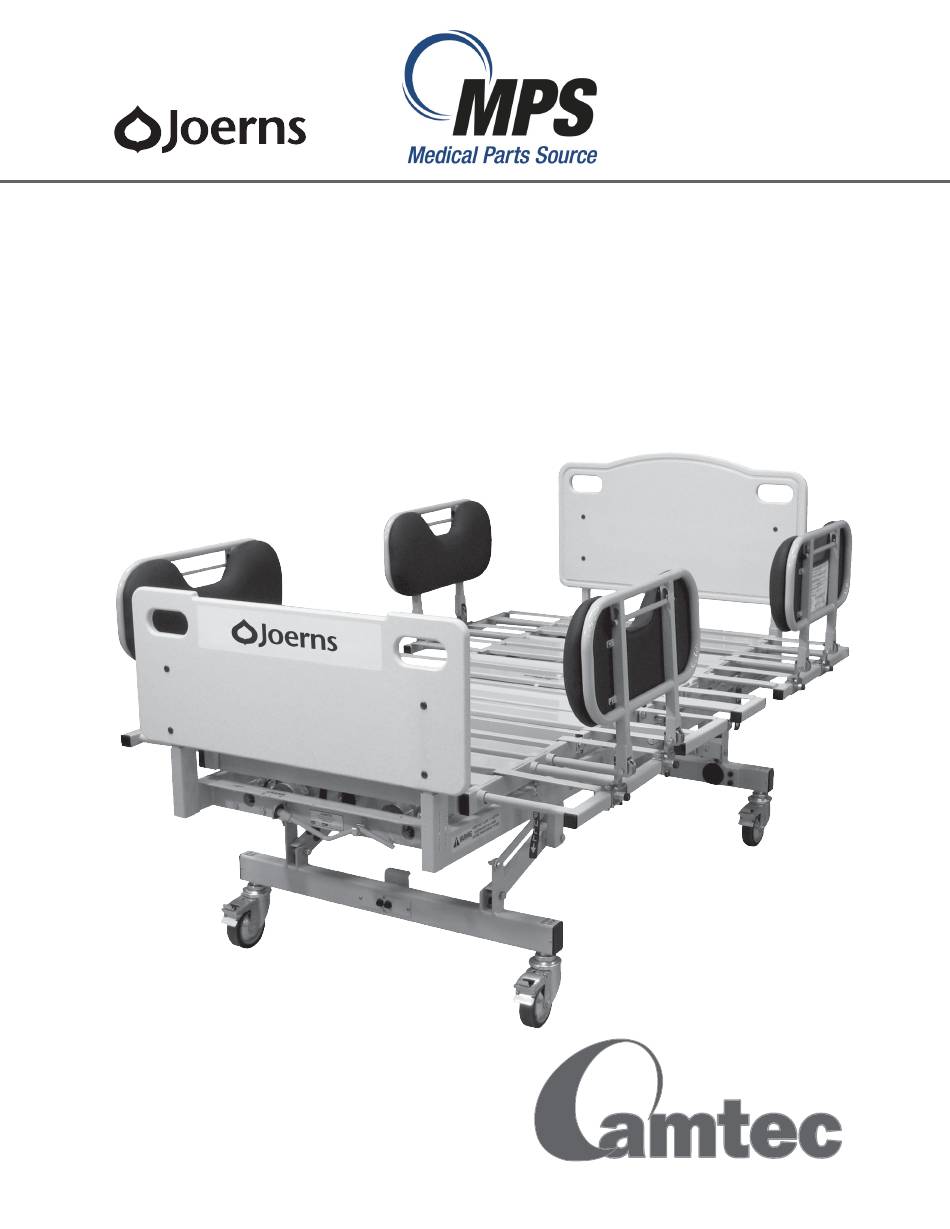

- Page 1 User-Service Manual Joerns Camtec Series Bed Frames ® RC 1000 Bed Expandable Split-frame Bariatric Bed Model RC1000 To avoid injury, read user’s manual before using. The Caregiver’s Choice...
-
Page 2: Important Precautions
Failure to do so the foot end should be in the steer position. Head end could result in injury. should be free to move. © 2016 Joerns Healthcare • 6110284 RevB • 16-2016... -
Page 3: Entrapment Information
Notice: Make sure the power cord is unplugged from the power outlet prior to disconnecting/connecting any That is why Joerns offers a wide array of compliance foot panel cables. Failure to ensure bed is not powered options. We assist customers in selecting compliant... -
Page 4: Table Of Contents
Warranty ............................26 Introduction The Joerns Camtec Series RC 1000 Bed has been designed primarily for use in hospitals and other institutions to support patients whose weight exceeds the limit of conventional beds and who may require special positioning. The frame has a long history as the Camtec model 4475-0 supporting care of some of the most challenging patients presented within the care continuum. -
Page 5: Specifications
Casters ........Diameter 5" ..Width 1¼" (3) total lock and (1) steer lock Tread Guards ... Non-marring Options ........Trapeze Mattress Foot Extension Side rails, foot end Pads or Composite Insert for Side Rails Integrated Scale © 2016 Joerns Healthcare • 6110284 RevB • 16-2016... -
Page 6: Assembly
13. Install the headboard posts in the inward most sockets provided at the head end with the board closest to the mattress. The power cord hanger should be on the side away from the mattress. Figure 1 © 2016 Joerns Healthcare • 6110284 RevB • 16-2016... -
Page 7: Operation
Never lock casters at both ends at the same time, when raising or lowering the bed, as permanent damage to the bed may result. All casters should be locked during ingress or egress of patient. © 2016 Joerns Healthcare • 6110284 RevB • 16-2016... -
Page 8: Cleaning And Maintenance
1. Using standard cleaning procedures, wipe down the frame of the bed. Be sure to wear appropriate protection for the type of materials being used. 2. Use cleaning detergents sparingly around the pendant controller, electronic controller and the motors. © 2016 Joerns Healthcare • 6110284 RevB • 16-2016... -
Page 9: Troubleshooting
CONTINUED USE OF THE BED. Joerns Healthcare Technical Support can provide additional assistance to repair or troubleshoot any problems. Major service and repair must only be performed by authorized Joerns Healthcare Technical Support, which you may contact at 800.966.6662. Troubleshooting... -
Page 10: Customer Maintenance Checklist
21 Check the Top Expansion (If Applicable) of the Mattress during operation at: Head Section Right ________ Left ________ Center Section Right ________ Left ________ Upper Knee Gatch Right ________ Left ________ Lower Knee Gatch Right ________ Left ________ © 2016 Joerns Healthcare • 6110284 RevB • 16-2016... - Page 11 24 If bed is a Scale Bed, check that the scale functions are operating properly (if applicable) 25 Check that all scale/exit alarm connections are secure (if applicable) 26 Test bed exit alarm (if applicable) Comments Inspector Signature_______________________________________________ Date_________________________ © 2016 Joerns Healthcare • 6110284 RevB • 16-2016...
- Page 12 Joerns® Camtec Series Bed Frames RC 1000 Bed Appendix A - Wiring Diagram © 2016 Joerns Healthcare • 6110284 RevB • 16-2016...
- Page 13 Joerns® Camtec Series Bed Frames RC 1000 Bed Appendix A - Scale System Assembly © 2016 Joerns Healthcare • 6110284 RevB • 16-2016...
- Page 14 Joerns® Camtec Series Bed Frames RC 1000 Bed Appendix A - Main Frame Assembly © 2016 Joerns Healthcare • 6110284 RevB • 16-2016...
- Page 15 Joerns® Camtec Series Bed Frames RC 1000 Bed Appendix A - Mattress Support Assembly © 2016 Joerns Healthcare • 6110284 RevB • 16-2016...
- Page 16 Joerns® Camtec Series Bed Frames RC 1000 Bed Appendix A - Caster Base Assembly © 2016 Joerns Healthcare • 6110284 RevB • 16-2016...
- Page 17 Joerns® Camtec Series Bed Frames RC 1000 Bed Appendix A - Label Location © 2016 Joerns Healthcare • 6110284 RevB • 16-2016...
- Page 18 Joerns® Camtec Series Bed Frames RC 1000 Bed Appendix A - Labels Used on Bed © 2016 Joerns Healthcare • 6110284 RevB • 16-2016...
- Page 19 Screw #10-32 x ¼ Pan Head Phillips SS 903152-0 Bushing, ⅝ x 1⅛ 903810-0 Cable, Knee Gatch Motor, Split to Controller 904179-0 Cordset 903180-0 Cable Clamp, 5/16 Nylon 203060-0GY Weldment, Lower Knee Gatch 203057-0GY Weldment, Upper Knee Gatch © 2016 Joerns Healthcare • 6110284 RevB • 16-2016...
- Page 20 Bushing, ½" x ⅝" x ⅞" LG 903155-0 Bolt, Hex, ½-13 x 2½" 104575-0GY Leg Connector Link 901237-0 Cap 2" x 3" 901233-0 Shoulder Bolt, Load Cell ½" DIA 1.250" Long © 2016 Joerns Healthcare • 6110284 RevB • 16-2016...
- Page 21 903491-0 Label, Trapeze Socket 903500-0 Label, Pendant Cord Hanger 903502-0 Label, Warning Keep Feet 903505-0 Label, In Case of Power Failure 903507-0 Label, 2" Gap 903503-0 Label, Caster Cap, Total Lock © 2016 Joerns Healthcare • 6110284 RevB • 16-2016...
- Page 22 Head Board Assembly, Plastic 12470022 TIP, ¼" Rod, Caplug (Old Part Number: 900100-0) 903605-0 Washer, Rubber, ½" Screw Size 300660-0 Assembly, Mattress Support, Mid Section 904072-0 Bolt, Hex ⅜-16 x ⅝" LG. © 2016 Joerns Healthcare • 6110284 RevB • 16-2016...
-
Page 23: Accessories: Scale Instructions
WEIGHT MODE allowing you to view the patient’s total weight again. Note: When you rest the system zero, the WEIGHT CHANGE MODE will also be reset to zero. © 2016 Joerns Healthcare • 6110284 RevB • 16-2016... - Page 24 If you make a mistake, press “ON” to about your changes. Important: If you do not know the correct patient weight, you must remove the patient from the bed and re-zero the system. © 2016 Joerns Healthcare • 6110284 RevB • 16-2016...
- Page 25 The readout and transducer for the 1228 Scale System are made of aluminum and steel with a painted surface. You need only exercise caution when cleaning the display window as this is made of clear polyester. We recommend mild soap and water for general cleaning. © 2016 Joerns Healthcare • 6110284 RevB • 16-2016...
-
Page 26: Warranty
Most parts requested can be shipped next day air at the customer’s expense. Any alteration, modification, or repair unless performed by or authorized in writing by Joerns Healthcare, will Should a technician be required, one will be provided void this warranty.
