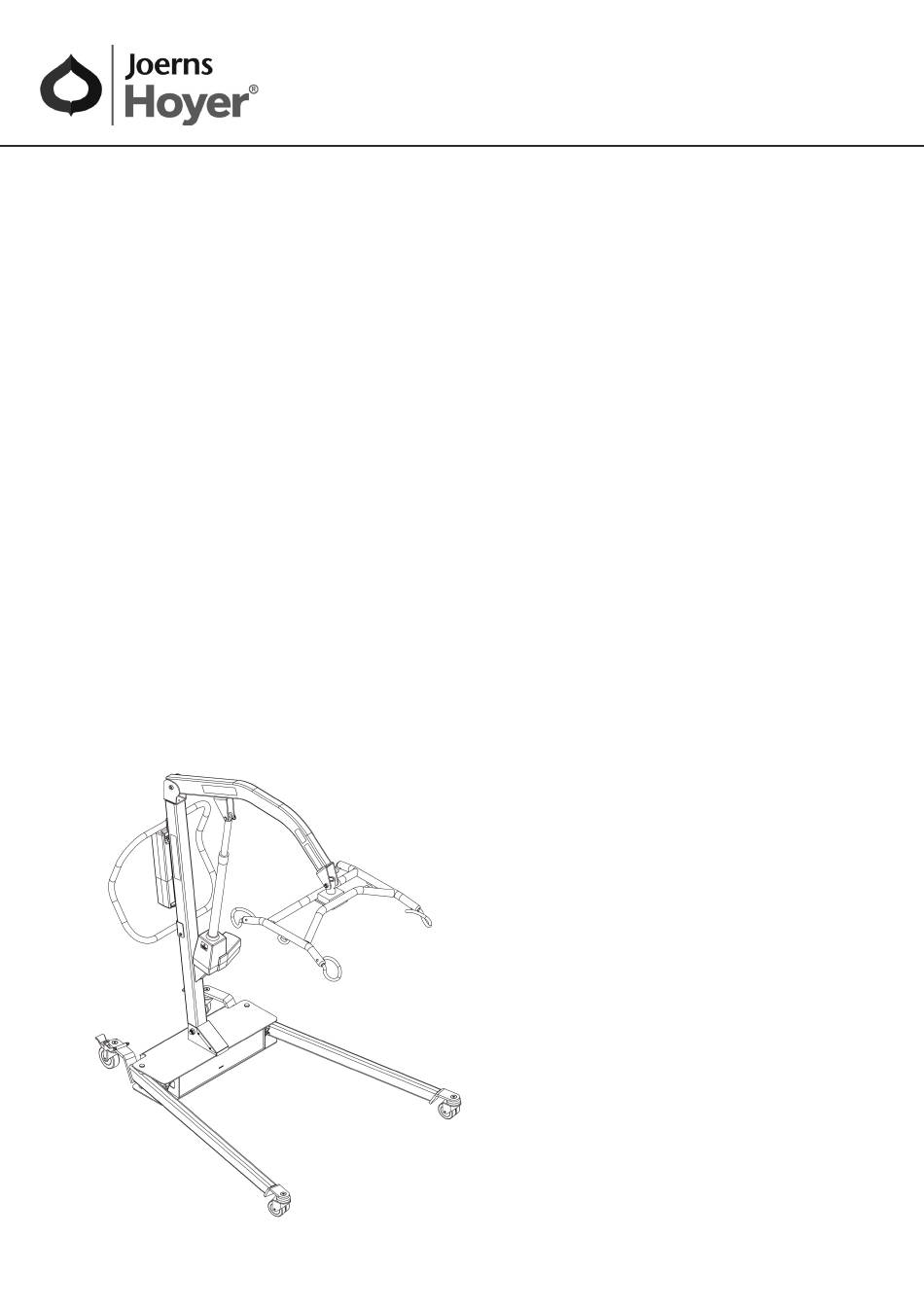

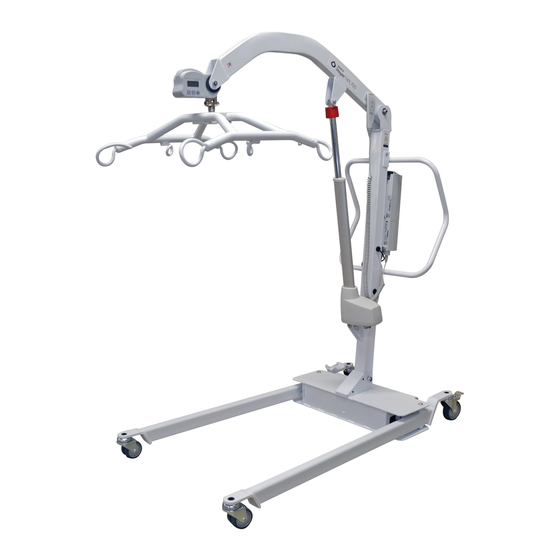

- Page 1 Service - Parts Manual Hoyer HPL700 ®...
- Page 2 Hoyer ® HPL700 PART NUMBER DESCRIPTION 39001076 Rear Caster 39001077WH WHITE Straight-line Caster Guide 39001077AL BEIGE Straight-line Caster Guide 39001078 Front Caster 39001079WH WHITE Mast Assembly 39001079AL BEIGE Mast Assembly 39001080WH WHITE Boom Assembly 39001080AL BEIGE Boom Assembly 39001081WH WHITE Push Handle Assembly 39001081AL BEIGE Push Handle Assembly 39001100...
- Page 3 Hoyer ® HPL700...
-
Page 4: Service And Maintenance
Remove lift from service until required repairs are complete. Note: Joerns Healthcare recommends that nyloc nuts be replaced once removed. Spreader Bar 1. The spreader bar assembly is attached to the boom using a security pin that is housed in a steel outer sleeve. - Page 5 Hoyer ® HPL700 Boom / Mast 1. Examine the shoulder bolt and nut that attaches the boom to the mast pivot. Ensure that both are fully tightened. 2. Inspect the pivot attachment area of the mast and boom. The bushings located at the pivot point in the boom will need to be replaced if cracked or showing signs of excessive wearing.
- Page 6 Hoyer ® HPL700 Mast/Handle 1. Inspect the handle fasteners at the mast. Ensure that all fasteners are secure and in place. 2. Tighten any fasteners that are loose with a T27 Torx driver. Battery Pack and Control Box 1. Remove the battery pack and control box from the bracket. The control box is held in place by one (1) screw mounted to the metal bracket.
- Page 7 Hoyer ® HPL700 2. Inspect the pivot points of the legs at the base. Ensure that there is not excessive wear of the holes or pins at the top of the base. 3. With assistance tip the lift to one side laying it on the ground. Inspect the cotter pin connections for security.
-
Page 8: Warranty
Joerns Healthcare Product Service Department. Most parts requested can be shipped next day air at the customer’s expense. Should a technician be required, one will be provided by Joerns Healthcare, at our discretion. Only the Joerns Healthcare Product Service Department can dispatch authorized technicians. - Page 9 Hoyer ® HPL700...
- Page 10 Hoyer ® HPL700...
- Page 11 Hoyer ® HPL700...
- Page 12 Joerns Healthcare Inc. 2100 Design Road Arlington, TX 76014 (T) 800-826-0270 • (F) 800-457-8827 6120049 Rev E • DCO19-2506 www.joerns.com • email: info@joerns.com © 2020, Joerns Healthcare. All rights reserved.
