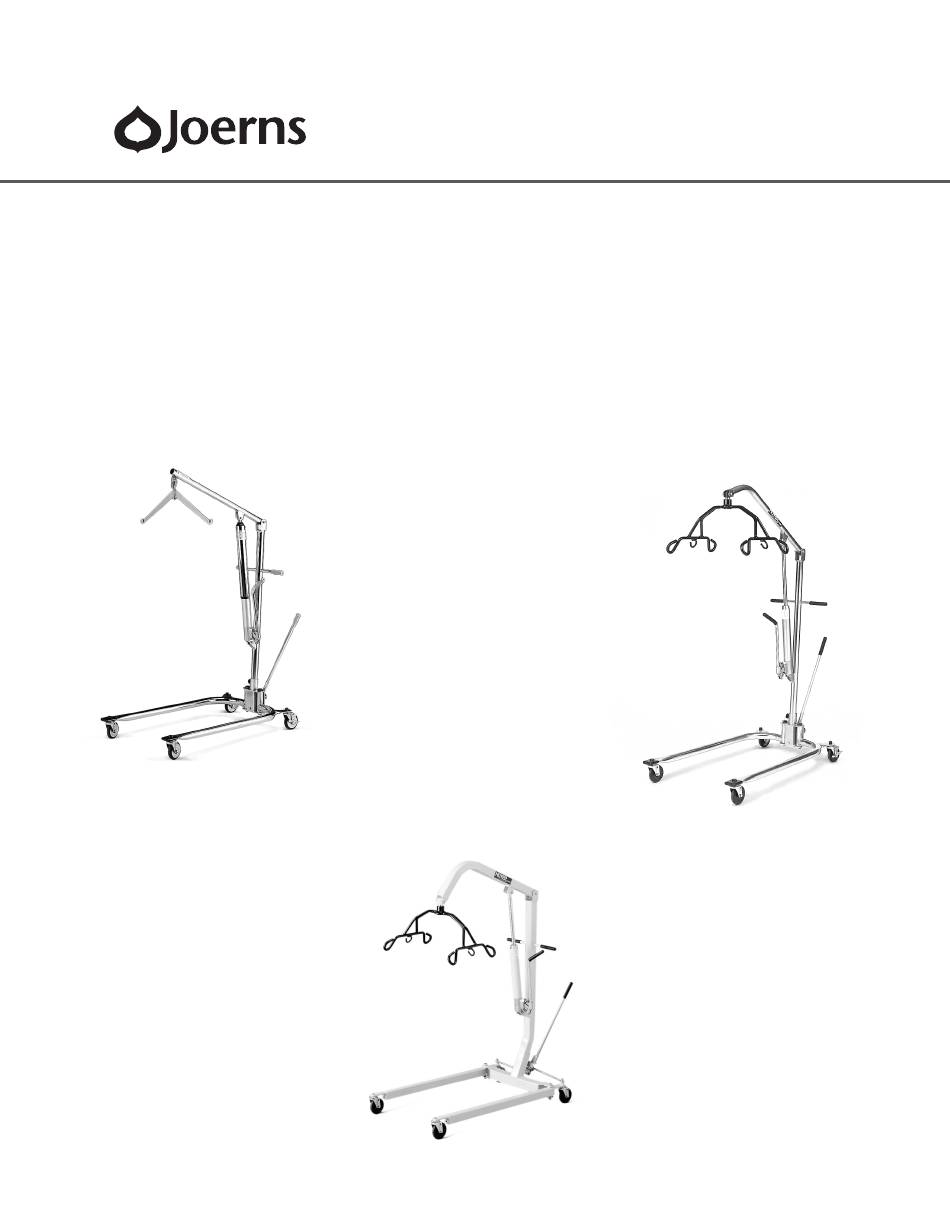

- Page 1 User-Service Manual Joerns® Lifting and Repositioning Model HML400, C-HLA, C-HLA-2, C-HLA-2T To avoid injury, read user’s manual before using. C-HLA C-HLA-2 HML400...
-
Page 2: Important Precautions
Warning: Hoyer floor lifts are intended to be used for persons within the specified weight limit indicated for the lift. Do not attempt to lift more than the weight limit indicated. © 2015 Joerns Healthcare • IM-459001 RevC • 15-2003... - Page 3 Warning: Do not push a loaded lift at speeds which exceed a slow walking pace (2.6 ft/sec.). Warning: Inspect all precautionary labels on the equipment. Order and replace all labels that cannot be easily read. © 2015 Joerns Healthcare • IM-459001 RevC • 15-2003...
-
Page 4: Table Of Contents
C-HLA ..............41" C-HLA-2..............41" C-HLA-2T .............41" HML400 ..............43" C-CB-L2..............39" Base Clearance C-HLA ..............5.5" C-HLA-2...............5.5" C-HLA-2T ............5.5" HML400 .............5.25" C-CB-L2...............4.5" Finish C-HLA ............Chrome C-HLA-2............Chrome C-HLA-2T ............. Chrome HML400 ............... Tan C-CB-L2............Chrome © 2015 Joerns Healthcare • IM-459001 RevC • 15-2003... -
Page 5: Assembly
Check carefully to Figure 3 be certain mast cannot rotate. HML400: Insert mast in base and tighten bolt. 3. Make certain boom points in same direction as base legs. Thread mast safety lock and stud into threaded hole in mast sleeve. - Page 6 Worn cradle parts could fail, resulting in injury to resident/caregiver. Hanger post should protrude cradle center by 1/16th inch. Figure 7 Figure 5 Figure 8 © 2015 Joerns Healthcare • IM-459001 RevC • 15-2003...
-
Page 7: Inspection Of Hydraulic Pump Stud
Caution: The pump should rotate freely prior to lifting a patient. Caution: Place the pump handle in a comfortable position prior to lifting a patient. Do not attempt to rotate the pump while lifting a patient. © 2015 Joerns Healthcare • IM-459001 RevC • 15-2003... -
Page 8: Operation
Wheel locks are provided for parking. To lock casters, step on cam lever on side of casters. To unlock, step on highest cam lever. Figure 12 Figure 10 Figure 13 © 2015 Joerns Healthcare • IM-459001 RevC • 15-2003... -
Page 9: Leg Spreader Operation
(Figure 14). Handle can be moved to the right to widen the base (Figure 15) or to the left to Figure 15 narrow the base (Figure 16). Figure 14 Figure 16 © 2015 Joerns Healthcare • IM-459001 RevC • 15-2003... -
Page 10: Lifter Maintenance Checklist
Check metal parts, nuts and bolts for wear, damage or loosening ✔ ✔ Check all nuts, bolts and screws for wear and tightness ✔ Check slings and web straps for wear or damage ✔ © 2015 Joerns Healthcare • IM-459001 RevC • 15-2003... -
Page 11: Troubleshooting
Jack is noticeably loose • Refer to “Inspection of Hydraulic Pump Stud” section to tighten the mounting stud for in the mounting bracket the jack. located at the base of the jack. © 2015 Joerns Healthcare • IM-459001 RevC • 15-2003... -
Page 12: Warranty
+44 (0)844 811 1156 +31 (0)30 6363799 Charlotte, NC 28273 (P) 800.966.6662 (P) 866.546.1151 +44 (0)844 811 1157 (P) 800.826.0270 (F) 800.232.9796 (F) 519.451.8662 (F) 800.457.8827 www.Joerns.com • www.RecoverCare.com email: info@joerns.com © 2015 Joerns Healthcare • IM-459001 RevC • 15-2003...
