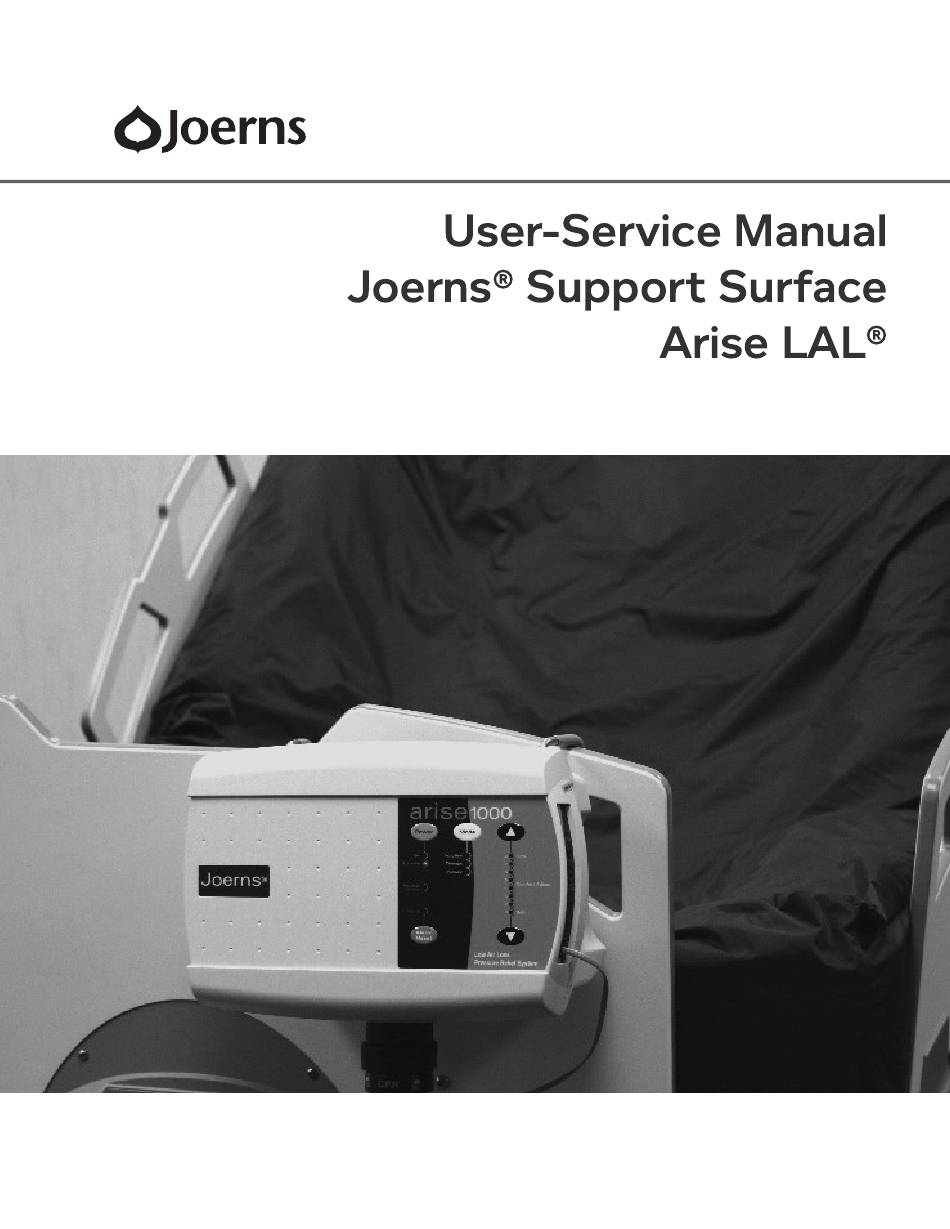

- Page 1 Electronic Copy: Reference Only To avoid injury, read user’s manual before using. Notice: Document considered current at time of printing. Verify revision before use.
- Page 2 Danger: To reduce the risk of shock, adhere to the manual and contacting Joerns if anything in following instructions. Failure to do so could result in this manual is unclear. Joerns will not be held personal injury or equipment damage. responsible for any injuries resulting from failure to comply with the instructions and precautions in 1.
- Page 3 10. Do not attempt to service the control unit. Please call Joerns Healthcare for any service requests. That’s why Joerns offers a wide array of 11. The therapy pad (top cover) of this product is compliance options. We assist customers in...
- Page 4 Electronic Copy: Reference Only Important Precautions ..........................2 Introduction ..............................5 Pressure Relief Moisture Control Shear and Friction Reduction Indications for use ............................6 Pressure Relief Pain Management Features............................... 6-8 Therapy Control Unit Features Therapy Mattress System Features Therapy Pads Grounding Instructions ..........................
- Page 5 Electronic Copy: Reference Only The Arise LAL is divided into three distinct The Arise LAL , provided by Joerns Healthcare, is a ® anatomical zones: head, seat, and foot. Each zone unique therapy system that provides pressure relief is adjusted to ensure optimal pressure relief and by combining low air loss with pulsation.
- Page 6 Electronic Copy: Reference Only Note: The selection of a pressure-relieving The Arise LAL is comprised of two components: surface needs to be based on each individual patient’s clinical condition, diagnosis and/or Therapy control unit co-morbidities. The choice and use of a support Therapy mattress system surface is one factor in a holistic program of wound care and treatment.
- Page 7 Integrated low-pressure heel section provides of the 6” wide side bolsters (left and right) lower interface pressures when used in combination with the Joerns Durable base tub is constructed from 100% Bari10A bed (36, 42 or 48 inches wide) heavy weight 1680 denier nylon with a 1.5 allows for close-in nursing procedures that oz.
- Page 8 Electronic Copy: Reference Only Many healthcare facilities are facing the challenge of infection control. Joerns’ quilted therapy pads Most hardware stores sell circuit testers are treated with an antimicrobial to protect the (Figure 1) that can be used to test an therapy pad from the growth of mold, mildew outlet for proper grounding.
- Page 9 Electronic Copy: Reference Only 4. Sequentially reduce the Comfort Adjust setting If the therapy pad is not already on the overlay, attach it securely using the zippers. Hang the control unit on the foot of the bed minimal resistance between the patient’s facing away from the bed.
- Page 10 Electronic Copy: Reference Only Remove the existing mattress from the bed. Place the Arise LAL 1000 EX mattress with the hose connection at the foot end of the bed and the therapy cells facing up. Secure the eight (8) straps on the mattress securely to the loops provided on the Bari10A bed frame.
-
Page 11: Standby Light
Electronic Copy: Reference Only Warning: For important precautions please see page two. Caution: The patient’s head should be positioned in the center of the top section of the mattress. When using the mattress system always ensure that the the bed. Do not let any extremities protrude over the side or between the bed rails when the mattress is being used. - Page 12 Electronic Copy: Reference Only Power Interruption (Brown out) In the event of a brief power interruption, up to twenty (20) minutes, the Arise LAL control unit Warning: will automatically restart and reset to the previous This product is suitable for use with oxygen Comfort Adjust settings.
- Page 13 Electronic Copy: Reference Only A bilateral side air bolster solution which can enhance your facilities entrapment/risk management program. Easy to engage Ready Valve Special linens are not necessary for the Arise . While there is no need for a bottom sheet ®...
- Page 14 Electronic Copy: Reference Only Elevating Patient into Sitting Position The special properties of the Arise LAL therapy pad reduce the opportunity for shear and friction that may occur when raising the head To minimize the risks of falls or injury the patient of other beds.
- Page 15 2. Prepare detergent/disinfectant (registered by Warning: Only facility-authorized personnel trained EPA as hospital disinfectant) solution according by Joerns Healthcare should perform preventative to instructions on label for correct use-dilution. maintenance. Preventative maintenance performed by unauthorized personnel could result in personal injury or equipment damage.
-
Page 16: Control Unit
Electronic Copy: Reference Only 120V AC, 60 Hz, 4A, less than 1A running Control unit: ......10 lbs. (4.5 Kg) Mattress: ......24.5 lbs. (10 Kg) Overlay: .......13.5 lbs. (6 Kg) Operating Conditions Ambient Temperature: +10ºC to +40ºC Relative Humidity: 30% to 75% Non-Condensing Arise LAL Mattress: .....500 lbs. - Page 17 Electronic Copy: Reference Only Notice: Document considered current at time of printing. Verify revision before use.
- Page 18 Damages arising from improper use will not be replacement parts, servicing or replacing, at its covered by this warranty. option, any product which is found by Joerns Healthcare to be defective. caused by: When requested by Joerns Healthcare, parts Burns must be returned for inspection at the customer’s...
