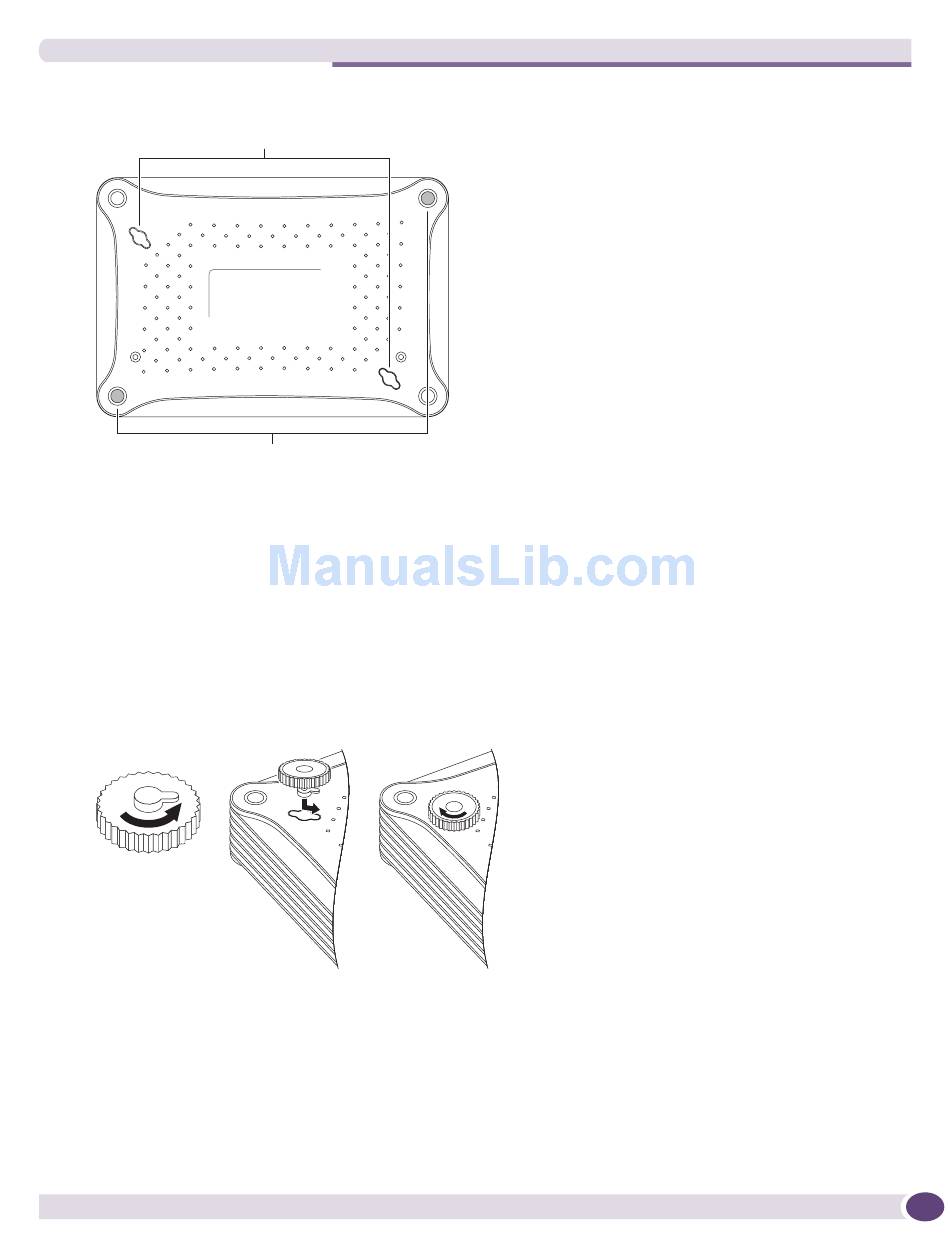

Figure 2: Magnet Slots on the ReachNXT 100-8t Bottom Panel
Magnet slots
Rubber pad
positions
To use the magnet mounting kit:
1 If the ReachNXT 100-8t will be mounted on a non-metallic surface, attach the mounting plate to the
installation location, using the supplied screws and anchors.
2 Attach the magnets to the bottom panel of the ReachNXT 100-8t, as follows:
a On each magnet, twist the mounting tab counter-clockwise two full turns (see
a Insert the tab on the magnet into a magnet slot on the ReachNXT 100-8t. and slide the magnet in
the direction of the narrow end of the tab.
b Turn the magnet clockwise until it is finger tight to secure it to the ReachNXT 100-8t.
Figure 3: Attaching Magnets
3 After the magnets are installed, attach a rubber stabilizing pad at each corner where a magnet is not
installed.
4 Set the ReachNXT 100-8t in the installation location, with the magnets touching either the metallic
surface or the mounting plate.
To remove the ReachNXT 100-8t from its installed location, slide the unit off the plate or other metallic
surface. Do not pull the unit away from the plate.
™
