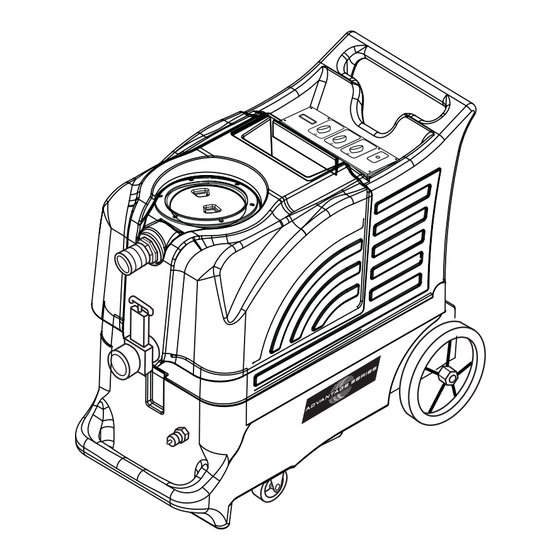

ADVANTAGE-200H
EXTRACTOR
120V
INFORMATION
&
OPERATING
INSTRUCTIONS
CAUTION: DO NOT OPERATE MACHINE UNTIL YOU HAVE READ
ALL SECTIONS OF THIS INSTRUCTION MANUAL
IMPROPER USE OF THE MACHINE WILL VOID THE WARRANTY
1. Always use a defoamer when foaming occurs to prevent vacuum motor damage.
2. Connect the machine to a properly grounded outlet, only.
3. Keep machine from rain and snow, extremes in temperatures, and store in a heated
location. Use the machine indoors. Do not use outdoors.
4. Use approved chemicals only. NO SOLVENTS.
5. Wear gloves or use rags when removing quick disconnects to prevent burns.
6. Never use water above 130º F/54º C in the solution tank.
2-15-2010
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADVANTAGE-200H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for U.S. Products ADVANTAGE-200H

Summary of Contents for U.S. Products ADVANTAGE-200H

  • Page 1 ADVANTAGE-200H EXTRACTOR 120V INFORMATION & OPERATING INSTRUCTIONS CAUTION: DO NOT OPERATE MACHINE UNTIL YOU HAVE READ ALL SECTIONS OF THIS INSTRUCTION MANUAL IMPROPER USE OF THE MACHINE WILL VOID THE WARRANTY 1. Always use a defoamer when foaming occurs to prevent vacuum motor damage.

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS This machine is only suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and offi ces other than normal residential housekeeping purposes. When using any electrical appliance, basic precautions should always be followed, including the following: NOTE: Read all instructions before using this machine.

  • Page 3: Cleaning Solutions

    INSPECTION: Carefully unpack and inspect your ADVANTAGE-200H for shipping damage. Each machine is tested and inspected before shipping. Any shipping damage incurred is the responsibility of the carrier. You should notify the carrier immediately if you notice damage to the box or to the machine or parts.

  • Page 4: Your Machine

    SWITCH PLATE MODEL (1): This identifi es the model of your Advantage machine. MODEL VACUUM SWITCH (2): This push-button switch turns on the vacuum. The switch will illuminate when it is on. PUMP SWITCH (3): The pump switch will illuminate when it is activated, and it will turn on the pump. HEAT SWITCH (4): The heat switch will illuminate when it is activated and will turn on the heater.
  • Page 5 SET-UP & OPERATION: 1. Inspect the machine, hoses, and cleaning tools for cleanliness and completeness. 2. Screw the lid on the recovery tank. Close the drain gate. 3. Fill the holding tank with clear water. NOTE: although this machine is designed to supply instant hot water, the addition of warm water to the solution tank would increase heater effi...

  • Page 7: Part List

    ADVANTAGE-200H PART LIST 120V ITEM PART No DESCRIPTION ITEM PART No DESCRIPTION Drain Gate 207A Filter, pump inlet 187B Gasket Nipple O-ring 2175 Lid, Solution tank Nut, 1-1/2” Chain, 8” Hose Barb, vacuum inlet TKC-6 Solution tank 1074 Gasket Hose, pump inlet, 1/2” ID X 15”...

  • Page 8: Troubleshooting

    ADVANTAGE-200H TROUBLE SHOOTING: IF THIS OCCURS CHECK THIS Solution tank is empty, or fi lter is plugged up. NO SPRAY Clogged spray tip. Pump not running. Valve on wand not operating. Solution hose not completely connected to hose or to machine.
