HHP-300
EXTRACTOR
120V
INFORMATION
&
OPERATING
INSTRUCTIONS
DO NOT OPERATE MACHINE UNTIL YOU HAVE READ
ALL SECTIONS OF THIS INSTRUCTIONS
IMPROPER USE OF THE MACHINE WILL VOID THE WARRANTY
1. Always use a defoamer when foaming occurs to prevent vacuum motor damage.
2. Keep machine from rain and snow, extremes in temperatures, and store in a
heated location. Use the machine indoors. Do not use outdoors.
3. Do not let the pump run dry.
4. Use approved chemicals only. NO SOLVENTS.
5. Wear gloves or use rags when removing quick disconnects to prevent burns.
6. Never use water above 130º F/54º C in the solution tank.
4-2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HHP-300 and is the answer not in the manual?

Questions and answers

Greg Buckley
March 31, 2025

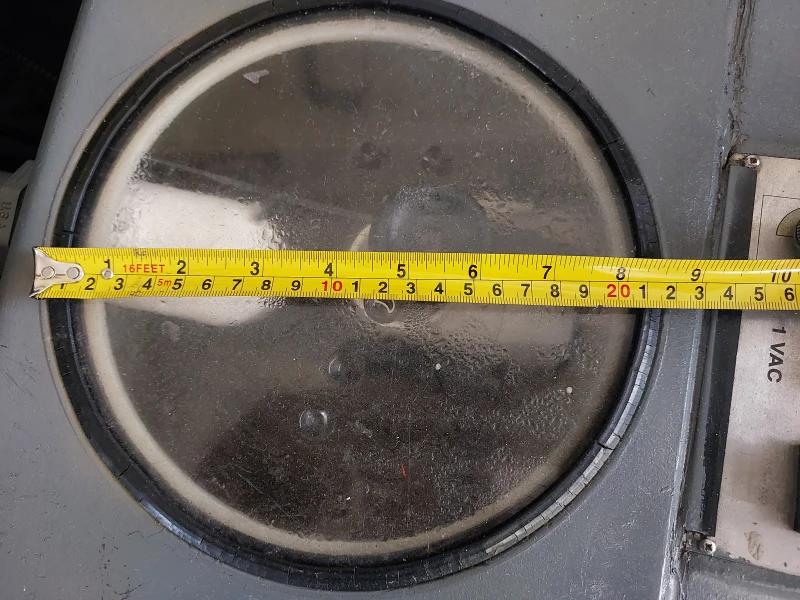

Hi can you supply 200h cobra dome & gasket, also filter for recovery tank, recovery tank empty valve

User image 67e9e19baec82
0

Subscribe to Our Youtube Channel

Related Manuals for U.S. Products HHP-300

Summary of Contents for U.S. Products HHP-300

  • Page 1 HHP-300 EXTRACTOR 120V INFORMATION & OPERATING INSTRUCTIONS DO NOT OPERATE MACHINE UNTIL YOU HAVE READ ALL SECTIONS OF THIS INSTRUCTIONS IMPROPER USE OF THE MACHINE WILL VOID THE WARRANTY 1. Always use a defoamer when foaming occurs to prevent vacuum motor damage.

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS This machine is only suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and offices other than normal residential housekeeping purposes. When using any electrical appliance, basic precautions should always be followed, including the following: NOTE: Read all instructions before using this machine.

  • Page 3: Parts And Service

    Call the distributor from whom you purchased this machine if you need parts and service. Be sure to specify the machine model. Have your serial number handy. Serial Number: __________________ Model: HHP-300 Purchase Date:_____________ Write the name and phone number of our distributor: _____________________________________...
  • Page 4 SWITCH PLATE: BYPASS PUMP MODE CIRCUIT LOCATOR PUMP DIAL (1): This dial controls motor speed and pump pressure. Adjust the dial clockwise to increase pressure and counterclockwise to decrease pressure or turn off pump. The pump runs off of cord #1. VACUUM SWITCH (2): This switch will illuminate when the vacuum motor is on.
  • Page 5 SET-UP and OPERATION: Fill the holding tank with clear water and the detergent of your choice. Mix well. Although this machine is designed to supply instant hot water, the addition of warm water to the holding tank would increase heater efficiency.

  • Page 7: Parts List

    HHP-300 120V PARTS LIST ITEM PART#DESCRIPTION ITEM PART#DESCRIPTION FP231 Drain Gate #59A Nipple, PVC, 1/2” n.p.t. Screw, Button Head, 10-32 x 5/8” Lid, Holding Tank Latch Hose Clamp O-Ring, Small #61A FP170 Hose, 1/2” x 18”, Pump Inlet 948B Motor (300 PSI Pump), DC Volt...

  • Page 8: Trouble Shooting

    TROUBLE SHOOTING: IF THIS OCCURS CHECK THIS Solution tank is empty. NO SPRAY Clogged spray tip. Pump not running or not primed. Valve on wand not operating. Check the brushes in the pump motor. Replace if necessary. PUMP DOES NOT RUN No power to pump.
