SOLUS-310
EXTRACTOR
120V
INFORMATION
&
OPERATING
INSTRUCTIONS
DO NOT OPERATE MACHINE UNTIL YOU HAVE READ
ALL SECTIONS OF THIS INSTRUCTIONS
IMPROPER USE OF THE MACHINE WILL VOID THE WARRANTY
1. Always use a defoamer when foaming occurs to prevent vacuum motor damage.
2. Keep machine from rain and snow, extremes in temperatures, and store in a
heated location. Use the machine indoors. DO NOT let the machine freeze.
3. Do not let the pump run dry.
4. Use approved chemicals only. NO SOLVENTS.
5. Wear gloves or use rags when removing quick disconnects to prevent burns.
6. Never use water above 130 ºF/54 ºC in the solution tank.
05.20.2008
1

Advertisement

Table of Contents
loading

Related Manuals for U.S. Products SOLUS-310

Summary of Contents for U.S. Products SOLUS-310

  • Page 1 SOLUS-310 EXTRACTOR 120V INFORMATION & OPERATING INSTRUCTIONS DO NOT OPERATE MACHINE UNTIL YOU HAVE READ ALL SECTIONS OF THIS INSTRUCTIONS IMPROPER USE OF THE MACHINE WILL VOID THE WARRANTY 1. Always use a defoamer when foaming occurs to prevent vacuum motor damage.

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS This machine is only suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and offices other than normal residential housekeeping purposes. When using any electrical appliance, basic precautions should always be followed, including the following: NOTE: Read all instructions before using this machine.

  • Page 3: Cleaning Solutions

    Once a month, minimum, run a flushing compound through the machine to break up any mineral or chemical build-up that may have formed. U.S. Products’ “X-1500” is recommended. The vacuum motor, pump motor, and the pump do not require any scheduled maintenance; however,...

  • Page 4: Know Your Machine

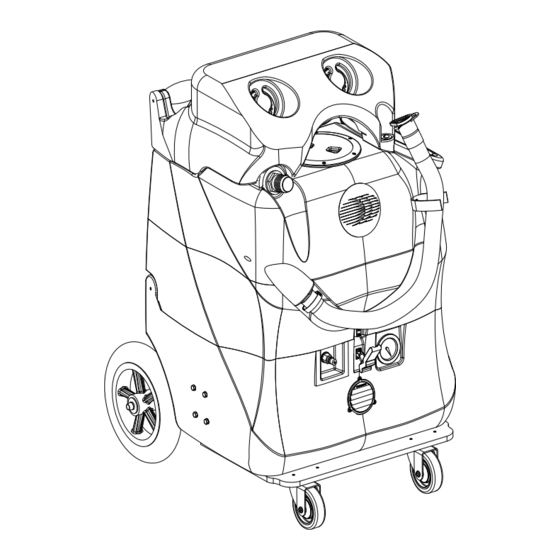

    KNOW YOUR MACHINE VACUUM LID - This lid provides access into your recovery tank so that you can clean the tank. The lid must be closed before you try to clean.. SOLUTION TANK FILL HOLE - This is where you fill the tank with water and cleaning solution. VACUUM HOSE BARB - This is where you connect your vacuum hose to the machine.

  • Page 5: Switch Plate

    VACUUM SWITCH (1): This switch will illuminate when the vacuum motors are on. The vacuum motors run off of cord #1 CIRCUIT LOCATOR (2): When this light is on, it indicates that cord #2 (Identified by the red “H” on the back of the extractor.) is on a separate line from cord #1.

  • Page 6: Bypass Switch

    SET-UP: 1. Fill the holding tank with clear water and prespray with the detergent of your choice (we recommend a CRI approved chemical). Mix well. Although this machine is designed to supply instant hot water, the addition of warm water to the holding tank would increase heater efficiency.

  • Page 7: Troubleshooting

    TROUBLE SHOOTING: IF THIS OCCURS CHECK THIS NO SPRAY Solution tank is empty. Clogged spray tip. Pump not running or not primed. Valve on wand not operating. Check the brushes in the pump motor. Replace if necessary. PUMP DOES NOT RUN No power to pump.

  • Page 8: Part List

    SOLUS-310 EXTRACTOR PART LIST 120V ITEM PART No DESCRIPTION ITEM PART No. DESCRIPTION Light, green indicator Hose Clamp FP312 Switch, SPDT 2060 Motor, AC, for pump FP311A Switch, SPST, with cover FP____ Pump complete, no mtr Light, red, indicator FP542...
  • Page 9 Pump to Heater Hose Bypass Hose Heater to Pump Outlet Hose Inlet SOLUS-310 Pump to Gauge Hose 05.20.2008...
  • Page 10 SOLUS-310 NOTES: 208-772-0573 800-257-7982 FAX: 208-772-0577 • • Coeur d’Alene, Idaho VISIT US AT: http://www.usproducts.com...
