OWNER'S MANUAL & OPERATING INSTRUCTIONS
2000 Max Watts / 1600 Rated Watts
PORTABLE INVERTER GENERATOR
MODEL NUMBER
73533i
10006 Santa Fe Springs Road
SAVE THESE INSTRUCTIONS
Santa Fe Springs CA 90670
Important Safety Instructions
USA / 1-877-338-0999
MADE IN CHINA
are included in this manual.
REV 73533i-20110721
www.championpowerequipment.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 73533i and is the answer not in the manual?

Questions and answers

Summary of Contents for Champion 73533i

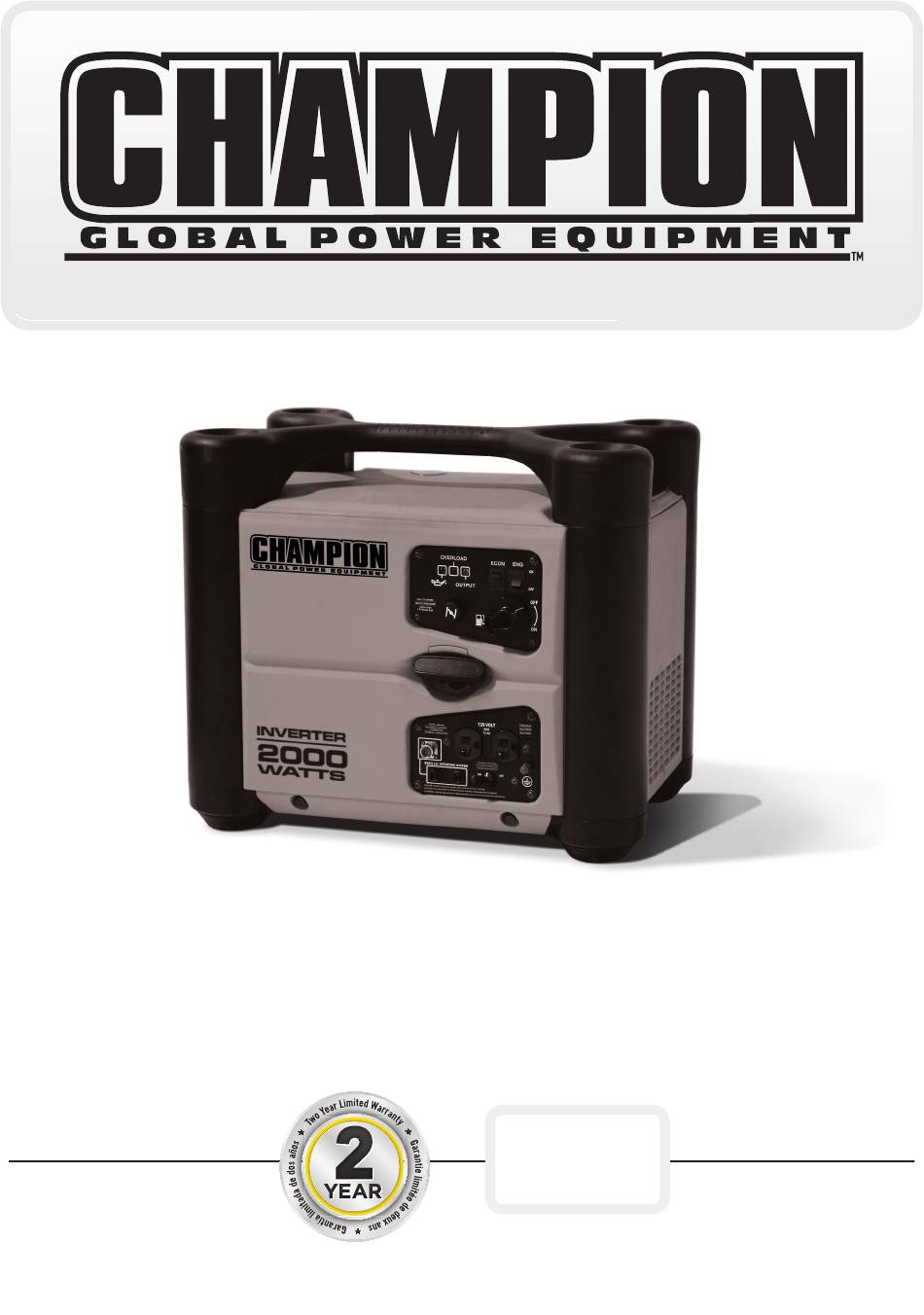

  • Page 1 2000 Max Watts / 1600 Rated Watts PORTABLE INVERTER GENERATOR MODEL NUMBER 73533i 10006 Santa Fe Springs Road SAVE THESE INSTRUCTIONS Santa Fe Springs CA 90670 Important Safety Instructions USA / 1-877-338-0999 MADE IN CHINA are included in this manual. REV 73533i-20110721 www.championpowerequipment.com...
  • Page 2 Have questions or need assistance? Do not return this product to the store! WE ARE HERE TO HELP! Visit our website: www.championpowerequipment.com for more info: • Product Info & Updates • Tech Bulletins • Frequently Asked Questions • Product Registration –...
  • Page 3: Table Of Contents

    73533i 2000 Max Watts / 1600 Rated Watts PORTABLE INVERTER GENERATOR TABLE Of CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . .
  • Page 4: Introduction

    ENGLISH INTROdUCTION Introduction Accessories Congratulations on your purchase of a Champion Power Champion Power Equipment manufactures and sells Equipment inverter generator . CPE designs and builds accessories designed to help you get the most from generators to strict specifications . With proper use and your purchase .
  • Page 5: Manual Conventions

    . Please call our help line at 1-877-338-0999 situation which, if not avoided, could result in death or serious injury . CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury . REV 73533i-20110721...
  • Page 6: Safety Rules

    Keep hands and feet away from rotating parts . combustible materials . Tie up long hair and remove jewelry . Operate equipment with guards in place . DO NOT wear loose-fitting clothing, dangling drawstrings or items that could become caught . REV 73533i-20110721...
  • Page 7 A spark arrestor may be required . The operator DO NOT use the generator if: should contact local fire agencies for laws or – Electrical output is lost regulations relating to fire prevention requirements . – Equipment sparks, smokes or emits flames – Equipment vibrates excessively REV 73533i-20110721...
  • Page 8: Controls And Features

    Fuel Lever Vent – Turn this valve to the “On” Maintenance Cover – Oil filler, Air filter, and position to supply air to the tank . Carburetor access . Fuel Cap – Remove to add fuel . Muffler Recoil Starter – Used to start the engine . REV 73533i-20110721...
  • Page 9: Power Panel

    . (12) Ground Terminal – Consult an electrician for local grounding regulations . * These outlets are used for connecting two Champion model 73533i generators for parallel operation . A Champion model 73500i parallel kit (optional equipment) is required for parallel operation .
  • Page 10: Assembly

    2 . Loosen the cover screw and remove the maintenance NOTE cover . Check oil often during the break-in period . Refer to the Maintenance section for recommended service intervals . 3 . Remove oil fill cap/dipstick to add oil . REV 73533i-20110721...
  • Page 11: Add Fuel

    DO NOT fill fuel tank indoors . DO NOT fill fuel tank when the engine is running or hot . DO NOT overfill the fuel tank . DO NOT light cigarettes or smoke when filling the fuel tank . REV 73533i-20110721...
  • Page 12: Operation

    . Carefully consider wind and air currents when positioning generator . 4 . Turn the fuel valve to the “On” position . 5 . Slide choke lever right to the “Choke” position . 6 . Turn the engine switch to the “On” position . REV 73533i-20110721...
  • Page 13: Economy Control Switch

    . When the economy switch is off, the engine runs at normal speed continuously . WARNING For periods of high electrical load or momentary fluctuations, the Economy Control Switch should be turned OFF . REV 73533i-20110721...
  • Page 14: Stopping The Engine

    5 . Turn the fuel cap lever vent to the “Off” position after operated in parallel to increase the total available the generator has cooled down completely . electrical power to 3200 watts . A Champion model do Not Overload Generator 73500i parallel kit (optional equipment) is required for parallel operation .
  • Page 15: Wattage Reference Chart

    Job Site Belt Sander 3” 1000 1500 Bench Grinder 6” 1500 Circular Saw 1500 1500 Compressor 1 1/2 HP 2500 2500 Edge Trimmer Hand Drill 1/2” 1000 1000 Lawn Mower 1200 1800 Paint Sprayer 1200 Table Saw 2000 2000 REV 73533i-20110721...
  • Page 16: Maintenance And Storage

    9 . Attach the spark plug cap to the plug . 5 . Reinstall the maintenance cover and tighten the 10 . Reinstall the spark plug access cap, and cover screws . maintenance cover . 6 . Dispose of used oil at an approved waste management facility . REV 73533i-20110721...
  • Page 17: Air Filter

    Use a damp cloth to clean exterior surfaces of the engine . degraded engine performance . Use a soft bristle brush to remove dirt and oil . Use an air compressor (25 PSI) to clear dirt and debris from the engine . REV 73533i-20110721...
  • Page 18: Adjustments

    . Contact our help line at 1-877-338-0999 to locate the Generator Storage nearest Champion Power Equipment certified service 1 . Allow the engine to cool completely before storage . dealer for your generator or engine maintenance needs .
  • Page 19: Specifications

    10% by volume . Use 10W-30 4-Cycle automotive oil . Oil capacity is 0 .42 qt (0 .4 L) . Please reference the following chart for recommended oil types for use in the generator . REV 73533i-20110721...
  • Page 20: Parts Diagram

    73533i ENGLISH SPECIfICATIONS Parts diagram REV 73533i-20110721...
  • Page 21: Parts List

    GB848 3 03 FLAT WASHER 3 GB5287 6 03 FLAT WASHER 6 GB859 3 03 SPRING WASHER 3 0902 .200700 .00 HOLDER ASSY GB823 M3×6 03 SCREW M3×6 0902 .200501 .00(R) COVER,TOP 0902 .210001 .00 Parallel terminal ST02FD-05010703 BOLT M5×13 REV 73533i-20110721...
  • Page 22: Engine Parts Diagram

    73533i ENGLISH SPECIfICATIONS Engine Parts diagram REV 73533i-20110721...
  • Page 23: Engine Parts List

    CONNECT ROD ASSEMBLY 0902 .040017 .00 OIL SEAL,VALVE 0902 .050300 .00 PISTON RING SET CT166FD-1040005 SPRING,VALVE 0902 .050005 .00 PISTON 0902 .040002 .00 VALVE,INTAKE 0902 .040100 .00 CAMSHAFT COMP . 0902 .040006 .00 VALVE,EXHAUST 0902 .040013 .00 VALVE TAPPET REV 73533i-20110721...
  • Page 24: Wiring Diagram

    73533i ENGLISH SPECIfICATIONS Wiring diagram REV 73533i-20110721...
  • Page 25: Troubleshooting

    Review load and adjust . See “Power Management” Faulty cords or device Check for damaged, bare or frayed wires . Replace defective device for further technical support: Technical Service Mon – Fri 8:30 AM – 5:00 PM (PST/PDT) Toll Free: 1-877-338-0999 tech@championpowerequipment .com REV 73533i-20110721...
  • Page 26: Warranty

    . Warranty Qualifications Other Exclusions Champion Power Equipment (CPE) will register this This warranty excludes: warranty upon receipt of your Warranty Registration Card – Cosmetic defects such as paint, decals, etc .
  • Page 27 CALIFORNIA AND U.S. EPA EMISSIONS CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS The California Air Resources Board, U.S. EPA and Champion Power Equipment (CPE) are pleased to explain the emissions control system’s warranty on your 2011 small off-road engine. In California, new equipment that use small off-road engines must be designed, built, and equipped to meet the State’s stringent anti-smog standards.
  • Page 28 Repair or replacement of any warranted part under the warranty must be performed at no charge to the owner at a warranty station. Notwithstanding the provisions of Subsection (4) above, warranty services or repairs must be provided at all CPE approved service centers. The owner must not be charged for diagnostic labor that leads to the determination that a warranted part is in fact defective, provided that such diagnostic work is performed at a warranty station.
