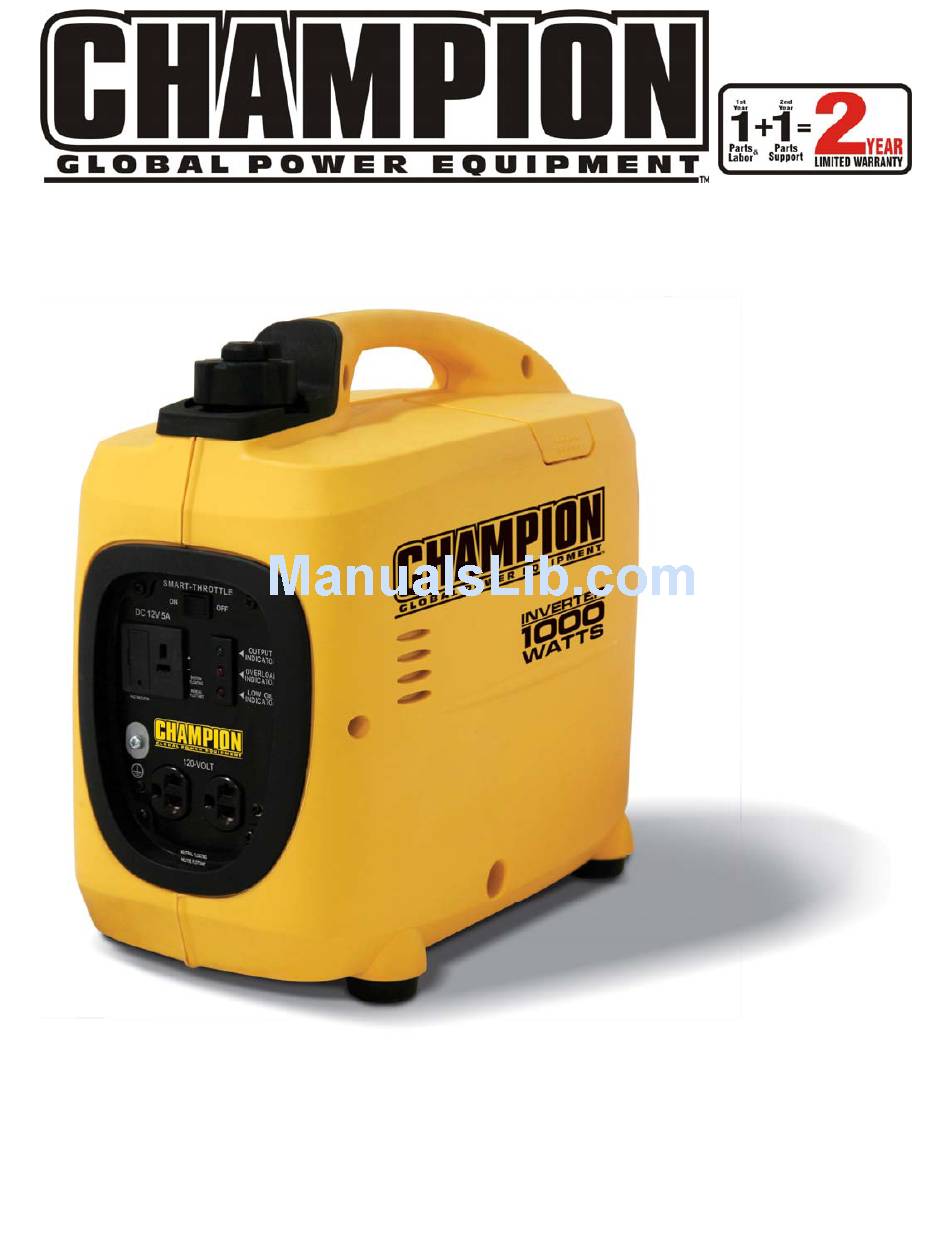

- Page 1 71000i Rev 71000i-20100401 10006 Santa Fe Springs Road Santa Fe Springs, CA 90670 USA Made in China Owner’s Manual and Operating Instructions 1000W Max Power/900W Rated Power PORTABLE GENERATOR...
-
Page 3: Table Of Contents
Table of Contents Introduction ........1 Storage ........... 15 Portable Power Generator ......1 Specifications ......... 16 Accessories ..........1 Engine Specifications ......16 This Booklet ..........1 Generator Specifications ......16 Manual Conventions ...... -
Page 5: Introduction
Record the model and serial numbers as well as date and place of purchase for future reference. Have this information available when ordering parts and when making technical or warranty inquiries. Model 71000i includes IG1000 and accessories. Champion Power Equipment Support... -
Page 6: Manual Conventions
NOTE If you have questions regarding your generator, WARNING we can help. Please call our help line at 1-877- 338-0999. WARNING indicates a potentially hazardous could situation which, if not avoided, result in death or serious injury. Rev 71000i-20100401 E... -
Page 7: Safety Rules
Maintain at least three feet of clearance on all sides to ensure adequate cooling. DANGER Maintain at least five feet of clearance from combustible materials. Rotating parts can entangle hands, feet, hair, clothing and/or accessories. Traumatic amputation or severe laceration can result. Rev 71000i-20100401 E... - Page 8 DO NOT allow any material to block the cooling slots. If connected devices overheat, turn them off and disconnect them from the generator. DO NOT use the generator if: Electrical output is lost Equipment sparks, smokes or emits flames Equipment vibrates excessively Rev 71000i-20100401 E...
-
Page 9: Controls And Features
(2) Fuel Cap – Remove to add fuel engine (3) Power Panel – See “Power Panel” (8) Spark plug access cover (4) Engine Switch/Fuel Valve (9) Muffler outlet (5) Recoil Starter – Used to start the engine Rev 71000i-20100401 E... -
Page 10: Power Panel
(7) DC Receptacle – 12V – 5A overloaded and will cut power to the receptacles. (8) DC Circuit Fuse (4) Low Oil Indicator Light (red) – Check oil level when this light turns on. Engine will not run when indicator is lit. Rev 71000i-20100401 E... -
Page 11: Parts Included
Controls and Features Parts Included Your 71000i Gasoline Powered Inverter Generator ships with the following parts: Spark Plug Socket Assembly 1 set Oil Container 1 piece DC Accessory Cord 1 piece Rev 71000i-20100401 E... -
Page 12: Assembly
Place the generator on a flat, level surface. 2. Loosen the cover screw and remove the maintenance cover. 3. Remove oil fill cap/dipstick to add oil. Rev 71000i-20100401 E... -
Page 13: Add Fuel
Fill the tank to the red level, visible on the fuel filter. DO NOT fill fuel tank indoors. DO NOT fill fuel tank when the engine is running or hot. DO NOT overfill the fuel tank. DO NOT light cigarettes or smoke when filling the fuel tank. Rev 71000i-20100401 E... -
Page 14: Operation
If the engine starts but does not run, make certain that the generator is on a flat, level surface. The engine is equipped with a low oil sensor that will prevent the engine from running when the oil level falls below a critical threshold. Rev 71000i-20100401 E... -
Page 15: Do Not Overload Generator
6. Allow the engine to stabilize. listed under “Power Management” will 7. Repeat steps 5-6 for each additional guarantee that only one device will be item. starting at a time. NOTE Never exceed the generator capacity when adding loads. Rev 71000i-20100401 E... -
Page 16: Wattage Reference Chart
Belt Sander 3" 1000 1500 Bench Grinder 6" 1500 Circular Saw 1500 1500 Compressor 1 1/2 HP 2500 2500 Edge Trimmer Hand Drill 1/2" 1000 1000 Lawn Mower 1200 1800 Paint Sprayer 1200 Table Saw 2000 2000 Rev 71000i-20100401 E... -
Page 17: Maintenance
Loosen the cover screw and remove the maintenance cover. 2. Remove the oil filler cap. 3. Tilt the generator on its side and allow the oil to drain completely. 4. Add 0.26 qt (0.25 L) of oil and replace oil fill cap/dipstick. Rev 71000i-20100401 E... -
Page 18: Air Filter
8. Reattach the air filter cover and snap in Contact our help line at 1-877-338-0999 to place. locate the nearest Champion Power 9. Reinstall the maintenance cover and Equipment certified service dealer for your tighten the cover screw securely. -
Page 19: Storage
Storage Storage The generator should be started at least once every 14 days and allowed to run for at least 20 minutes. For longer term storage, please follow these guidelines. Allow the engine to cool completely before storage. 2. Clean the generator according to the instructions in the Maintenance section. -
Page 20: Specifications
15.55 inches (39.5 cm) Width 9.76 inches (24.8 cm) Length 18.11 inches (46 cm) Fuel Fuel capacity is 0.68 gallons (2.6 L). Use regular unleaded gasoline with a minimum octane rating of 85. Oil capacity is 0.26 qt (0.25 L). Rev 71000i-20100401 E... -
Page 21: Parts Diagram
Specifications Parts Diagram Rev 71000i-20100401 E... -
Page 22: Parts List
Damping Cushion of Case Bottom GB/T5789-1986 Hexagonal Flange Bolt M6X12 KGE1000Ti-13101 Control Panel KGE1000Ti-07008 Fuel Switch Handle KGE1000Ti-07304 Screw KGE1000Ti-06102 Fixing Seat of Starter Handle GB/T818-2000 H-Type Cross Plug Screw M5X12 5-20R American Twin Socket KGE1000Ti-06201 Side Door of Left Case Rev 71000i-20100401 E... - Page 23 Hexagonal Flange Bolt M5X12 KD10-02001 KGE1000Ti-b-07003 Fuel PipeⅢ GB/T96.1-2002 Gasket 6 KGE1000TiA-03021 Exhaust Side Deflector KBPC25-10 Rectifier Bridge GB/T41-2000 Hexagonal Flange Nut M5 KI-DHQ-10 Three in One Ignition Controller KG144-00000 KG144 Gasoline Engine GB/T5789-1986 Hexagonal flange bolt M5*25 Rev 71000i-20100401 E...
-
Page 24: Wiring Diagram
Specifications Wiring Diagram Rev 71000i-20100401 E... -
Page 25: Troubleshooting
Loose wiring Inspect and tighten wiring connections Other Contact the help line. Engine governor defective Contact the help line Repeated circuit breaker tripping Faulty cords or device Check for damaged, bare or frayed wires. Replace defective device Rev 71000i-20100401 E... -
Page 26: Warranty
Wear items such as filter elements, o-rings, etc. Warranty Qualifications Accessory parts such as starting batteries, and Champion Power Equipment (CPE) will register storage covers. Failures to due acts of God and other force this warranty upon receipt of your Warranty Registration Card and a copy of your sales receipt majeure events beyond the manufacturer’s... -
Page 27: Notes
Notes Notes Rev 71000i-20100401 E...
