Table of Contents

Safety Notice

Hardware Pack

Assembly Instruction

Parts List

Warranty

Ordering Parts

Model

NS-1305R

Retain This

Manual for

Reference

140314

ASSEMBLY &

OWNER'S

MANUAL

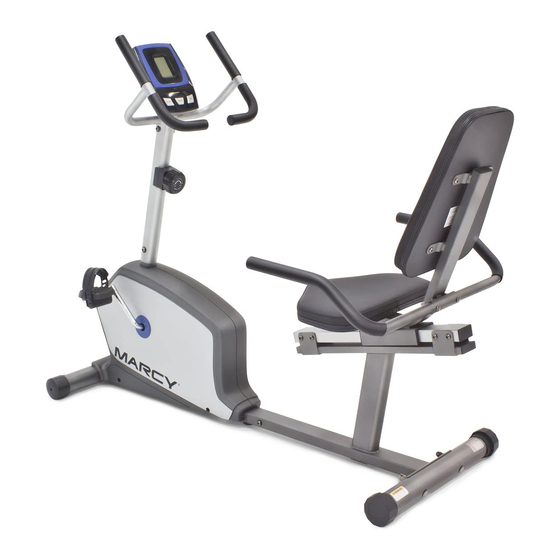

Magnetic-Resistance

Recumbent Bike

NS-1305R

IMPEX

2801 S. Towne Ave, Pomona, CA 91766

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

info@impex-fitness.com

INC.

Table of Contents

Need help?

Do you have a question about the MARCY NS-1305R and is the answer not in the manual?

Questions and answers

Summary of Contents for Impex MARCY NS-1305R

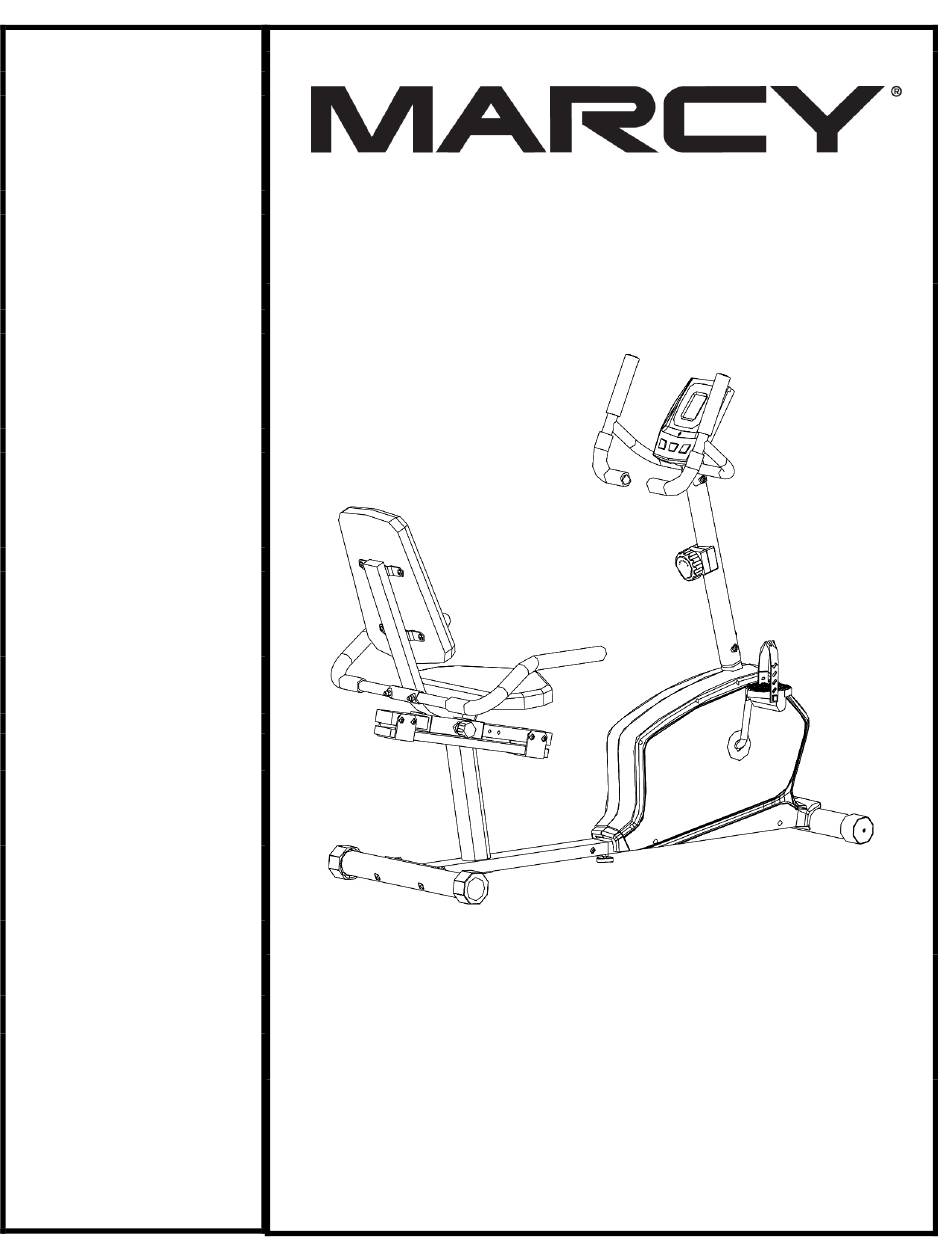

Page 1 NS-1305R Hardware Pack Assembly Instruction Parts List Warranty Ordering Parts Model NS-1305R Retain This Manual for Reference 140314 ® IMPEX INC. ASSEMBLY & 2801 S. Towne Ave, Pomona, CA 91766 OWNER'S Tel: (800) 999-8899 Fax: (626) 961-9966 MANUAL www.impex-fitness.com info@impex-fitness.com...
Page 2: Table Of Contents
TOLL-FREE customer service number. Our Customer Service Agents will provide immediate assistance to you. Toll-Free Customer Service Number 1-800-999-8899 Mon. - Fri. 9 a.m. - 5 p.m. PST www.impex-fitness.com info@impex-fitness.com © IMPEX INC. www.impex-fitness.com...
Page 3: Important Safety Notices
BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES RESPONSIBILITY PERSONAL INJURY PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
Page 4: Warning Label Placement
WARNING LABEL PLACEMENT The Warning Labels shown here has been placed on the Rear Stabilizer. If the labels are missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the labels in location shown. © IMPEX INC. www.impex-fitness.com...
Page 5: Hardware Pack
Carriage Bolt M10 x 3“ Curved Washer Ø ⅞” Carriage Bolt M8 x 1 ⅝” Acorn Nut M8 Acorn Nut M10 Flat Washer Ø ⅝” Leverage Knob Quick Release Lock Knob Crossing Wrench (Tool) #6 Allen Wrench (Tool) © IMPEX INC. www.impex-fitness.com...
Page 7: Assembly Instructions
STEP-1 A.) Attach the Front Stabilizer (#3) to the Main Frame (#1). Secure it with two M8 x 3” Allen Bolts (#2), two Ø 5/8” Lock Washers (#4) and two Ø 5/8” Curved Washers (#5). © IMPEX INC. www.impex-fitness.com...
Page 8 3” Carriage Bolts (#23), two Ø ⅞” Curved Washers (#24), and two M10 Acorn Nuts (#31). D.) Securely tighten all Bolts and Nuts. E.) Thread the Leverage Knob (#39) to Main Frame from bottom to stabilize the Bike on floor. © IMPEX INC. www.impex-fitness.com...
Page 9 M8 x ⅝” Allen Bolt (#21) and two Ø 5/8” Curved Washers (#5). G.) Remove the four M5 x ⅜” Philips Screws from the Computer (#10). Slide the Computer onto Front Post. Secure it with the four Screws. © IMPEX INC. www.impex-fitness.com...
Page 10 B.) Attach the Sear Support to Rear Support Frame (#40) and secure them with eight M8 x ⅝” Allen Bolts (#21). C.) Place the Seat Pad (#45) onto the Seat Support. Secure the Seat Pad with four M x ⅝” Allen Bolts (#21). © IMPEX INC. www.impex-fitness.com...
Page 11 A.) Attach the Handle (#13) to Seat Support (#43). Securely tighten it with two M8 x 1 ⅝” Carriage Bolts (#28), two Ø 5/8” Curved Washers (#5), and two M8 Acorn Nuts (#29). B.) Attach the Backrest Board (#44) to the Seat Support. Secure it with four M8 x ⅝” Allen Bolts. © IMPEX INC. www.impex-fitness.com...
Page 12 STEP-6 A.) Thread the Left Pedal (#37) counterclockwise into the Crank (#17). B.) Thread the Right Pedal (#36) clockwise into the Crank on the other side. © IMPEX INC. www.impex-fitness.com...
Page 14: Parts List
Tension Knob/Upper Tension Cable Lower Tension Cable Middle Computer Wire Lower Computer Wire Right Pedal Left Pedal Flat Washer Ø 5/8” Leverage Knob Rear Support Frame Sliding Frame Quick Release Lock Knob Seat Support Backrest Board Seat Pad © IMPEX INC. www.impex-fitness.com...
Page 15: Care, Maintenance And Storage
Seat Support. 4. The seat adjustment is in approximately 1.18” for each increment. TRANSPORT The Bike has a pair Roller End Caps on Front Stabilizer. To move, carefully hold and tilt the bike, and then roll. © IMPEX INC. www.impex-fitness.com...
Page 16: Computer
6. When the batteries are removed, all the functional values will reset to zero. 7. Batteries are not included. Note: Please note all values on this computer are approximate and they are for comparison purpose only. Do not use these values for any medical or rehabilitation purpose. © IMPEX INC. www.impex-fitness.com...
Page 17: Exercise Guidelines
The rate of work should be sufficient to raise your heartbeat into the target zone shown on the graph below. This stage should last for a minimum of 12 minutes though most people start at about 15-20 minutes © IMPEX INC. www.impex-fitness.com...
Page 18 The important factor here is the amount of effort you put in. The harder and longer you work the more calories you will burn. Effectively this is the same as if you were training to improve your fitness, the difference is the goal. © IMPEX INC. www.impex-fitness.com...
Page 19: Warranty
IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
