NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Pack
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
NS-1003U
Retain This
Manual for
Reference
110518

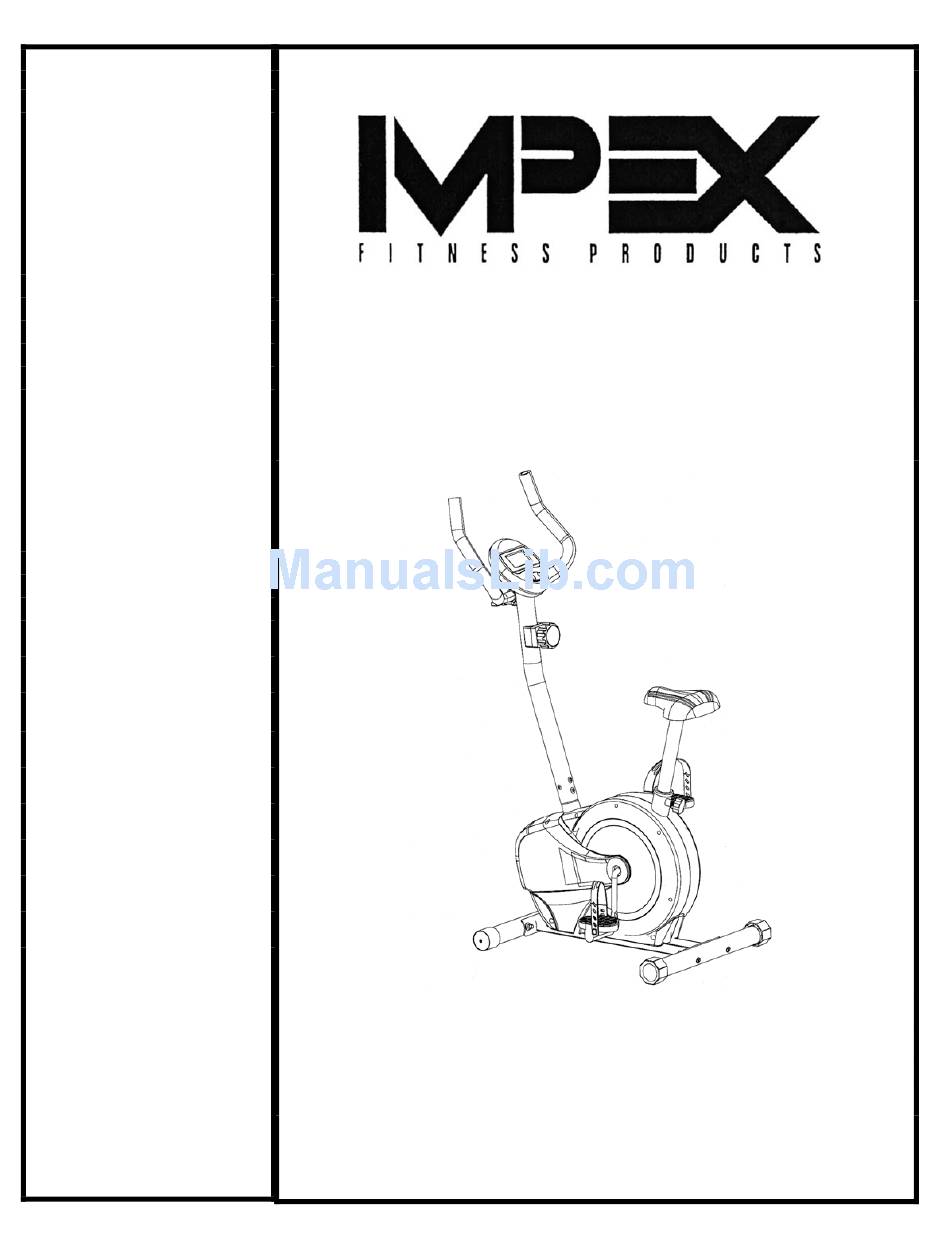

ASSEMBLY &
OWNER'S
MANUAL
Magnetic-Resistance
Upright Bike
NS-1003U
IMPEX
2801 S. Towne Ave, Pomona, CA 91766
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
®
INC.
Meijer.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NS-1003U and is the answer not in the manual?

Questions and answers

Summary of Contents for Impex NS-1003U

  • Page 1 Meijer.com NOTE: Please read all instructions carefully before using this product Table of Contents Safety Notice Magnetic-Resistance Hardware Pack Upright Bike Assembly Instruction NS-1003U Parts List Warranty Ordering Parts Model NS-1003U Retain This Manual for Reference 110518 ASSEMBLY & OWNER'S ®...
  • Page 2: Table Of Contents

    COMPUTER…………………………………………………………………………… 14 EXERCISE GUIDELINES……………………………………………………………. 15 WARRANTY....................…. ORDERING PARTS..................….. BEFORE YOU BEGIN Thank you for selecting the MARCY Magnetic-Resistance Upright Bike NS-1003U by ® IMPEX INC. For your safety and benefit, read this manual carefully before using the bike. As a manufacturer, we are committed to provide you complete customer satisfaction.
  • Page 3: Important Safety Notices

    BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES RESPONSIBILITY PERSONAL INJURY PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
  • Page 4: Warning Label Placement

    The Warning Labels and Caution Label shown here have been placed on the Rear Stabilizer, Main Frame. If the labels are missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the labels in location shown. © IMPEX INC.
  • Page 5: Hardware Pack

    NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size. No. Description Identifier Q’ty Carriage Bolt M8 x 2 3/8” Curved Washer Ø 5/8” M8 Acorn Nut Allen Bolt M8 x 5/8“ T-shaped Lock Knob #6 Allen Wrench Crossing Wrench © IMPEX INC.
  • Page 6: Assembly Instructions

    COMPONENTS FOR ASSEMBLY ASSEMBLY INSTRUCTION  Tools Required For Assembling the Machine: One Crossing Wrench and Allen Wrench, provided by manufacturer.  NOTE: It is strongly recommended that two or more people assemble this machine to avoid possible injury. © IMPEX INC.
  • Page 7 A.) NOTE: Extra help may be needed to hold the Front Post (#4) while connecting the cables and wires. B.) Attach the Front Post (#4) to the Main Frame (#1). Connect the Middle Computer Wire (#21) from the bottom of the Front Post to the Lower Computer Wire (#22) from the Main Frame. © IMPEX INC.
  • Page 8 D.) Drop down the Upper Tension Cable so the fitting sits firmly on top of the bracket. E.) Secure the Front Post to the Main Frame with four M8 x 5/8” Allen Bolts (#18) and four Ø 5/8” Curved Washers (#16). STEP 3 © IMPEX INC.
  • Page 9 B.) Connect Upper Computer Wire (#28) from Computer (#6) to the Middle Computer Wire (#21) from Front Post. C.) Remove the two M5 x 3/8” Philips Screws (#29) from Computer. Slide the Computer onto the bracket on Front Post. Secure it with the two Screws. STEP 4 © IMPEX INC.
  • Page 10 Ø 5/8” Lock Washers (#13), and three M8 Aircraft Nuts (#14). C.) Insert the Seat Post into the opening on Main Frame (#1). Thread the Lock Knob (#11) through the hole on Seat Post to securely lock it at selected height. STEP 5 © IMPEX INC.
  • Page 11: Exploded Diagram

    Meijer.com A.) Thread the Left Pedal (#9) counterclockwise into the Crank (#25). B.) Thread the Right Pedal (#10) clockwise into the Crank on the other side. EXPLODED DIAGRAM © IMPEX INC.
  • Page 12: Parts List

    Meijer.com PARTS LIST © IMPEX INC.
  • Page 13 M8 x ¾” Tension Knob/Upper Tension Cable Middle Computer Wire Lower Computer Wire Lower Tension Cable Front Stabilizer Roller End Cap Crank T-shaped Lock Knob Rear Stabilizer End Cap Upper Computer Wire Philips Screw M5 x 3/8” Bracket © IMPEX INC.
  • Page 14: Care, Maintenance And Storage

    Seat Post, then release the Lock Knob and securely fasten the Knob to lock the Seat Post. 5. The seat height adjustment is in approximately 1 ½” increment. TRANSPORT The Bike has a pair Roller End Caps on Front Stabilizer. To move, carefully hold and tilt the Handle, and then roll. COMPUTER © IMPEX INC.
  • Page 15: Exercise Guidelines

    6. When the batteries are removed, all the functional values will reset to zero. Note: Please note all values on this computer are approximate and they are for comparison purpose only. Do not use these values for any medical or rehabilitation purpose. EXERCISE GUIDELINES © IMPEX INC.
  • Page 16: Exercise

    This stage should last for a minimum of 12 minutes though most people start at about 15-20 minutes 3. The Cool Down Phase © IMPEX INC.
  • Page 17 The important factor here is the amount of effort you put in. The harder and longer you work the more calories you will burn. Effectively this is the same as if you were training to improve your fitness, the difference is the goal. ® IMPEX INC. © IMPEX INC.
  • Page 18: Warranty

    IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
