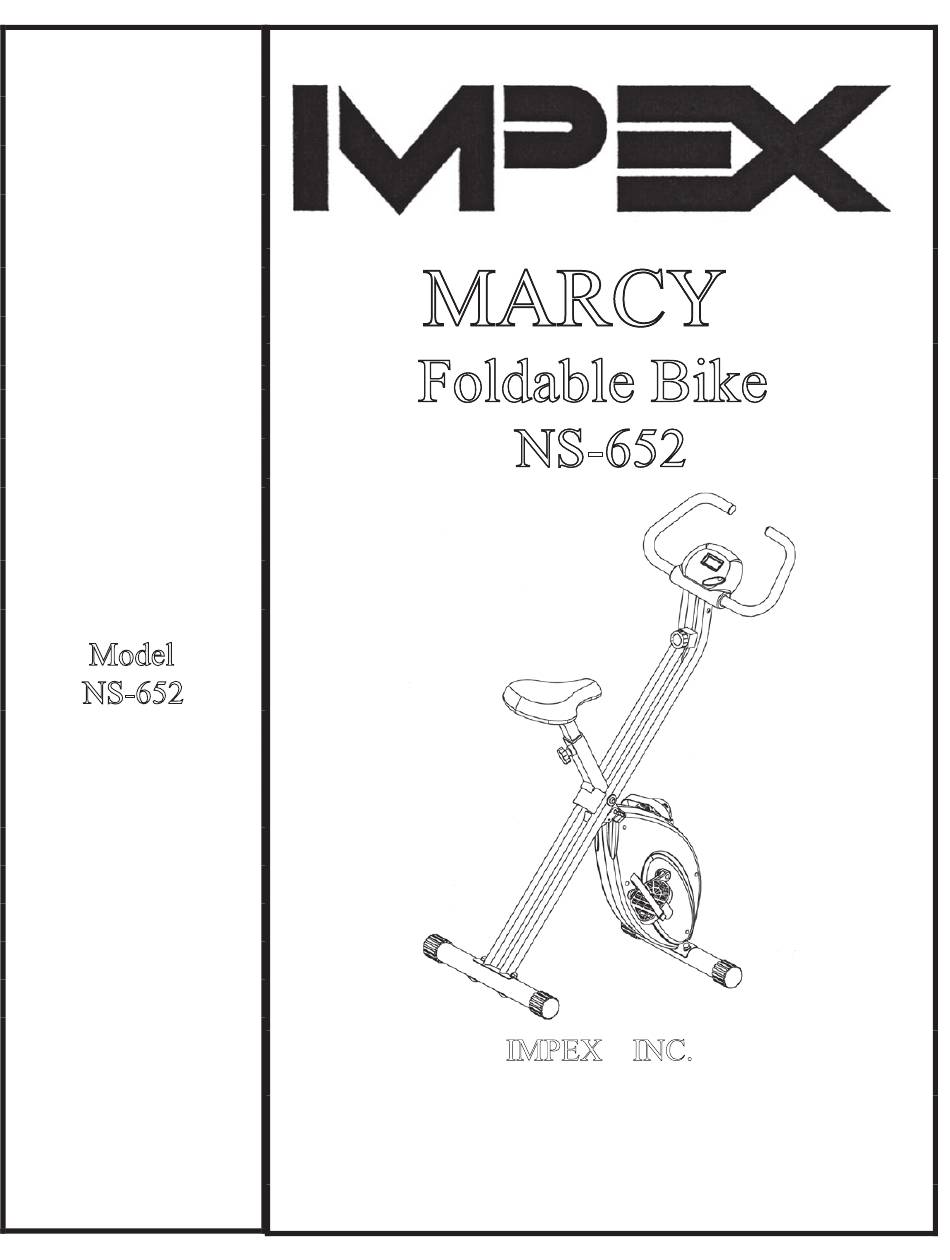

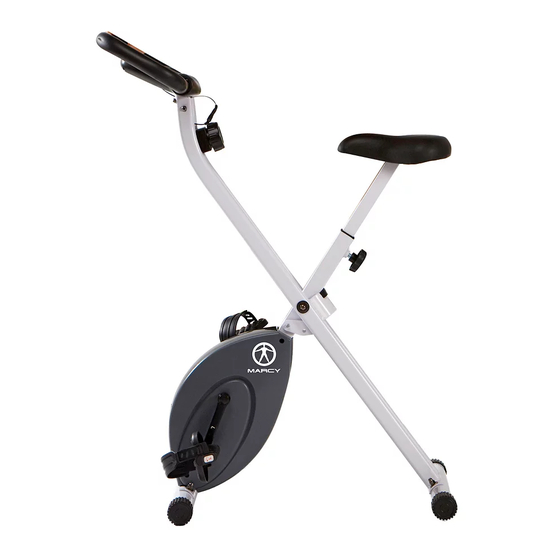

  • Page 1 ® Safety Notice Foldable Bike Hardware Pack Assembly Instruction NS-652 Parts List Warranty Ordering Parts Model NS-652 Retain This Manual for Reference 102819 OWNER'S MANUAL IMPEX INC. ® 2801 S. Towne Ave, Pomona, CA 91766 Tel: (800) 999-8899 www.marcypro.com support@impex-fitness.com...

  • Page 2: Table Of Contents

    T o a void un necessary d elays, please call our TOLL-FREE customer service number. Our Customer Service Agents will provide immediate assistance to you. Toll-Free Customer Service Number 1-800-999-8899 Mon. - Fri. 9 a.m. - 5 p.m. PST www.marcypro.com support@impex-fitness.com...

  • Page 3: Important Safety Notices

    IMPORTANT SAFETY NOTICE PRECAUTIONS This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. In particular, note the following safety precautions: 1.

  • Page 4: Warning Label Placement

    WARNING LABEL REPLACEMENT The Warning Label shown here has been placed on the rear Stabilizer. If the label is missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the label in location shown.

  • Page 5: Pre-Assembly Check List, Hardware Pack

    PRE-ASSEMBLY CHECK LIST HARDWARE PACK No. Description Identifier Q’ty Adjustment knob Allen Wrench Crossing Wrench Above hardware are all you need to assemble this machine. Before you start to assemble, please check the hardware pack to make sure they are included.

  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTION NOTE: It is strongly recommended that two or more people assemble this machine to avoid possible injury. STEP 1 (See Diagram1) A). Pull the Safety-Pin (#11) from the Main Frame (#1). B.) Pull the upright frame and the seat post apart, and then insert back the Safety-Pin to securely lock the Main Frame in X-position.
  • Page 7 STEP 2 (See Diagram 2) A.) Attach the Front Stabilizer to the front of Main Frame (#1). Secure it with the two Carriage Bolts, Curved Washers, and Dome Nuts. B.) Repeat Procedure B to install the other Stabilizer on rear. DIAGRAM 2...
  • Page 8 STEP 3 (See Diagram 3) A.) Firmly thread the Left Pedal (marked “L) (#3) counterclockwise to the left crank. B.) Firmly thread the Right Pedal (marked “R” (#4) clockwise to the right crank. DIAGRAM 3...
  • Page 9 STEP 4 (See Diagram 4) A.) Remove the three Nylon N uts ( #13) and t hree Flat W ashers ( #14) u nder t he Seat (#6). B.) Attach the Seat to the Seat Post (#5). Secure it with the three Nylon Nuts (#13) and three Flat Washers (#14).
  • Page 10 STEP 5 (See Diagram 5) A.) Attach the Handlebar(#7) to the front post of Main Frame (#1). Secure it with four Screw sets (#15). DIAGRAM 5...
  • Page 11 STEP 6 (See Diagram 6) A.) Connect Sensor Wire (#17) from the front post of the Main Frame and connect to the Computer wire (#16) from Computer. DIAGRAM 6...

  • Page 12: Exploded Diagram

    EXPLODED DIAGRAM...

  • Page 13: Parts List

    PARTS LIST KEY NO. DESCRIPTION QUANTITY Main frame Stabilizer Left pedal Right Pedal Seat post Seat Handlebar w/computer Carriage bolt Curve washer Domed nut Safety-pin Adjustment knob Nylon nut Flat washer Screw sets Computer wire Sensor wire Allen wrench Crossing wrench...

  • Page 14: Computer

    COMPUTER AUTO START / STOP When exercise starts, the monitor will automatically turn on and display the progress. When exercise stops, the monitor will automatically turn off after 5 minutes to save energy. Press “MODE” key, will automatically scan Time, Speed, Distance, Calories, and ODO for every 4 seconds.

  • Page 15: Exercise Instructions

    EXERCISE INSTRUCTIONS Using your FOLDABLE BIKE will provide you with several benefits, it will improve your physical fitness, tone muscle and in conjunction with calorie controlled diet help you lose weight. 1. The Warm Up Phase This stage helps get the blood flowing around the body and the muscles working properly.
  • Page 16 Review all warning notices before using the bike. Electronic warning notices may be obtained by contacting customer support (support@impex-fitness.com). Allow minimum 20” of clear spaces in all directions to operate the bike. Before mounting or dismounting move the pedal on the mounting or dismounting side to its lowest position and bring the bike to a complete stop.

  • Page 17: Warranty

    IMPEX. IMPEX is not responsible or liable for indirect, s pecial or c onsequential dam ages ar ising out of or i n connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or ot her c onsequential dam ages or w hatsoever nat ures.
