NOTE:
Please read all
instructions carefully
before using this product
Table of Contents
Safety Notice
Hardware Pack
Assembly Instruction
Warranty
Ordering Parts
Model
NS-1206R
Retain This
Manual for
Reference
190424

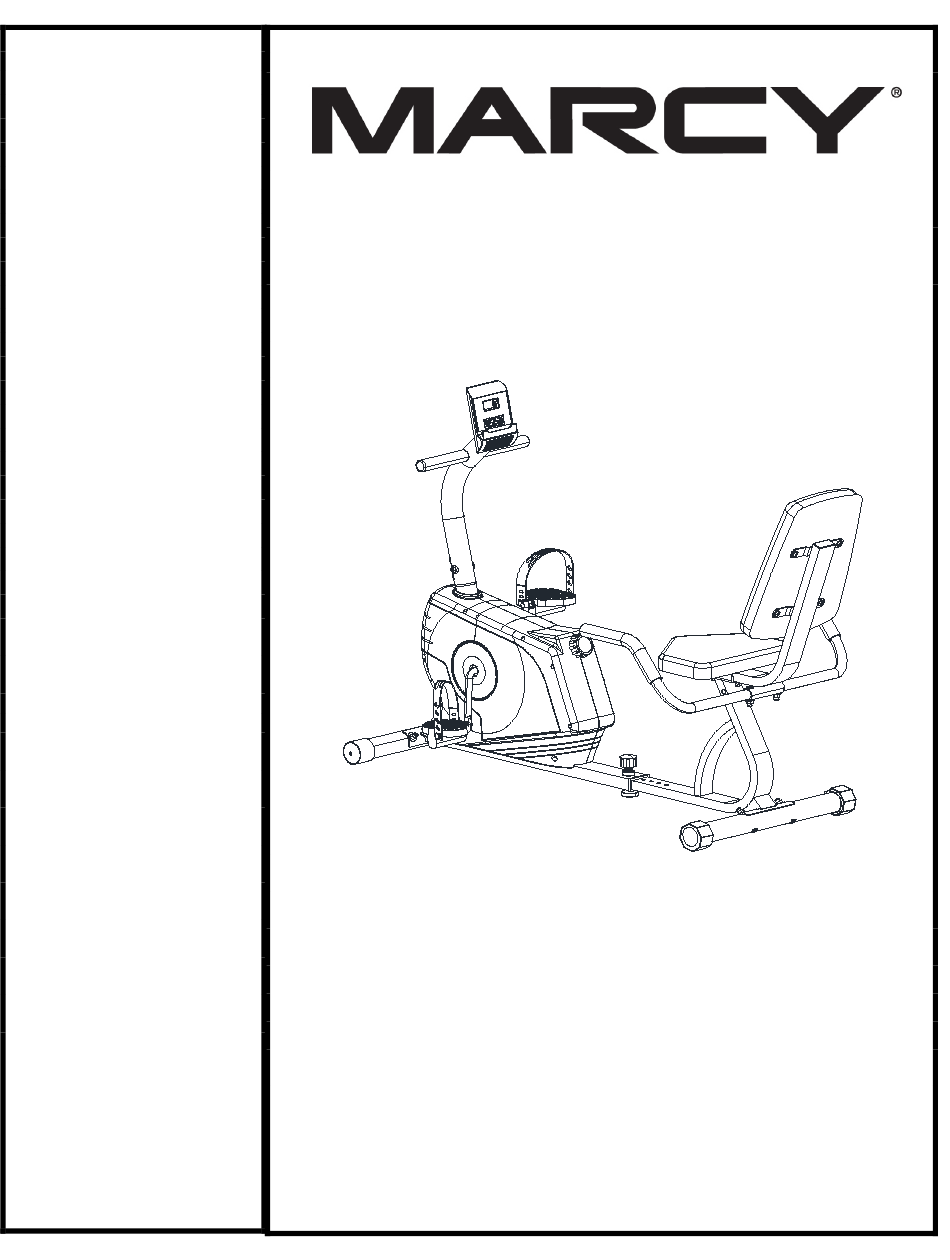

ASSEMBLY &
OWNER'S
MANUAL

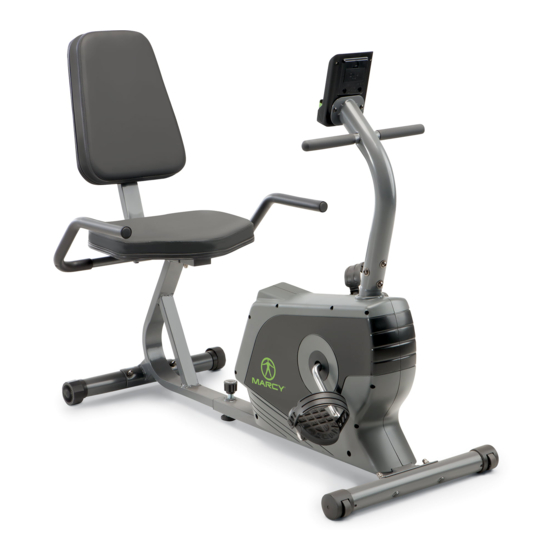

Magnetic
Recumbent Bike
NS-1206R
IMPEX
2801 S. Towne Ave, Pomona, CA 91766
Tel: (800) 999-8899 Fax: (626) 961-9966
www.marcypro.com
support@impex-fitness.com
®
INC.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Impex Marcy NS-1206R
Summary of Contents for Impex Marcy NS-1206R
- Page 1 Safety Notice Hardware Pack Assembly Instruction Parts List Warranty Ordering Parts Model NS-1206R Retain This Manual for Reference 190424 IMPEX ® INC. ASSEMBLY & 2801 S. Towne Ave, Pomona, CA 91766 OWNER'S Tel: (800) 999-8899 Fax: (626) 961-9966 MANUAL www.marcypro.com support@impex-fitness.com...
-
Page 2: Table Of Contents
To avoid unnecessary delays, please call our TOLL-FREE customer service number. Our Customer Service Agents will provide immediate assistance to you. Toll-Free Customer Service Number 1-800-999-8899 Mon. - Fri. 9 a.m. - 5 p.m. PST www.marcypro.com support @impex-fitness.com © IMPEX INC. www.marcypro.com... -
Page 3: Imporant Safety Notices
OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT. SAVE THESE INSTRUCTIONS. -
Page 4: Warning Label Placement
The Warning Labels and Caution Label shown here have been placed on the Rear Stabilizer. If the labels are missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the labels in location shown. © IMPEX INC. www.marcypro.com... -
Page 5: Hardware Pack
NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size. Description Q’ty Identifier ⅝ Allen screw M8x Curved washerΦ8*Φ20 ⅜ Carriage bolt M8*2 Domed nut M8 ⅝ Carriage bolt M8*1 Leveler knob WasherΦ8*Φ17 Crossing wrench Allen key L6 © IMPEX INC. www.marcypro.com... - Page 6 COMPONENTS FOR ASSEMBLY NO:23 NO:26 NO:1 NO:25 NO:4 NO:6 NO:5 NO:2 NO17L/R NO:14 NO:27 © IMPEX INC. www.marcypro.com...
-
Page 7: Assembly Instruction
1. Before starting assembly, pull out the Quick Release Knob (#24), remove and dispose the Protective Insert. 2. Attach the Front stabilizer (#14) to the Main frame (#1) with Curved washers (#9), Carriage bolts (#13) and Acorn Nuts (#19). 13mm-15mm 1pcs © IMPEX INC. www.marcypro.com... - Page 8 2. Attach the M10 Leveler Knob (#20) onto the main frame. Adjust the leveler so it’s seated completely on the floor to stabilize the Bike before exercising. STEP 3 Attach the Rear Stabilizer (#27) with Curved washers (#9), Carriage Bolts (#13) and Acorn Nuts (#19). 13mm-15mm 1pcs © IMPEX INC. www.marcypro.com...
- Page 9 STEP 4 Attach the Seat Support (#26) to bracket on the Sliding Frame (#23). Secure it with Acorn Nuts (#19), Carriage bolts (# 21) and Washers (# 22). 13mm-15mm 1pcs © IMPEX INC. www.marcypro.com...
- Page 10 STEP 5 Attach the Handle bar (#25) to the Seat Support (#26). Secure it with Curved washers (#9), Acorn Nuts (#19) and Carriage bolts (# 21). 13mm-15mm 1pcs © IMPEX INC. www.marcypro.com...
- Page 11 STEP 6 Attach the Seat Pad (#5) to the Seat Support. Secure it with Allen Bolts (#8) STEP 7 Attach the Backrest Board (#6) to the Seat supoort. Secure it with Allen Bolt (#8) © IMPEX INC. www.marcypro.com...
- Page 12 STEP 9 1. Connect Upper Computer Wire (#10) to the wire of computer. 2. Remove the Screws (#3) from Computer (#2). Slide the computer onto the bracket on Front Post. Secure it with the two Screws (#3) © IMPEX INC. www.marcypro.com...
- Page 13 STEP 10 1. Thread the left Pedal(#17L) Counterclockwise into the left Crank. 2. Thread the right Pedal(#17R) Clockwise into the crank on the right side. 13mm-15mm 1pcs 13mm-15mm 1pcs © IMPEX INC. www.marcypro.com...
-
Page 14: Exploded Diagram
EXPLODED DIAGRAM © IMPEX INC. www.marcypro.com... -
Page 15: Parts List
Square end cap Acorn Nut Leveler knob Carriage bolt Washer Sliding frame Quick release knob Handle bar Seat support Rear stabilizer End cap of rear stabilizer Foam grip End cap of handle bar Handle bar foam grip © IMPEX INC. www.marcypro.com... -
Page 16: Operating Notes
The seat adjustment is in approximately 1” increment. TRANSPORT The Bike has a pair of transport wheels on the Front Stabilizer. To move, carefully raise the Handle and Rear Stabilizer up from floor, and roll. © IMPEX INC. www.marcypro.com... -
Page 17: Computer
SPECIFICATIONS: AUTO SCAN Every 6 seconds TIME 0:00’~99:59’ CURRENT 0.0~999.9（MILE/H） SPEED FUNCTION TRIP 0.00~999.9（MILE） DISTANCE CALORIES 0.0~999.9 CAL ODOMETER 0.0~9999（MILE） BATTERY TYPE 2pcs of SIZE AAA OPERATING 32°F ~ 104°F TEMPERATURE STORAGE TEMPERATURE -14°F ~ 140°F © IMPEX INC. www.marcypro.com... -
Page 18: Exercise Guidelines
The rate of work should be sufficient to raise your heartbeat into the target zone shown on the graph below. This stage should last for a minimum of 12 minutes though most people start at about 15-20 minutes © IMPEX INC. www.marcypro.com... - Page 19 The important factor here is the amount of effort you put in. The harder and longer you work the more calories you will burn. Effectively this is the same as if you were training to improve your fitness, the difference is the goal. © IMPEX INC. www.marcypro.com...
-
Page 20: Warranty
IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
