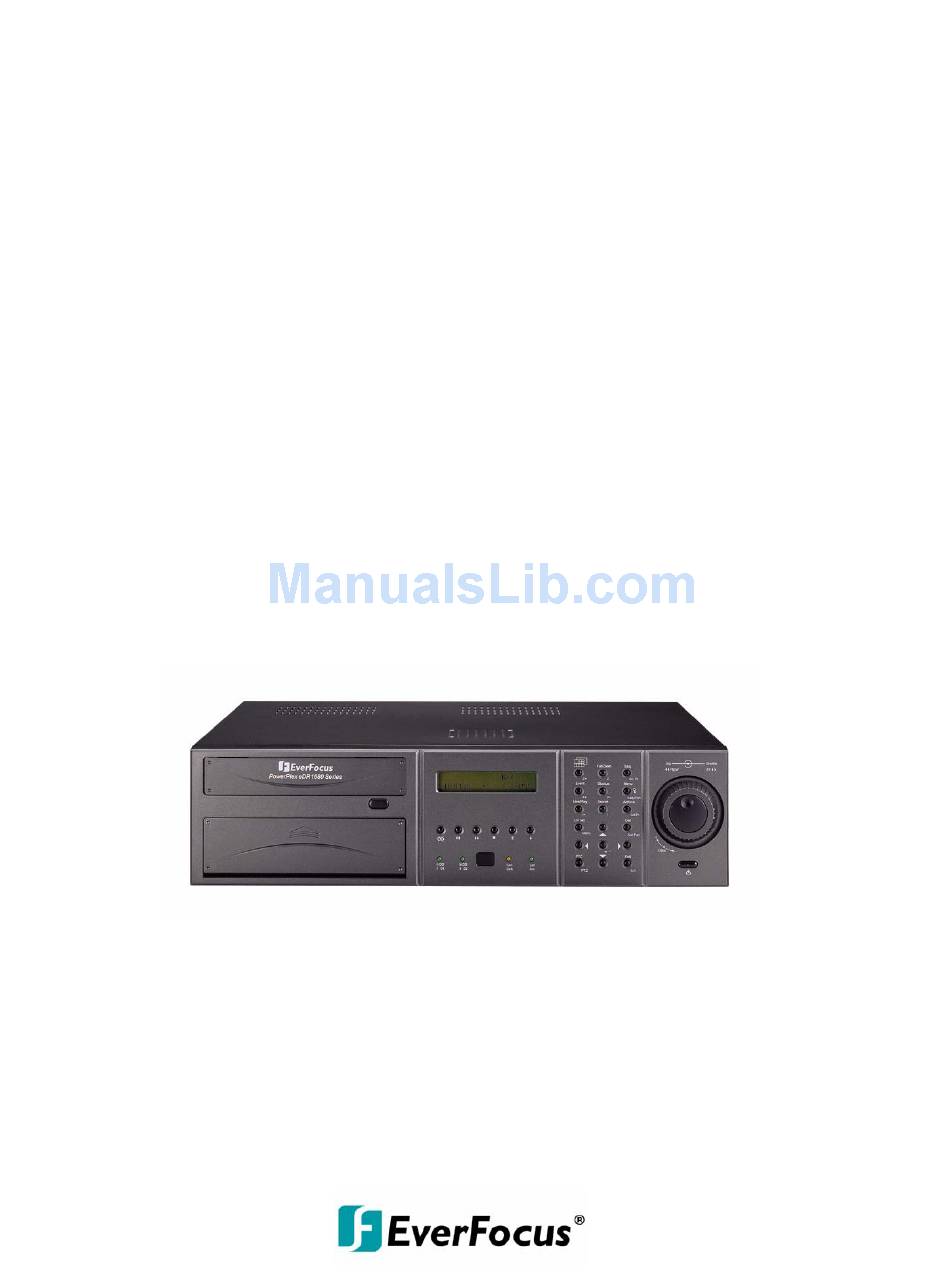

- Page 1 Administrator’s Guide Operating Instructions Real Time Digital Video Recorder eDR1680 Series V 1.0...
- Page 2 CAUTION DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE Safety Precautions Refer all work related to the installation of this product to qualified service personnel or system installers.
- Page 3 The lightning flash with an arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated ” dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons The exclamation point within an equilateral triangle is intended to alert the user to presence of important operating and maintenance(servicing)instructions in the...
- Page 4 Read Instruction---All the safety and operating instructions should be read before the init is operated Retain Instructions---The safety and operating instructions should be retained for future reference. Heed Warnings—All warnings on the unit and in the operating instructions should be adhered to. Follow Instructions—All operating and use instructions should be followed Cleaning—Unplug the unit from the outlet before cleaning.
-
Page 5: Table Of Contents
Table of Contents 1. Product Features………………………………………………………..………….1 2. Part Names………………………………………………………..…………………2 2.1 Front panel……………………………………………………..………………...2 2.2 Back panel…………………………………………..……………………………3 2.3 Remote Controller…………………………………..……………………………4 3. Installation...……………………………..……………………………...…….5 4. Function keys illustration………………………..………………………………..7 5. Live Display………………………………………….………………….…………..10 5.1. System Login……………………………………….…………………………..10 5.2. Live Display and Basic Operation…………………….………………………10 6. Setup Menu………………………………………………………………………. ..12 6.1. -
Page 6: Product Features
Product Features 16/8 CH Real-Time Digital Video Recorder Quadruple operation: Recording, Live view, Playback & Remote viewing 16/8 Color and/or B/W camera inputs (NTSC/PAL) MPEG-4 compression with resolution up to 720*480 (NTSC) / 720*576 (PAL) Real time recording (up to 25/30 FPS) per channel Real time live display (up to 25/30 FPS) per channel Real time playback (up to 25/30 FPS) per channel 16/13/10/9/7/4 windows or full-screen display... -
Page 7: Part Names
Illuminates when HDD I01 (built-in) is accessed. HDD Tray Lock Lock the tray to enable the HDD I02 application. DVR ID Switch Switch the controlled ID (DVR1~DVR4) for ERC100 controller. The default setting is DVR 1. HDD Tray HDD I02 (hot-swappable) -
Page 8: Back Panel
2.2 Back Panel Video 1-8 Audio In Call Monitor Ω Main Monitor Audio RS232#1 CVBS Y/C Video Input Connectors (Video In 1-8): BNC connectors for video input 1-8 Video Output Connectors (Video Out 1-8): BNC connectors for video looping out 1-8 Video Input Connectors (Video In 9~16): BNC connectors for video input 9~16 (eDR1680) Video Output Connectors (Video Out 9~16): BNC connectors for video looping out 9~16 Main Power Socket: The main power input. -
Page 9: Remote Controller
ID Buttons One Remote Controller can control up to 4 DVRs. Press the buttons to switch the controlled ID (DVR1~DVR4). The default setting is DVR 1. Function Buttons General Mode Panel (white), PTZ Mode Panel (Cyan) Please refer to Chapter 4 for detail functions operation. -
Page 10: Installation
3. Installation Audio In 1~4 Call Monitor Video 1-8 Audio In Call Monitor Main Monitor Audio RS232#1 CVBS Y/C Audio Out Modem Main Monitor (Y/C) Main Monitor (CVBS) Basic Connection Cameras Connect each camera video input connector to the video output from a camera or other composite video source. -
Page 11: Optional Connection
Optional Connection VGA Monitor Connect the VGA monitor output connector to a VGA monitor. The VGA monitor displays selected live or recorded cameras in any available format. Call Monitor Connect the Call monitor output connector to a TV monitor. This monitor displays the full screen images of cameras associated with alarms or images from the installed cameras sequentially. -
Page 12: Function Keys Illustration
4. Function Keys Illustration Full/Zoom Event Status Live/Play Search CH Set Auto Pan General mode operation. Press to change display split mode according to following cycle. Full/Zoom Switch the focus window to full screen mode. Press again to Digital Zoom-in (X2) the selected area (Show X2 at the right lower corner on the display). - Page 13 Status There are four types of status display on the bottom of the screen HDD storage status. Press again to display Date/Time & Camera Status. Press again to display Date/Time & Alarm Inputs. .Press again to control the Date/Time & Alarm Outputs Press again to close the display. Date/Time Show the details if motion or alarm triggered.
- Page 14 Press to return to upper level or leave current dialog without saving. PTZ mode operation. If there is a compatible PTZ camera connected to the DVR, you may switch between PTZ mode or General mode to operate the PTZ camera or DVR by pressing the PTZ button on the front panel.
-
Page 15: Live Display
The screen above is the main display (monitor) after the system starts up and user login. The display resolution is 640x480(NTSC), 800x600(PAL). The display mode and function key panel status will be shown on the screen as following: General mode for DVR operation PTZ control mode Sequential mode display... - Page 16 There is always a focus window surrounded by a white frame and it can be moved among split windows by using Full/Zoom Switch the focus window to full screen mode. Press again to Digital Zoom-in (X2) the selected area (Show X2 at the right lower corner on the display). Press again to return to previous static display.
-
Page 17: Setup Menu
6. Setup Menu For entering the system setup menu, the user has to login as an Administrator level. To setup the behaviors of the system, please press “Menu” button on the front panel. The Setup Menu shown as below will appear on screen. buttons or “Jog”... -
Page 18: Setup Menu Flowchart
6. 1 Menu flowchart Camera > Calendar System > Display > Password Logout General Advanced Global General Hard Disk Alarm Input > Network Dial-up E-mail Main Monitor Seq Call Monitor Seq Motion Detection Motion Action VLoss Action Alarm Action... -
Page 19: Camera Setup
6.2 Camera Setup 6.2.1 Camera-General Setup Figure 1 Camera Tag Default settings are Cam1~Cam16 (Cam1~Cam8 for eDR880). User may move to “Edit” icon and press “Enter” button (Simulated keyboard will pop up once you start the edit function- Figure 1) to edit the camera title (total 10 characters available). Move to “OK” icon after finished and press “Enter”... -
Page 20: Camera-Advanced Setup
6.2.2 Camera-Advanced Setup Camera Tag Select the corresponding camera Cam1~Cam16 for further setting. Time Type 4 options of time type are available. Default value is “On Duty”. The setting of each time type please refer Chapter 7 Calendar setup menu. Motion Select “ON/OFF”... - Page 21 Motion Detection Setup Mask Type 3 Options (4x3, 8x6, 16x12). Select the size of the mask that will be used to configure the motion detection area in the view window. Default value is 16x12. Mask Select 3 Options (Select All, Clear ALL, User define). Select the initial masked area. Sensitivity 3 Options (High, Mid, Low).
- Page 22 Post-Recording Define the post-recording time (0~99 seconds) for corresponding camera. Default value is 10 Sec. Alarm Output To define which Alarm Output will be triggered when the Motion Action is triggered. Alarm Output 1,2,5,6 are NC type of signal, Alarm Output 3,4,7,8 are No type. Select N/A to disable alarm output.Default value is 1 (alarm output 1).
- Page 23 VLoss Act (video loss action) Maximum 4 options. Define the Video Loss Action for corresponding camera.Default value is “VlossA01”. Move the focus to the Config icon will be enabled for user to configure the -> video loss action behavior. Move the focus to the icon and press “Enter” button to show the Video Loss Action Dialog as Figure 1: Figure 1 Figure 2...
-
Page 24: Camera-Global Setup
Default color is black. Position 4 options. Default position is Upper Left. PTZ Model Select the model if there is PTZ camera connected to the DVR. Support PTZ models: EverFocus EPTZ series, ED2200 Baud Rate Select the baud rate of PTZ.camera. -
Page 25: Calendar Setup
6. 3 Calendar Setup There are total Ten years calendar and four Day Type available for users’ setting. The DVR’s behavior will work according to the setting schedule (Figure 1). Figure 1 Year 10 options. Default value is current year (2004). -
Page 26: System Setup
6. 4 System Setup 6.4.1 System-General Setup System Time Set the system of the DVR. (After set the new system time, you need to reboot the machine to activate the setting.) Daylight Saving Time Four options. Select the desired type if necessary. -
Page 27: System-Hdd Setup
6.4.2 System-Hard Disk Setup HDDs Auto Overwrite To set auto overwrite when HDD is full. Default value is “OFF”. If the setting is “OFF”, the DVR stop recording when HDD is full. HDD Full Action To define the behaviors when HDD is full. -
Page 28: System-Alarm Input Setup
6.4.3 System-Alarm Input Setup The Alarm Input Setup allows the administrator to define the behaviors for each Alarm Input at each Time Type. There are up to 16 Alarm Inputs connected to the system. For each Alarm Input and each Time Type, you may enable/disable and select its corresponding Alarm Action (Figure 1). - Page 29 Figure 3 Figure 4 Action Tag Default value AlarmA01~AlarmA16. Move the focus to “Edit” icon and press “Enter” button to edit desired action tag. Simulated keyboard will pop up once user starts the edit function (Figure 4) (total 10 characters available). Move to “OK” icon after finished editing and press “Enter” button to confirm editing.
-
Page 30: System-Network Setup
6.4.4 System-Network Setup The Network Configuration allows the administrator to define the parameters for communication between the system and outboard devices via Ethernet. IP address Enter the reasonable parameters in the columns by using simulated keyboard. To obtain the IP address of the system, please contact your Internet Server Provider. -
Page 31: System-Dial-Up Setup
6.4.5 System-Dial-up Setup The Dial-up Setup allows the administrator to define the parameters for dial-up connection between the system and outboard devices through Modem (Modem Function Reserved) or ISDN. . For ISDN only Dialup Device The system supports dial-up connection via Modem or ISDN. Select Modem or ISDN to setup the dial-up method. -
Page 32: System-Email Setup
6.4.6 System-Email Setup The E-Mail Setup allows administrator to define the related settings of E-mail notification function. edr1680@everfocus.com.tw admin@everfocus.com.tw System Address Enter the reasonable system e-mail address. The address will be shown on the notification mail as the sender’s address. -
Page 33: Display Setup
6. 5 Display Setup 6.5.1 Display-Main Monitor Seq Setup The Main Monitor Sequence Configuration allows administrator to define the Display Pages in Sequence Mode display. SEQ Mode There are 7 Sequence Mode display types – Full, 4-Window, 7-Window, 9-window, 10-window, 13- window and 16-window. -
Page 34: Display-Call Monitor Sequence Setup
6.5.2 Display-Call Monitor Seq Setup The Call Monitor Sequence Setup allows administrator to define the regular behavior of the call (spot) monitor. Dwell Time 11 options (OFF. 1, 2, 3, 5, 10, 15, 20, 30, 45, 60 seconds). Each camera can set different dwelling time in sequential display. -
Page 35: Password Setup
6.6 Password Setup The Password Setup allows the administrator to set the new Login names and passwords for the Administrator, Supervisor and Operator level. The system allows up to total 30 user accounts for all login levels. The default (Login, Password) for the Administrator is (admin, admin), the Supervisor is (supervisor, supervisor), the Operator is (operator, operator). -
Page 36: Logout
6.7 Logout To logout the system, press “Enter” button to invoke the Logout Dialog as shown in below. The default setting for confirm dialog is “No”. Use “Yes” to confirm , then press “Enter” to logout. buttons or “Shuttle” to select the... -
Page 37: Playback And Search Recorded Images
7. Playback and Search recorded images 7.1 Video Playback Single Window Playback On Static Mode, use buttons to move the focus to the designated view window, then press “Live/Play” button to start playback mode. There is an “ “ will show on the display. Press “... -
Page 38: Search Recorded Images
7.2 Search Recorded Images The system provides 4 ways to search the recorded images for playback, Search By Time, Search By Location, Search By Event and Smart Search. To search the recorded images, press “Search” button, the Image Search Dialog will appear on screen. -
Page 39: Search By Event
7.2.3 Search by Event 2004/04/09 2004/04/09 2004/04/10 2004/04/10 2004/04/10 Operation: 1. Select to search by Event. 2. Select desired start event type-Alarm, Vloss, Motion. 3. Select the list number is the list. For example: 3/25. 4. Move the focus to “Play” icon and press “Enter” to start playback. Note: If the search time is not valid, the “Play”... -
Page 40: Video Archive And Preview
8. Video Archive and Preview 8.1 Video Archive The playback video can be archived to various medias. Move the focus to the desired playback window, press “Archive” button to invoke the Video Archive Dialog shown as below. The selected playback window will be shown in the view window.Use focus among items, or “Jog”... -
Page 41: Preview Archived Video
8.2 Preview Archived Video Refer to Chapter 8.1 video archive to invoke the dialog and select Preview to invoke the Video Archive and Preview Dialog shown as below. The selected playback window will be shown in the view window.Use buttons or “Shuttle” to move the focus among items, select option from the list in the item. -
Page 42: Event Log
9. Event Log There are 6 kinds of event logs: Alarm, Motion, Video Loss, Hard Disk Full, Power on/off and User Log in/out. To view the event log, press “Event” button to invoke the Event Log Dialog as shown in below. Use buttons or “Shuttle”... -
Page 43: Ptz Control
10. PTZ Control The system support different models of speed dome (Current available models: EverFocus EPTZ series, ED2200. Pelco D protocol dome, C1487M. Kalatel Cyber Dome. Philips Auto Dome. Samsung SCC-641P, SPD-2500. Subject to further notice if there is update support protocol) that allows users to operate the basic function of PTZ camera through the front panel or remote AP. -
Page 44: View From Internet / Intranet
11. View from Internet / Intranet Basic Operations and Login Display: Go to the Internet Explorer, key in the network IP address, for example, http://192.168.10.5 (must be the same IP address as the one assigned to the unit from the Network Setting Menu.) The “... -
Page 45: Main Screen
Main Screen Above diagram is the main screen display. The icons on the lower corner of the screen are mainly for control and Configuration, those on the right corner are for status indication. If any icon is grayed, it means that the specific function is not accessible in the current mode. - Page 46 REV. PLAY : Reverses video display STOP : Press this key to stop video display PAUSE: Press this key to pause the Video display PLAY: Playing the Video display Step Forward the Video display Fast Forward: fast forward the Video display Remote/Local: select either Remote or Local display Full screen / Quad screen / Sever split screen / Nine split screen / Sixteen split screen view OSD: Enable On Screen Display text...
- Page 47 HDD Mode: Display current Hard Drive storage status Search Function Panel: Search Mode showing Event List, Date Range, and Play Back Panel Event List: List the Event History and time stamps Date Time: Ask user to input Date and Time begin to end time...
- Page 48 REV. PLAY : Reverses video display STOP : Press this key to stop video display.. PAUSE: Press this key to pause the Video display. PLAY: Playing back the Video . Step Forward the Video display. Fast Forward: fast forward the Video display. PLAY PANNEL : Play Panel Control Area PTZ Functions: PTZ Panel to Preset, sequentially presend camera, Iris control, Auto Pan control...
- Page 49 Zoom In: Zoom in to enlarge the displayed image Zoom Out: Zoom out the displayed image Preset: Preset Camera mode Sequence Preset: set up the display Sequence Iris: Iris Control, user can Increase or Decrease the IRIS setting by clicking Auto Pan: Select High/Middle/Low from the pull-down menu, then click to enable the Auto Pan function...
-
Page 50: Lan Functional Specification
Appendix A: LAN Functional Specification Specifications: Network Interface: 10/100 Mbps Ethernet (10/100 Base-T) LAN controller Chip: RealTek 8019 LAN Connector: RJ-45 Protocol: HTTP,TCP/IP.ICMP,ARP Remote Access: Standard browser such as internet Explorer / Netscape with JAVA support Image Compression: JPEG Used Ports: 80, 1111, 2222, 3333, 4444, 6666 Max. -
Page 51: Appendix B: Recording Time Table
Appendix B: Recording Time Table Time Lapse Mode Recording Time (system storage:160GB) (Estimated with typical image – low noise level) NTSC Unit: Hour Recording Speed Level 0 (fps) 6.72 13.8 27.6 41.3 68.9 137.8 206.7 413.4 Recording Speed Level 0 (fps) 6.72 13.8... - Page 52 Time Lapse Mode Recording Time (system storage:320GB) (Estimated with typical image – low noise level) NTSC Unit: Hour Recording Speed Level 0 (fps) 6.72 27.6 55.1 82.7 137.8 275.6 413.4 826.7 Recording Speed Level 0 (fps) 6.72 27.6 55.1 82.7 137.8 275.6 413.4...
-
Page 53: Appendix C: Simulated Keyboard
Appendix C: Simulated Keyboard There are situations that the user will be asked to enter a numeric or alphanumeric string. So, a Simulated Keyboard is designed for the user to use the mouse for all the operations. Please refer to the following diagram for the details. -
Page 54: Appendix D: Q & A
Appendix D: Q & A Q: Do I need a fix IP address to set up the machine? A: Yes, Only a fixed IP address is available for the system. Q: What are IP address, Submask, Gateway, and DNS and what parameter should I use to set up the system ? A: Please refer to chapter 6 of System-Network Setup section for more detail description. - Page 55 EverFocus Electronics Corp. Head Office: 12F, No.79 Sec. 1 Shin-Tai Wu Road, Hsi-Chi, Taipei, Taiwan : +886-2-26982334 : +886-2-26982380 www.everfocus.com.tw USA Office: 2445 Huntington Drive, San Marino, CA 91108, U.S.A. : +1-626-844-8888 : +1-626-844-8838 www.everfocus.com European Office: Albert-Einstein-Strasse 1 D-46446 Emmerich, Germany...
