EverFocus EDR410H Operator's Quick Manual

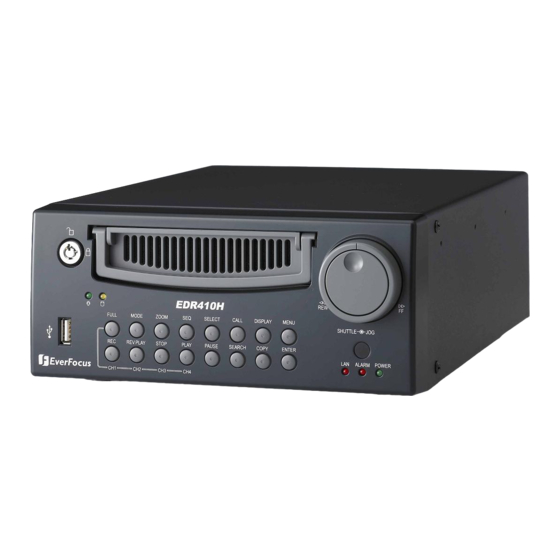

Front Panel
(Drawing shows EDR-810, EDR-410 similar, but without CH5~CH8 keys.)
Channel Key: Press FULL+Channel Key (EDR410: CH1~CH4 , EDR810:
1 ~ 8
CH1~CH8)) to display video image in full screen
1
CH1 / REC: Press to start recording mode
CH2 / REV. PLAY: Reverse playback
2
3
CH3 / STOP: Press to stop recording and playing back
CH4 / PLAY: Playback
4
5
CH5 / PAUSE: Press to pause the playback picture
CH6 / SEARCH: Press to enter the SEARCH menu
6
7
CH 7 / COPY: Press to open the COPY menu for video export, in
PLAYBACK mode COPY key saves current time/date for export
CH8 / ENTER: Press to enter items or to jump to the next subentry in
8
the menu setting.
FULL: Hold this key and press channel key to switch to full screen in both
9
live and playback mode. Press MODE to exit full screen
10 MODE: Switch PIP, 4, 7, and 8 displays in Live and Playback mode
EDR-410/810 Operator's Quick Guide
ZOOM: Press during full screen image display to enlarge the picture on the
11
monitor. "Full screen" mode must be selected to enable zooming. While
zooming, all other function keys will be disabled until ZOOM is pressed
again to exit the ZOOM mode.
12 SEQ: Press to enter the auto sequential switching mode
SELECT: Press to select, to assign a camera to a display, to adjust
13
screen display, etc.
14 CALL: Press to enter and set up CALL menu
15
DISPLAY: Press to switch channel display and/or status bar.
16
MENU: Press to enter or quit MAIN SETUP menu
17
HDD LOCK: HDD lock and HDD power switch
Hard Disk Tray
18
19 Jog and Shuttle Dial
Shuttle: In Playback mode, turn the Shuttle dial to fast
forward/rewind the video. In Pause mode, turn the Shuttle dial
slowly forward/rewind the video. In Search mode, turn the Shuttl
dial to change pages.
Jog Dial: In Pause mode, turn the Jog dial to forward/rewind th
video. In Menu mode, turn the Jog dial to change settings and
values in subentries.
USB Slot: Insert a USB to archive an image or video file.
20
HDD LEDs: LEDs for HDD active power (GREEN) and data reading /writing
21
(YELLOW)
22 Remote Control: IR remote control receiver
23 System LEDs: LEDs for system active POWER , LAN and ALARM display
