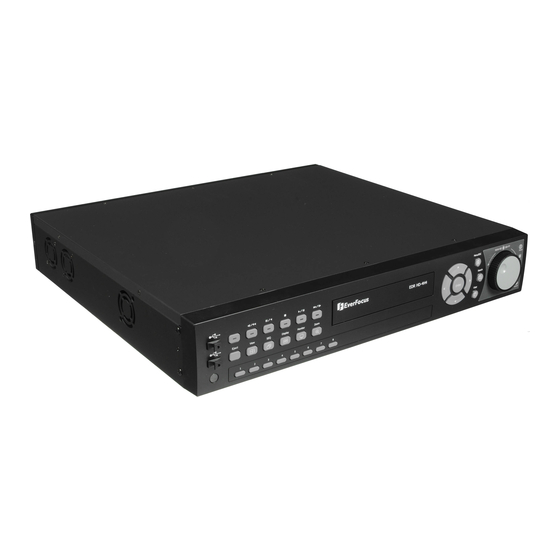

EverFocus EDR HD-4H4 Quick Reference Manual

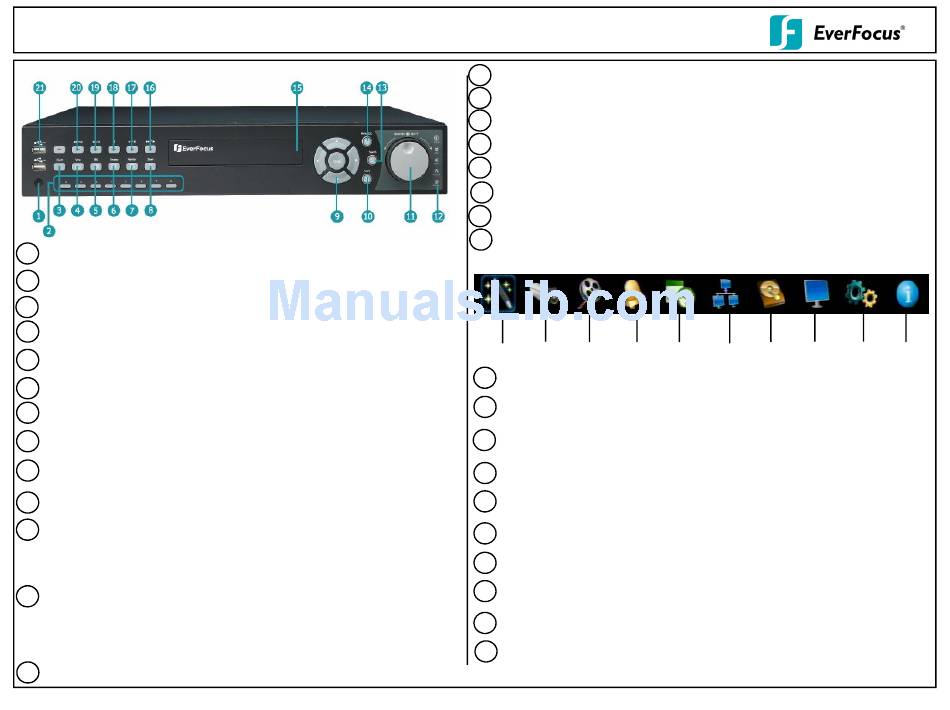

Operating elements
Remote Control Receiver: Receiver for IR remote control
1
Channel keys 1~8: Press channel key (CH1~CH8) to display that channel in full
2
screen view.
3
DVD Eject: Press this button to eject the DVD.
View: Press this key to switch between 4x, PiP (Picture In Picture), full screen, 9x,
4
6ch, 7ch and 8ch.
SEQ: Press this key to enter the auto sequential switching mode. The sequence dwell SEQ: Press this key to enter the auto sequential switching mode. The sequence dwell
5
time can be set in "Display Setting" tab of the Menu.
6
Display: Press this key to switch display of channels and status bar.
Monitor: Switch between Main monitor and Call monitor
7
Zoom: In full screen mode, 2x electronic zoom. Zoom screen can be moved through
8
arrow keys. Pressing the zoom key again switches the electronic zoom off.
9 Menu Navigation Keys: Instead of or in combination with a mouse, you can use these
keys to change the Menu settings.
10
Copy: Press this key to enter Copy Menu
JOG/SHUTTLE: Shuttle (outer wheel): In playback mode, use the SHUTTLE for fast
11
forward / fast reverse playback.
JOG (inner wheel): In PAUSE mode, use the jog to move frame by frame. Within
menu functions, use the jog to adjust the values / parameters. Use Jog to highlight
individual cameras. Use either Shuttle or Jog to switch between MENU parameters.
System LED
12
POWER: LED indicating power on
HDD: LED indicating HDD active
Alarm: LED indicating Alarm active
Network: LED for network traffic
Record: LED indicating Record active
13 Search: Press this key to enter Search Menu
EDR HD-4H4

Quick Reference Guide

Menu/ESC: Press this key to enter/exit MAIN SETUP MENU
14
15 DVD burner: DVD+RW burner
16
►►/I►: Fast Forward playback or step forward playback depending on playback mode
17
►/ I I: Forward playback or pause
■ ■ ■ ■
18 : Stop playback
19 I I / ◄: Reverse playback or pause
20 ◄I /◄◄: Fast reverse playback or step reverse playback depending on playback mode
21 USB ports: For connecting USB-Flash-Drive to copy/archive video or for firmware upgrades
Description of on-screen main menu (control bar)
4 4
1 1 2 2 3 3
1 Express menu (manual chapter 4.2)
Camera menu (manual chapter 4.3)
2
3 Record & Play menu (manual chapter 4.4)
4 Alarm & event menu (manual chapter 4.5)
5
Schedule menu (manual chapter 4.6)
6
Network menu (manual chapter 4.7)
Disk menu (manual chapter 4.8)
7
8
Display menu (manual chapter 4.9)
9 System menu (manual chapter 4.10)
10
Information menu (manual chapter 4.11)
6 6 7 7 8 8
5 5
