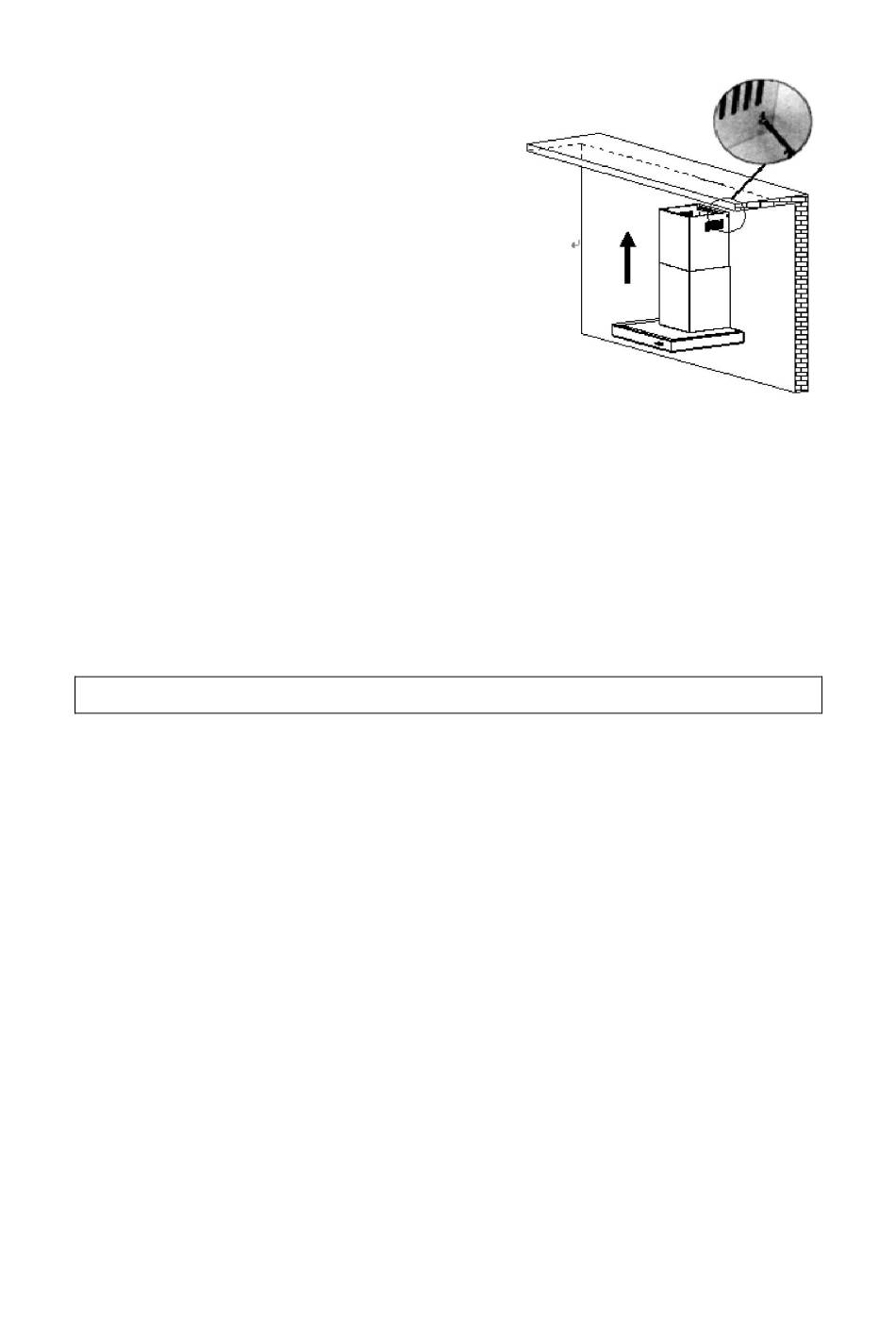

8) Installing the fixing bracket F
* Screw the chimney section D and fixing
bracket F. Insert chimney section C and
lift it upwards until it reaches the ceiling.
You must ensure that it is perpendicular
to the hood. Use a pencil to mark the
holes for positioning the sides of the
chimney D and fixing bracket F. Remove
the himney section adn fixing bracket F.
- Use an 8mm bit, drill out holes marked
on the wall, and insert raw plugs. Screw
the chimney bracket F onto the wall.
9) Insert Chimney D into Chimney C and
lift it upwards until it reaches the ceiling.
Screw the chimney bracket F tightly.
5.4. EXTRACTION MODE OR RECIRCULATION MODE
What is the difference between extraction and recirculation modes?
To get optimum performance form your cooker, the air will be taken out of the room
via external ducting.
Unfortunately if you live in a flat or the hood is too far from an outside wall, this may
not be possible. The only alternative is to recirculate the air.
In recirculation mode stale air is taken via the grease filter, and passed through a
charcoal filter for purification. The air then re-enters the kitchen via an opening in the
hood.
What is a charcoal filter and do I need one?
All cooker hoods have a grease filter but if you are using your cooker hood in
recirculation mode, then a charcoal filter must be fitted in addition to the grease filter.
