RH Baby&child ASHBY 0313 - 14/10 Instructions Manual

Conversion crib
Hide thumbs

Advertisement

Quick Links

Download this manual
Made in Vietnam
Model No: 0313 - 14/10
Distributed in the U.S.A by:
RH Baby&Child
2900 N MACARTHUR DRIVE
TRACY, CA 95376
www.rhbabyandchild.com
Distributed in Canada by:
RH Canada, Inc.
1500-1055 West Georgia Street
Vancouver, British Columbia
V6E4N7
W A RN I N G : Read a ll
I nstr u ct io ns be for e as s e mb l in g
this pr o du ct .
KEEP IN S TR UCT I O NS F O R
FUTUR E USE .
1. Read all instructions before assembly crib. Keep instructions for future use.
2. Never use plastic shipping bags or other plastic film as mattress covers because they can cause suffocation.
3. Infants can suffocate in gaps between crib sides and a mattress that is too small.
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact us first. You can also order parts by writing to
the address above. Include the product model number, color, and a brief description of the part. Or call 1-800-762-1751.
CARE AND CLEANING
DO NOT scratch or chip the finish. DO NOT use abrasive chemicals for cleaning. If the crib is to be stored, store in a cool,
dry place and carefully package all original hardware to protect from loss.
TOOLS AND INSTALLATION
Tools needed: Key Wrench (included).
Two people are recommended for assembly.
When inserting bolts, turn clockwise until tight. Then loosen 1/2-3/4 of a turn. After bed is completely assembled,
return to each bolt and tighten.

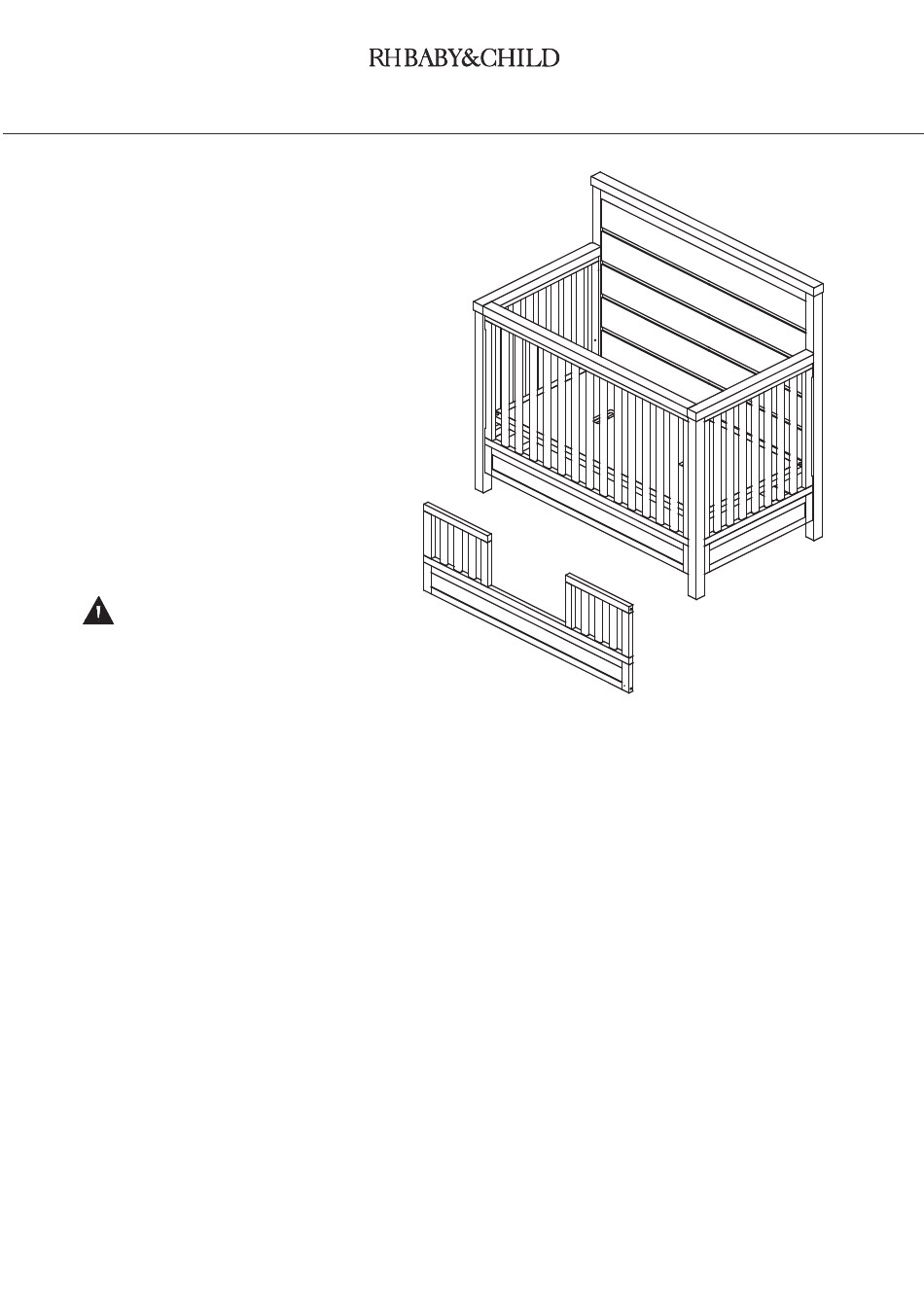

AS H BY CO N V E RS I ON C RIB
TODDLER BED KIT (SOLD SEPARATELY)
Page 1 of 22
