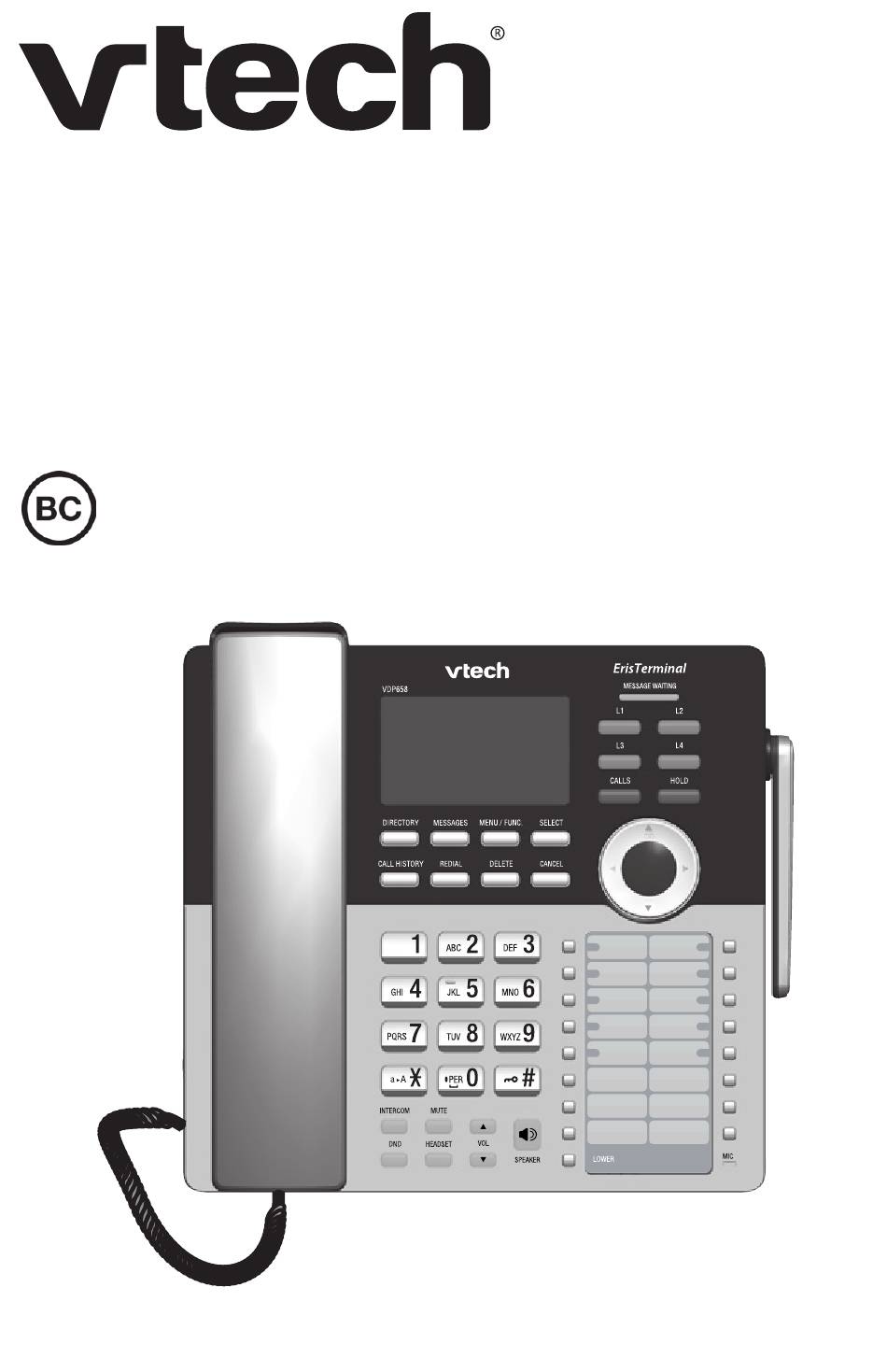

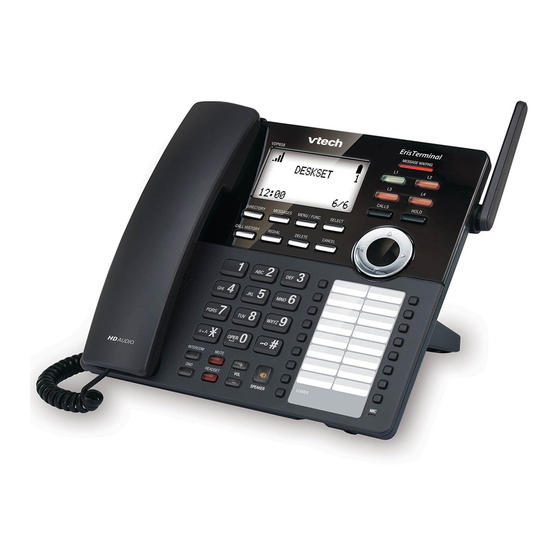

  • Page 1 ErisTerminal SIP DECT Cordless 4-Line Deskset ® VDP658 Quick Start Guide...

  • Page 2: Important Safety Information

    Important Safety Information This symbol is to alert you to important operating or servicing instructions that may appear on the product or in this user’s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock. Important Safety Instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following:...
  • Page 3 12. To reduce the risk of electric shock, do not disassemble this product, but take it to an authorized service facility. Opening or removing parts of the handset other than specified access doors may expose you to dangerous voltages or other risks.
  • Page 4 20. For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible. 21. In wall mounting position, make sure to mount the telephone base on the wall by aligning the eyelets with the mounting studs of the wall plate. Then slide the telephone base down on both mounting studs until it locks into place.
  • Page 5 14. Débranchez cet appareil de la prise de courant et communiquez avec le département de service à la clientèle de VTech dans les cas suivants: Lorsque le cordon d’alimentation est endommagé ou écorché.
  • Page 6 est déposé sur le combiné. Ceci est un événement commun associé avec la fermeture d’un circuit électrique. L’utilisateur ne devrait pas brancher le téléphone dans une prise de courant, et ne devrait pas déposer le combiné chargé sur le socle, si le téléphone se trouve dans un environnement ou la concentration de gaz inflammables, sans ventilation adéquate.
  • Page 7 Compliance FCC part 15 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 8: About This Guide

    The VDP658 SIP DECT Cordless 4-Line Deskset is for use with the VDP650 SIP DECT 4-Line Base Station. Please refer to the VDP650/VDP651 SIP DECT Base Station and Cordless Deskset User Guide for complete operation instructions. businessphones.vtech.com You can download user guides from For customer service or product information, visit our website at businessphones.vtech.com...

  • Page 9: Deskset Overview

    Quick Reference Guide Deskset overview MESSAGE WAITING Flashes when a line has a new voice message. L1 - L4 Programmable feature keys, preprogrammed as line keys for accessing shared calls. CALLS Press to display a list of active VSP608 shared calls. HOLD Puts the active call on hold.
  • Page 10 Quick Reference Guide Deskset overview SPEED DIAL KEYS Press to dial the desired speed dial number. LOWER When assigning or dialing a speed dial number, press to switch to the lower lcation (the second 16 locations) of a speed dial key. INTERCOM VOL pq Press to display the intercom list.

  • Page 11: Deskset Installation

    Deskset Installation This section assumes that your network infrastructure is established and that your IP PBX phone service has been ordered and configured for your location. Deskset installation involves both the backup battery and the deskset. The deskset is powered using the supplied power adapter. The deskset can be placed on a flat surface or mounted on a wall.

  • Page 12: Battery Charging

    Use only the supplied rechargeable battery or replacement battery (model BT266342). To order a replacement battery, visit our website at businessphones.vtech.com or call 1 (888) 370-2006. • If you do not use the deskset for a long time, disconnect and remove the battery to prevent possible leakage.
  • Page 13 Installing the deskset 1. Install the mounting bracket for tabletop use. Low tabletop position: Insert the fixed tabs of the mounting bracket into slots A and B . Press the flexible tabs into slots C and D until they click into place. Low tabletop position High tabletop position: Insert the fixed tabs of the mounting bracket into slots A and B .
  • Page 14 IMPORTANT INFORMATION 1. Use only the power adapter supplied with this product. To order a replacement power adapter, visit our website at businessphones.vtech.com 1 (888) 370-2006 or call 2. The power adapter is intended to be correctly oriented in a vertical or floor mount position.
  • Page 15 Wall mounting the deskset The deskset is ready for tabletop use. If you want to mount the deskset on a wall, make sure you first unplug the power adapter from the electrical outlet. To mount the deskset on the wall: 1.
  • Page 16 Adding a corded headset You can use this deskset hands-free when you install any industry-standard 2.5 mm corded telephone headset (purchased separately). Plug a 2.5 mm headset into the HEADSET jack on the side of the deskset. Registering the deskset to the base station The deskset must be registered to the base station in order to make and receive calls.
  • Page 17 Deregistering the deskset Before using the deskset with a different base station, you must deregister the deskset from the base station to which it is currently registered. To deregister the deskset: 1. Press MENU on the deskset. The Main Menu appears. 2.

  • Page 18: Screen Icons

    Screen icons The following screen icons indicate your phone’s current status: Icon Status Indicates signal strength, from one bar (weak) to four bars (strong). Flashes when out of range. Indicates battery strength from 1/3 to 3/3. Flashes when empty. The ringer is off. Headset—audio is coming through a headset after the HEADSET key was pressed.

  • Page 19: Maintenance

    Maintenance Taking care of your telephone • Your base station and cordless deskset contain sophisticated electronic parts, so you must treat them with care. • Avoid rough treatment. • Place the handset down gently. • Save the original packing materials to protect your products if you ever need to ship them.
  • Page 20 VTECH COMMUNICATIONS LTD. A member of THE VTECH GROUP OF COMPANIES. Distributed in the U.S.A. by VTech Communications Inc., Beaverton, Oregon 97008. VTech is a registered trademark of VTech Holdings Limited. ErisTerminal is a registered trademark of VTech Communications Inc.
