Summary of Contents for VTech VSP608

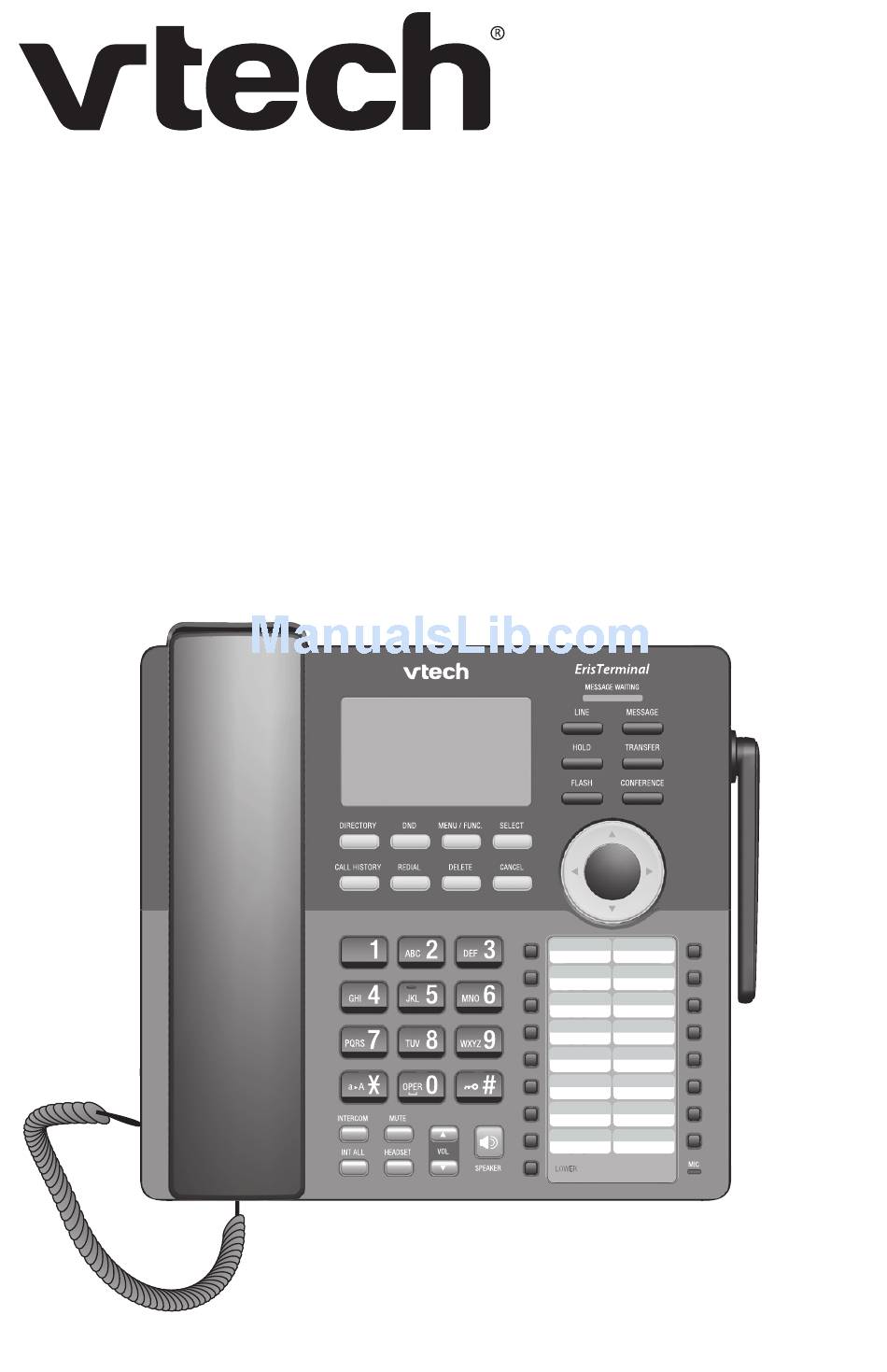

- Page 1 ErisTerminal SIP DECT Cordless Deskset ® VSP608 Quick Start Guide VSP608 LOWER...
-
Page 2: Important Safety Information
Important Safety Information This symbol is to alert you to important operating or servicing instructions that may appear on the product or in this user’s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock. Important Safety Instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following:... - Page 3 12. To reduce the risk of electric shock, do not disassemble this product, but take it to an authorized service facility. Opening or removing parts of the handset other than specified access doors may expose you to dangerous voltages or other risks.
- Page 4 20. For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible. 21. In wall mounting position, make sure to mount the telephone base on the wall by aligning the eyelets with the mounting studs of the wall plate. Then slide the telephone base down on both mounting studs until it locks into place.
- Page 5 For cUL compliance only Mesures de sécurité importantes Ce symbole vous alertera d’informations importantes ou d’instructions d’entretien pouvant apparaître dans ce guide d’utilisation. Respectez toujours les mesures de sécurité et de sécurité de base lorsque vous utilisez ce produit, afin de réduire les risques de blessures, d’incendie, ou d’électrocution.
- Page 6 14. Débranchez cet appareil de la prise de courant et communiquez avec le département de service à la clientèle de VTech dans les cas suivants: Lorsque le cordon d’alimentation est endommagé ou écorché.
- Page 7 19. N’utilisez que cordon d’alimentation et les piles indiquées dans ce guide d’utilisation. Note de l’adaptateur: 6.0 Vdc @ 600 mA 20. Pour les PRODUITS À BRANCHER À UNE PRISE DE COURANT, la prise de courant doit être installée près du produit, afin d’assurer une accessibilité sécuritaire à...
- Page 8 Compliance FCC part 15 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 9: About This Guide
About this Guide This quick start guide provides a reference for the external features of the VSP608 SIP DECT cordless deskset and installation instructions. The VSP608 SIP DECT cordless deskset is for use with the VSP600 SIP DECT base station. Please refer to the VSP600/VSP608 SIP DECT Base Station and Cordless Deskset User Guide for complete operation instructions. -
Page 10: Deskset Overview
Quick Reference Guide Deskset overview MESSAGE WAITING Flashes when a line has a new VSP608 voice message. LINE Displays the Dialing Line menu. MESSAGE Displays the Message menu. HOLD Puts the active call on hold. TRANSFER Starts the transfer process. - Page 11 Quick Reference Guide Deskset overview SPEED DIAL KEYS Press to dial the desired speed dial number. LOWER When assigning or dialing a speed dial number, press to switch to the lower lcation (the second 16 locations) of a speed dial key. LOWER INTERCOM VOL pq...
-
Page 12: Deskset Installation
Deskset Installation This section assumes that your network infrastructure is established and that your IP PBX phone service has been ordered and configured for your location. Deskset installation involves both the backup battery and the deskset. The deskset is powered using the supplied power adapter. The deskset can be placed on a flat surface or mounted on a wall. - Page 13 Use only the supplied rechargeable battery or replacement battery (model BT266342). To order a replacement battery, visit our website at businessphones.vtech.com or call 1 (888) 370-2006. • If you do not use the deskset for a long time, disconnect and remove the battery to prevent possible leakage.
- Page 14 Installing the deskset 1. Install the mounting bracket for tabletop use. Low tabletop position: Insert the fixed tabs of the mounting bracket into slots A and B . Press the flexible tabs into slots C and D until they click into place. Low tabletop position High tabletop position: Insert the fixed tabs of the mounting bracket into slots A and B .
- Page 15 IMPORTANT INFORMATION 1. Use only the power adapter supplied with this product. To order a replacement power adapter, visit our website at businessphones.vtech.com 1 (888) 370-2006 or call 2. The power adapter is intended to be correctly oriented in a vertical or floor mount position.
- Page 16 Wall mounting the deskset The deskset is ready for tabletop use. If you want to mount the deskset on a wall, make sure you first unplug the power adapter from the electrical outlet. To mount the deskset on the wall: 1.
- Page 17 Adding a corded headset You can use this deskset hands-free when you install any industry-standard 2.5 mm corded telephone headset (purchased separately). Plug a 2.5 mm headset into the HEADSET jack on the side of the deskset. Registering the deskset to the base The deskset must be registered to the base station in order to make and receive calls.
-
Page 18: Screen Icons
5. Highlight the name of the deskset you want to deregister, and then press SELECT. 6. On the deskset, enter the System PIN and then press SELECT to begin deregistration. The default PIN is 1592. The deregistration process takes up to 10 seconds to complete. When the deskset deregisters, it beeps and the screen displays Handset is deregistered, followed by the registration instructions. -
Page 19: Maintenance
Maintenance Taking care of your telephone • Your base station and cordless deskset contain sophisticated electronic parts, so you must treat them with care. • Avoid rough treatment. • Place the handset down gently. • Save the original packing materials to protect your products if you ever need to ship them. - Page 20 VTECH COMMUNICATIONS LTD. A member of THE VTECH GROUP OF COMPANIES. Distributed in the U.S.A. by VTech Communications Inc., Beaverton, Oregon 97008. VTech is a registered trademark of VTech Holdings Limited. ErisTerminal is a registered trademark of VTech Communications Inc.
