VTech VSP600A Quick Start Manual

Sip dect base station and cordless handset
Hide thumbs Also See for VSP600A:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Configuration Manual
ErisTerminal
SIP DECT Base Station
®
and Cordless Handset
VSP600A

Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VSP600A and is the answer not in the manual?

Questions and answers

Related Manuals for VTech VSP600A

Summary of Contents for VTech VSP600A

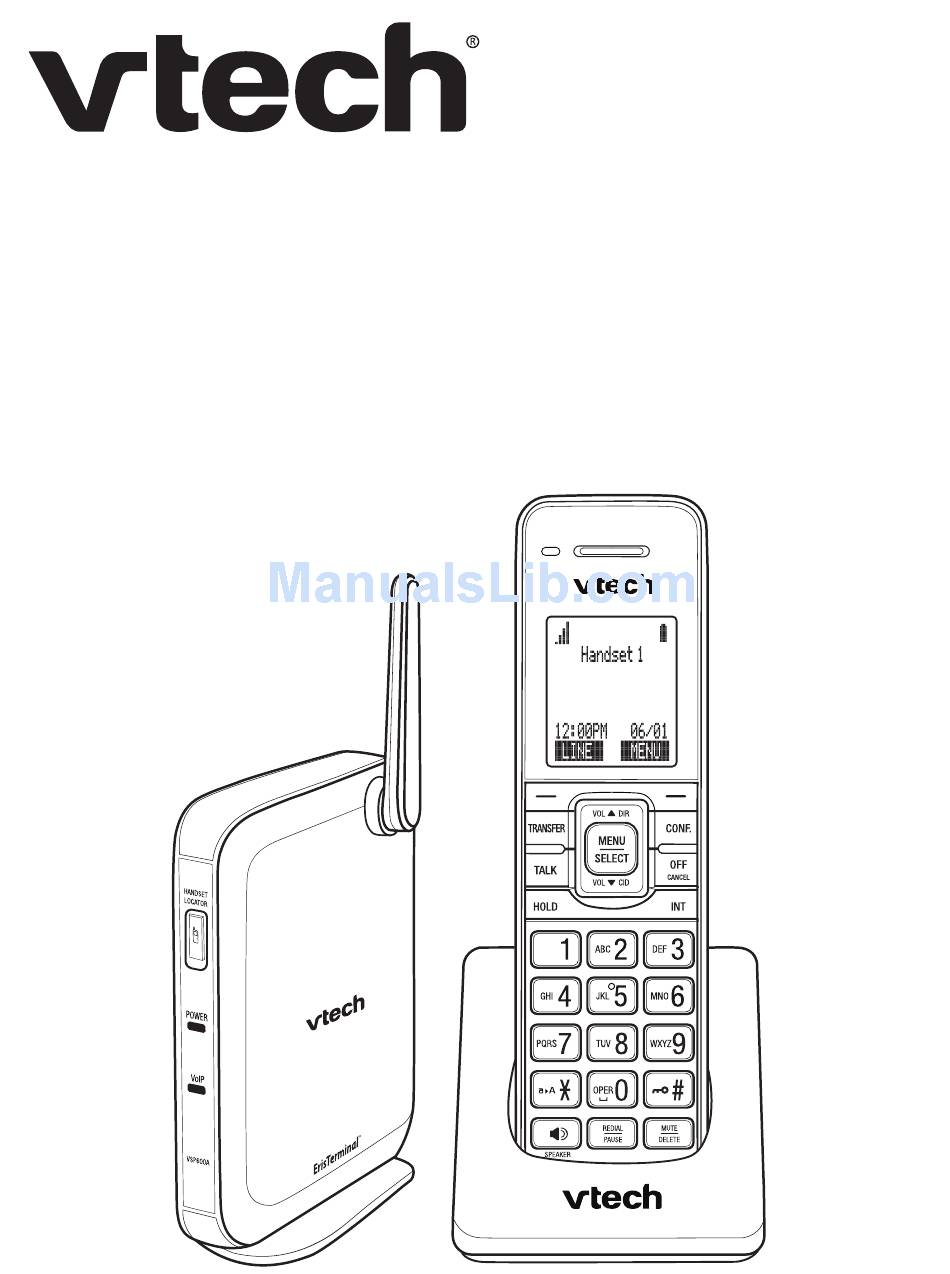

  • Page 1: Quick Start Guide

    ErisTerminal SIP DECT Base Station ® and Cordless Handset VSP600A Quick Start Guide...

  • Page 2: Important Safety Information

    Important Safety Information This symbol is to alert you to important operating or servicing instructions that may appear on the product or in this user’s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock.
  • Page 3 11. Never push objects of any kind into this product through the slots in the base station or handset because they may touch dangerous voltage points or create a short circuit. Never spill liquid of any kind on the product. 12.
  • Page 4 17. Only put the handset of your telephone next to your ear when it is in normal talk mode. 18. The power adapters are intended to be correctly oriented in a vertical or floor mount position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-the-table or cabinet outlet.

  • Page 5: Declaration Of Conformity

    Declaration of Conformity Hereby, VTech declares that this VSP600A is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

  • Page 6: About This Guide

    This quick start guide provides a reference for the external features of the base station and handset and basic installation instructions. Please refer to the VSP600A/VSP601A User Guide for complete installation and operation instructions. For customer service or warranty service, please contact our regional offices or distributors in the country or region where you purchased your product.

  • Page 7: Quick Reference Guide

    Quick Reference Guide Base station external features Antenna Wall mount slot (on top) Handset Locator button Use only Supplied Adapter Press to ring the handsets. AC adapter input Press and hold to register Reset button a handset. RESET Press to reset. Power LED Hold for 15 seconds to Flashes when joining the...
  • Page 8 Quick Reference Guide Cordless handset external features MESSAGE LED Flashes when a line has a new voice message. HEADSET JACK 2.5 mm jack for connecting a corded headset. SOFT KEYS VOL p DIR Perform the actions indicated While in menus, press by the on-screen labels.

  • Page 9: Base Station Installation

    IP PBX phone service has been ordered and configured for your location. For more information about IP PBX configuration, see the VSP600A/VSP601A Administrator and Provisioning Manual. You can power the base station using a compatible VTech power adapter (purchased separately ) or using Power over Ethernet (PoE) from your from your distributor or dealer network.
  • Page 10 ), and plug the other end of the cable into your network router or switch. 2. If the base station is not using power from a PoE-capable network router or switch: a. Connect a compatible VTech power adapter (purchased separately from your ) to the base station power jack.
  • Page 11 3. Attach the mounting plate to the top of the base station. Insert the tab into the slot and then push the plate in at the bottom of the base station until the mounting plate clicks into place. Insert tab into slot. 4.

  • Page 12: Handset Installation

    This section assumes that your network infrastructure is established and that your IP PBX phone service has been ordered and configured for your location. For more information about IP PBX configuration, see the VSP600A/VSP601A Administrator and Provisioning Manual. Handset installation involves both the the handset and the handset charger. The charger is powered using the supplied power adapter.
  • Page 13 IMPORTANT INFORMATION 1. Use only the power adapter supplied with this product. 2. The power adapter is intended to be correctly oriented in a vertical or floor mount position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-the-table or cabinet outlet.
  • Page 14 To install the handset battery: 1. Plug the battery connector securely into the socket inside the handset battery compartment. Insert the supplied battery with the label THIS SIDE UP facing up as indicated. 2. Align the cover flat against the battery compartment, then slide it upwards until it clicks into place.
  • Page 15 Wall mounting the charger The charger is ready for tabletop use. If you want to mount the charger on a wall, use two 10 mm (3/8 inch) screws and wall anchors to hold the charger in place. Screws and wall anchors are not provided, but are available for purchase in many hardware or consumer electronics retailers.
  • Page 16 Adding a corded headset You can use this handset hands-free when you install any industry-standard 2.5 mm corded telephone headset (purchased separately). Plug a 2.5 mm headset into the HEADSET jack on the side of the handset.

  • Page 17: Handset Registration

    Handset Registration Registering the handset to the base station The handset is pre-registered to the base station. If the handset becomes deregistered, perform the registration procedure as follows. To register the handset: 1. Make sure the handset has a charged battery before proceeding. Make sure the base station is connected to power.
  • Page 18 Deregistering the handset Before using the handset with a different base station, you must deregister the handset from the base station to which it is currently registered. To deregister the handset: 1. Press MENU on the handset. The Main Menu appears. Registration 2.

  • Page 19: Maintenance

    Maintenance Taking care of your telephone • Your base station and cordless handset contain sophisticated electronic parts, so you must treat them with care. • Avoid rough treatment. • Place the handset down gently. • Save the original packing materials to protect your products if you ever need to ship them.
  • Page 20 A member of THE VTECH GROUP OF COMPANIES. VTech is a registered trademark of VTech Holdings Limited. ErisTerminal is a registered trademark of VTech Communications Inc., registered in the United States. ® Specifications are subject to change without notice. Copyright © 2015 for VTech Telecommunications Ltd. All rights reserved.
