Altronix HubWayLD8CDS Installation Manual page 7

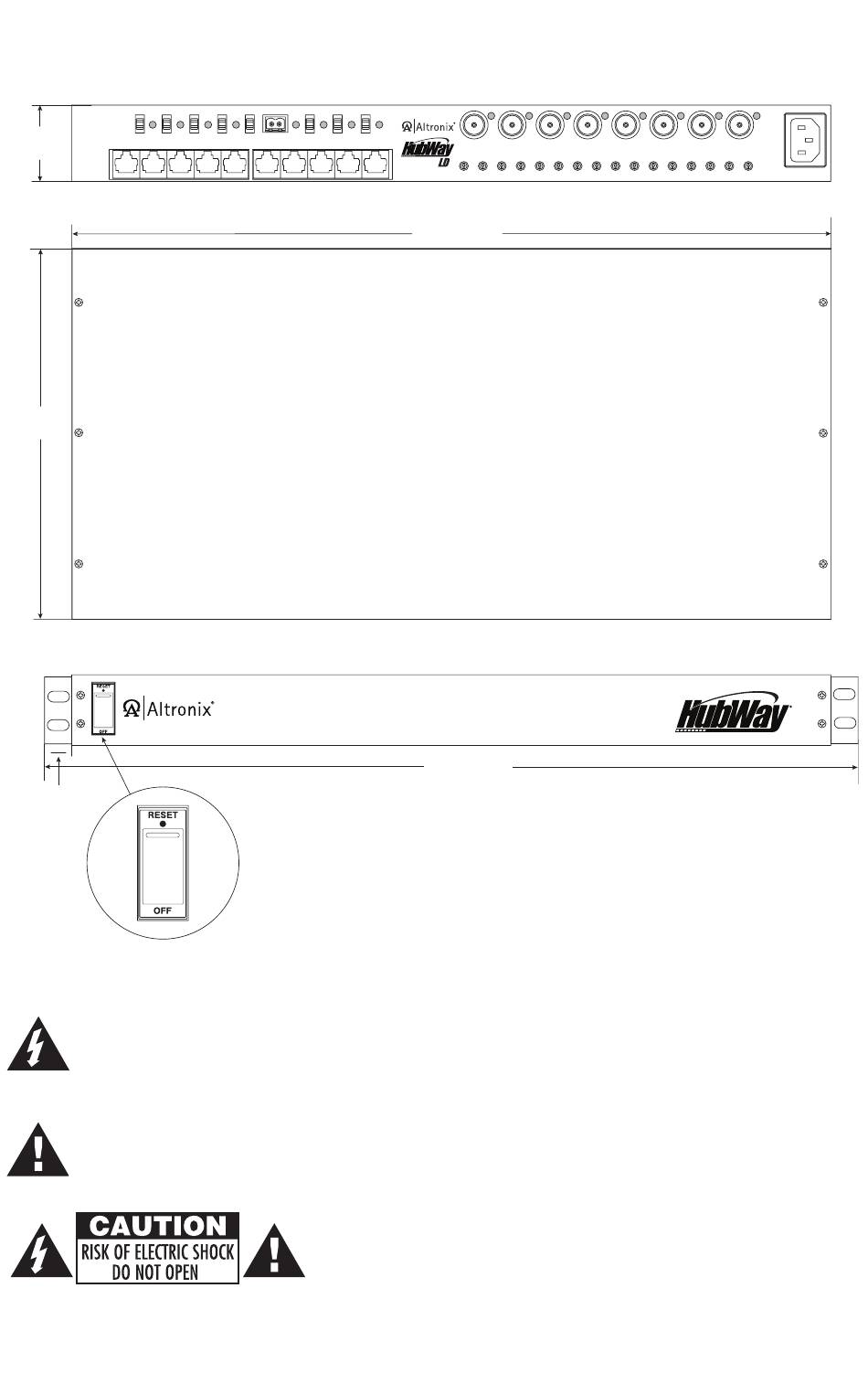

1U EIA 19" Rack Mount Chassis Dimensions (H x W x D approximate):
24VAC
OFF
28VAC
1.625"
CH 5-8
8
(41.3mm)
8.5"
(215.9mm)
0.75"
(19.05mm)
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user
to the presence of an insulated DANGEROUS VOLTAGE within the product's enclosure that may
be of sufficient magnitude to constitute an electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying
the appliance.
HubWayLD8CDS
1.625" x 19.125" x 8.5" (41.3mm x 486mm x 216mm)
-- DATA +
1-8
CH 1-4
7 6 5 4 3
Fig. 5
Illuminated master power disconnect circuit breaker:
• OFF position Circuit breaker tripped – Switch not illuminated.
• RESET (ON) position – Switch illuminated.
CAUTION: To reduce the risk of electric shock do not open
enclosure. There are no user serviceable parts inside. Refer servicing
to qualified service personnel.
REAR
2 1
8 7
PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE
17.125" (435mm)
TOP & BOTTOM
FRONT
19.125" (486mm)
6 5 4 3 2
GAIN PICTURE GAIN PICTURE GAIN PICTURE
1
AC POWER
GAIN
- 7 -
