BEYES Maxso E600P Instructions For Use Manual

Electric micromotor system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Maxso
E600P
®

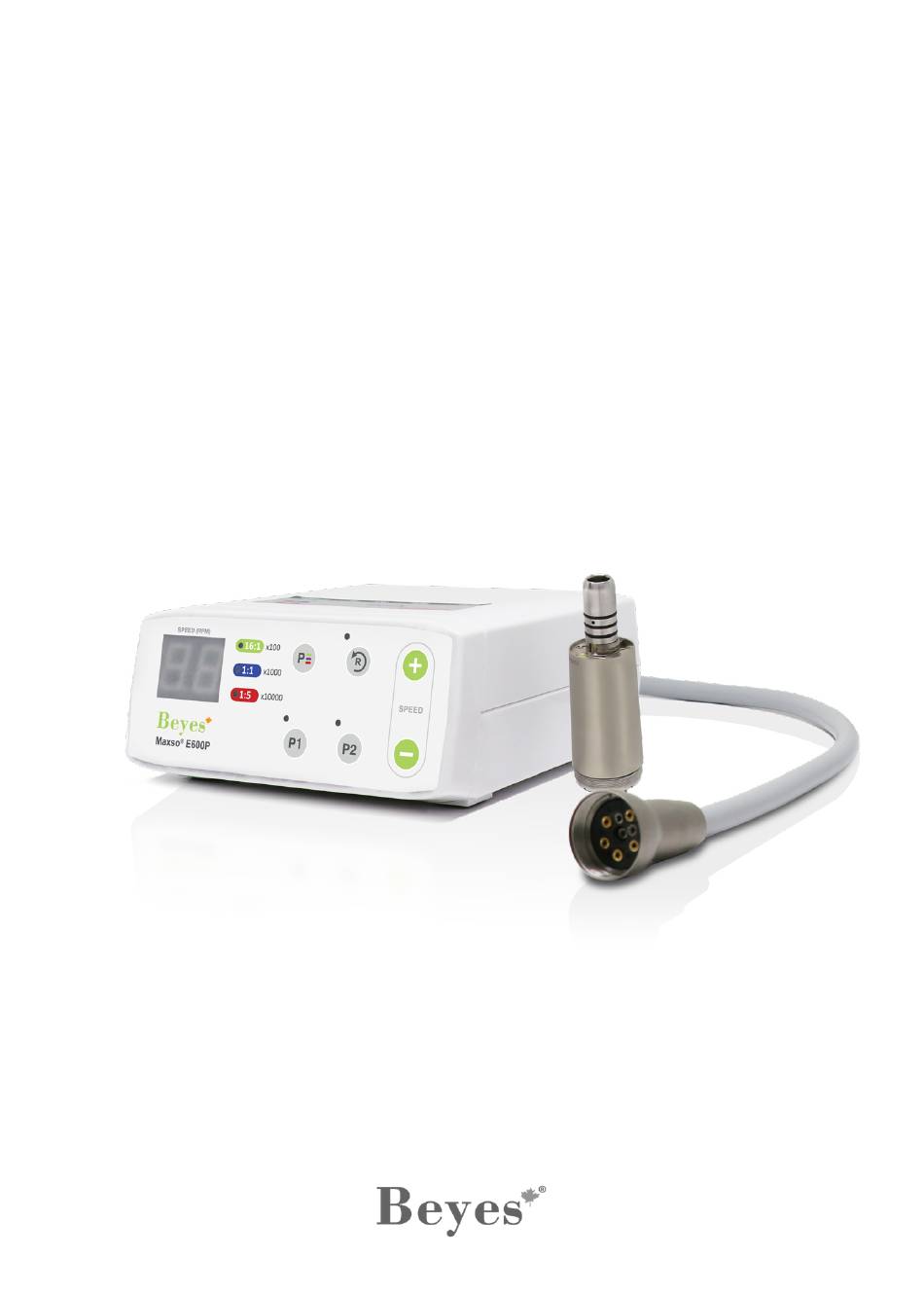

Electric Micromotor System
Instruction for Use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Maxso E600P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BEYES Maxso E600P

Summary of Contents for BEYES Maxso E600P

  • Page 1 Maxso E600P ® Electric Micromotor System Instruction for Use...
  • Page 2 Operation Manual • Equipment Classification - Class II equipment: - Type B shock protection: - Recommended sterilization: See 7. Sterilization - Do not use in the presence of flammable liquids or gases. Cautions for safe handling and operation Read these safety precautions first before using this product. These instructions will show you how to operate this product safely and prevent injury to yourself or others.

  • Page 3: Specifications

    - Do not autoclave (or any other high temperature sterilization) Control Box, AC Adaptor, Motor Code. - The user shall be responsible for operation and maintenance and inspection. 1. Specifications Model Maxso E600P Speed 2,000 ~ 40,000 rpm Torque 3.4 Ncm...

  • Page 4: Component Names

    2. Component Names Control Box Motor Digital Speed Display 10. Motor Cord Gear Ratio Lamp 11. Power Switch Gear Ration Select Key 12. AC Adapter Connector FWD/REV Select Key 13. Motor Cord Connector Program 1 Button 14. Turbine Hose Connector Program 2 Button 15.

  • Page 5: Control Box Operation

    3. Control Box Operation Caution Make sure there is no residual air or water in the turbine hose when connecting it to the control box. Hand tighten the nut properly without excessive force when connecting the turbine hose and the motor cord connector.

  • Page 6: Operation

    4. Handling the Motor 4-1 Connecting/Disconnecting the motor and motor cord. Align and insert the motor pin firmly into the pin holes of the Motor Cord Motor Cord Motor Connector motor cord connector and fasten the motor cord nut securely. To remove the motor cord from the motor, unscrew and detach the motor cord nut, and gently pull out the motor cord connector.
  • Page 7 Digital Speed Display 5-4 Set the maximum speed using the Rotation Adjustment Increase Key (+/-). 5-5 Select FWD/REV rotation using the FWD/REV Select key. Decrease 5-6 The micro motor operation is controlled by the air switch/ foot pedal of the delivery unit. FWD/REV Lamp 5-7 Program Function.

  • Page 8: Maintenance

    7. Maintenance If the O-Rings become worn, the motor might not connect well to the hand piece, or water may leak. Replace the O-Rings. Changing the O-Ring Remove the O-Ring at the motor insert with a pointed tool, and mount the new O-rings into the groove. Caution There are 4 O-Rings on the Motor Insert.

  • Page 9: Troubleshooting

    Motor start error Motor didn’t reach the preset Contact your dealer speed in the prescribed amount of time. Break down of the motor cord wire, or internal circuit malfunc- tion LED voltage error Voltage for the LED isn’t high Contact your dealer enough Air offset error Lower than preset ‘Lower limit of...
  • Page 10 10. Beyes Limited Warranty Statement 10.1 Scope of Warranty BEYES Dental Canada Inc. (‘BEYES’) warrants to the original retail purchaser that it will be at BEYES option to repair or replace components of the dental products manufactured by BEYES (except for components not warranted under ‘Exclusions’) that are defective in material or workmanship under...
  • Page 11 12) Products that would otherwise be covered under Sections 1 and 2 of this limited warranty, but are acquired: (i) from a person or entity that is not BEYES or one of its authorized dealers; or (ii) from a BEYES dealer that is not authorized to sell the product at issue in the geographic territory where the purchaser is located, or is not authorized to sell the product at issue within the medical, animal health or dental market, as the case may be, in which purchaser intends to use the product.
  • Page 12 Federal law restricts this device to sale by or on the order of a dentist, physician, or any other practitioner licensed by the law of the states in which he or she practices to use or order the use of this device. Beyes Dental Canada Inc. is not responsible for any typographical errors.
