BEYES EndoPilot Instructions For Use Manual

Cordless endodontic handpiece
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EndoPilot
Cordless Endodontic Handpiece
Instruction for Use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EndoPilot and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BEYES EndoPilot

Summary of Contents for BEYES EndoPilot

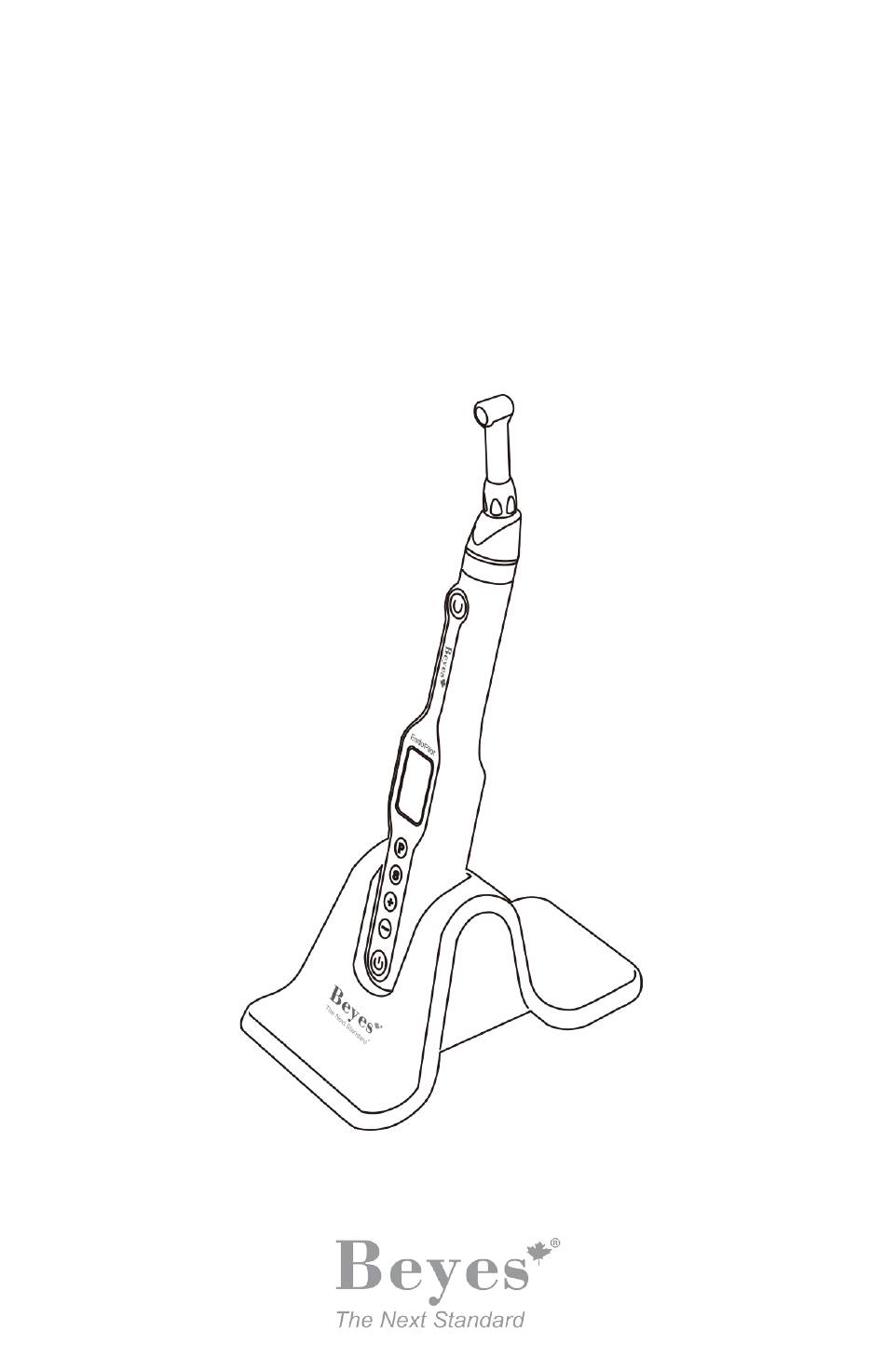

  • Page 1 EndoPilot Cordless Endodontic Handpiece Instruction for Use...
  • Page 2 Thank you for purchasing EndoPilot. Read this Operation Manual carefully before use for operation instructions and care and maintenance guidelines. Keep this Operation Manual for future reference. Application This product is a cordless handpiece used primarily for root canal enlargement.
  • Page 3 Symbols This conforms to CE European Directive of “Medical equipment directive 93/42/EEC.” 0197 Follow the waste of electric and electronic equipment (WEEE) Directive (2002/96/CE) to dispose of the product and accessories. Class II equipment Type B conforming component Refer to the Operation Manual Consult accompanying documents (user manual) Manufacturer Authorized representative in the European Community...

  • Page 4: Table Of Contents

    Table of Contents Cautions for handling and operation...... 5-6 Features ............7 Specification ........... 8-9 Name of each part .......... 9 Parts and its function ........10-12 Operations ............13-19 Convenient Function ........19-21 Cleaning ............22 Sterilization ............. 23 Changing Battery..........

  • Page 5: Cautions For Handling And Operation

    Cautions for handling and operation • Read these safety cautions thoroughly before use and operate the product properly. • These indicators are to allow you to use the product safely and prevent danger and harm to you and others. These are classified by degree of danger, damage and seriousness.
  • Page 6 • Keep the charging interface away from something conductive such as copper scrap. • Please use original charger to charge the battery. • Connect the handpiece to the charger base, the handpiece LED will indicate the charging state, if not, please refer to the trouble shooting. •...

  • Page 7: Features

    1. Features • Ergonomic design, small size. The max diameter less than 28mm. The head holding part is just 16mm.Therefore dentists can get better sight and more convenient operation • “Multi - position type head" allows direction of contra angle to be changed easily. •...

  • Page 8: Specification

    Battery Adaptor Adaptor Mode g DP06AH-0500500- EU Input Voltage 100-240 - 50/60Hz 0.25A Input Power 2.5vA Output Voltage DC5V/0. 5A Motor Handpiece MODE EndoPilot Input Voltage DC3.7V Input Power Max7VA Charging Time Approx.90. min Use environment Temperature 10-40 Humidity 10-70%(Non condensing)

  • Page 9: Name Of Each Part

    Rotation speed gear Min Rotation speed(rpm) Max Rotation speed(rpm) 2250 10:1 16:1 20:1 3. Name of each part Motor handpiece 16:1 contra angle Silicone Sleeve Spray nozzle (ALP101) (ALP 119) (ALP 111) Adaptor Battery Charging wire (ALP 107) (ALP 104) Charging base ALP 108) ALP 121)

  • Page 10: Parts And Its Function

    4. Parts and its function POWER Key ( • Holding down the POWER key for more than one second turns on the power and the LCD panel lights. • Holding down the POWER key for more than one second while the power is on turns off the power and the LCD display turns off.
  • Page 11 SELECT Key ( ) (When the motor is running, the key is invalid) • Press the SELECT key to ‘speed , torque or gear ratio setting', or ‘ Rotation Mode selection' • Press shortly the SELECT key, it will be displayed “speed, torque or gear ratio setting”...
  • Page 12 LCD panel Auto Reverse : If the load is removed after auto reverse rotation, it returns to the normal rotation again. : If the load is removed after auto reverse rotation, it stops. : Auto reverse rotation is not activated. (There will be no symbol displayed) : rotation is in anti-clockwise motion.

  • Page 13: Operations

    5. Operations 5.1 Charging Batteries 1. Insert the power cord jack into the inlet at the back of the battery charger. (Fig. a) 2. Insert the power cord and plug in. Make sure you have the correct model/voltage. (Fig. b) 3.
  • Page 14 CAUTION • When the power lamp for the charger does not light up, the internal fuse may be faulty. In this case please contact your dealer. • Be careful of handling when placing the motor handpiece into the charger. Do not put handpiece into the WET or UNSAFE place.
  • Page 15 5.3 Mounting and Removing File Insert file to contra angle, lightly turn the file until it engages with the latch mechanism. Push it inward to click File Removal, depress the push- key and puII out the file. CAUTION • When attaching and detaching the file, turn off the power beforehand. •...
  • Page 16 5.5 Operation If you press the ON/OFF key briefly, the motor handpiece starts. If you re- press the key, it stops. (Alternate operation) If you hold down the ON/OFF key for more than one second, the motor handpiece starts whiIe the key is pressed. If you release the key it stops.
  • Page 17 Auto Stop The motor hand piece starts in reverse. When a load is removed, the motor handpiece stops. If you want (forward-rotate) again, re-press the ON/OFF Key or re-step. Load lower than the Load higher than the Stop, when the reverse set torque limit value set torque limit value, finished...
  • Page 18 Reciprocating In the genera I condition, when the Endo Motor Rotate in rounter- clockwise motion wiII be claim as reverse motion. the traditionaI rotary files withdrawing from the canal by reverse motion. Therefore, beep sound wiII occur when using this function. Load lower than the set torque Limit load higher than the set torque value, anticlockwise and Clockwise in...

  • Page 19: Convenient Function

    5.6 After Use When the treatment is completed, return the motor handpiece to the handpiece stand and hold down the POWER key for more than one second to turn off the power. • Auto Power Off If the key is not operated or approximately 10 minutes passes during rotation with no-load, the power is automatically turned OFF to save energy and prevent inn proper operation.
  • Page 20 6.2 Initialization of Program (Factory-set configuration) The program can be returned to the original state configured at the time of factory shipment, if setup becomes confusing. 1. Turn off the power, when the power is on. 2. Press PROgRAM, and then press the POWER key for more than one second. Release the keys when the LCD panel indicates "RES”.
  • Page 21 Caution • This function does not work unless remaining battery capacity is sufficient. • Perform calibration after cleaning the contra angle. Residuals will affect the calibration. • Do not attack any rotary files or other when calibration. • Do not shake the motor when calibration. •...

  • Page 22: Cleaning

    7. Cleaning Maintenance • Insert the spray nozzle into the contra angle head(insert to the part connect to the main unit) • Insert the lubricants spray nozzle to the provided spray nozzle loop, inject the lubricants for 2-3 seconds till the outlet liquid from the head of the contra angle clean 7.1 Lubricatinq Contra AngIe...

  • Page 23: Sterilization

    8. Sterilization • Sterilize the contra angle only. • For the sterilization method, we recommend the autoclaving. • Autoclave sterilization required after each patient as noted be low: a) Brush the dirt off the surface of the contra angle, and wipe it off with a cotton cloth moistened with surgical spirit.

  • Page 24: Changing Battery

    9. Changing Batteries The motor handpiece uses rechargeable battery. They can be recharged more than 300 times, depending on the use conditions of the motor handpiece. • “MEMORY EFFECT” is not applicable in li-ion battery. Recharge can be conduct anytime. •...

  • Page 25: Error Code

    10. Error Code Error ode Error Cause Check Remedy Self-Check Malfunction of circuit Contact your dealer error When The motor handpiece working Overcurrent is locked. (auto Remove payload reverse mode) Overvoltage Malfunction of circuit Contact your dealer Charger Malfunction of circuit Contact your dealer failure Low voltage...
  • Page 26 Problem Cause Solution Battery has run out. Recharge the battery. The power is unable to No battery inserted. Insert battery. turn on. The internal fuse has burnt. Contact your dealer. Battery has been over used Replace with new battery. The power cord plug is not plug the power cord or inserted into the charger adaptor properly...

  • Page 27: Warranty

    12. Warranty Manufacturer warrants its products to the original purchaser against defects in material and workmanship under normal practices of installation, use and servicing. Batteries etc., are disposable components, and are not covered by this warranty. Manufacture's information can be found in warranty card. 13.
  • Page 28 — electromagnetic emissions The EndoPilot is intended for use in the electromagnetic environment specified below. The customer or the user of the EndoPilot shouId assure that is used in such an environ- ment. Emission test Conformity...
  • Page 29 — electromagnetic emissions The EndoPilot is intended for use in the electromagnetic environment specified below. The customer or the user of the EndoPilot should assure that is used in such an environment. Electromagnetic en- Immunity test...
  • Page 30 — electromagnetic emissions The EndoPilot is intended for use in the electromagnetic customer or the user of the EndoPilot shouId assure that environment specified below. The is used in such an environment. Immunity test IEC60601 test level Compliance Level Electromagnetic environment - guide...

  • Page 31: Warranty Card

    - electromagnetic emissions The EndoPilot is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the EndoPilot can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF according to the maxi mum output power of the communications equipment.
  • Page 32 Federal law restricts this device to sale by or on the order of a dentist, physician, or any other practitioner licensed by the law of the states in which he or she practices to use or order the use of this device. Beyes Dental Canada Inc is not responsible for any typographical errors.
