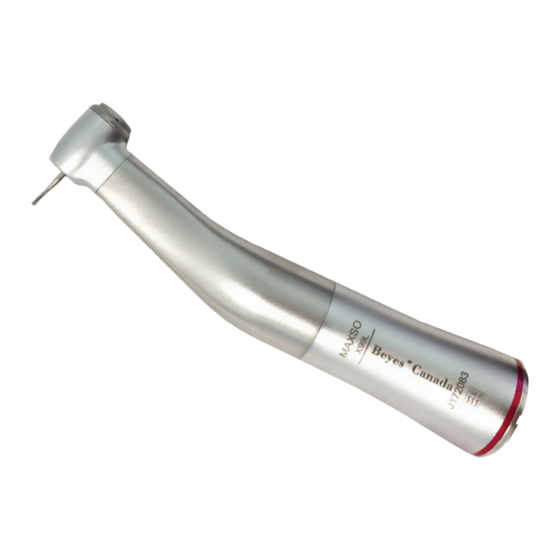

1:5 electric high speed handpiece

Advertisement

Quick Links

Maxso
®
X99 Series
1:5 Electric High Speed Handpiece
Instruction For Use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Maxso X99 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for BEYES Maxso X99 Series

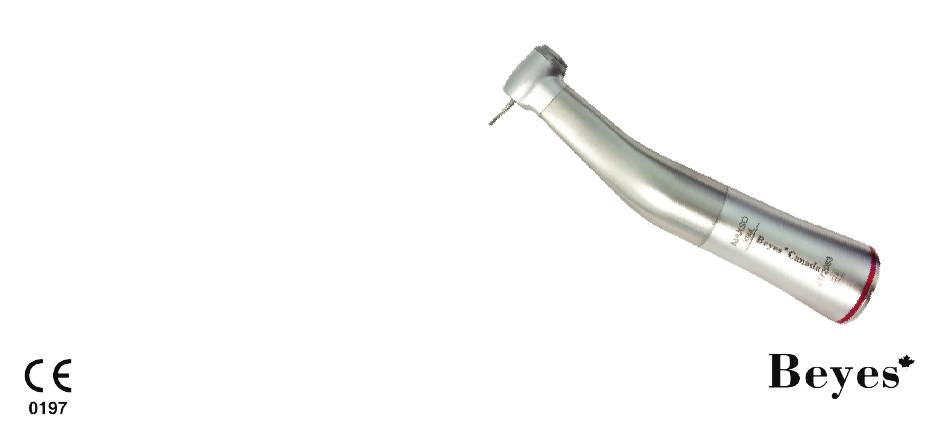

  • Page 1 Maxso ® X99 Series 1:5 Electric High Speed Handpiece Instruction For Use...
  • Page 2: Table Of Contents

    Table of Contents Symbols ..........2 Technical Specifications ....... 7 Introduction .......... 3-4 Operation ..........8-11 Before Use..........5 Hygienic maintenance ......12-22 Product description ....... 6 Limited Warranty ........23 Symbols 135°C WARNING! ATTENTION! General explanations, Thermal washer Sterilizable (Risk of injury) (To prevent damage) without risk to...
  • Page 3: Introduction

    For your safety and the safety of your patients Prior to initial use please read the instructions for use. These explain how to use your Beyes product and guarantee a smooth and efficient operation. Intended use...
  • Page 4 Improper use, (e.g. through poor hygienic maintenance), non-compliance with our instructions or the use of accessories and spare parts which are not approved by Beyes, invalidates all claims under warranty and any other claims. Service In case of service or repair contact an authorized Beyes service partner.
  • Page 5: Before Use

    Before Use • Always ensure the correct operating conditions and cooling function. • Always ensure that sufficient and adequate cooling is delivered and ensure adequate suction. In case of coolant supply failure, the turbine handpiece must be stopped immediately. • Check the Maxso handpiece for damage and loose parts prior to use (e.g. press button on contra-angle). •...
  • Page 6: Product Description

    Product description Contra-angles 1. Press button 2. Spray nozzle 3. Compact optic outlet* 4. Grip profile 5. retractable lug* *only contra-angles with light...
  • Page 7: Technical Specifications

    X99 Series Transmission ratio Motor coupling (acc. to standard) ISO 3964 Instrument (acc. to EN ISO 1797-1:1995) (ø mm) Length in mm approved by Beyes (mm) Min. chuck length until back stop Max. motor speed (rpm) 40,000 Spray flow rate (acc. to ISO 7785-2) (ml/min) >...
  • Page 8: Operation

    Operation Assembly and removal Do not assemble/remove during the operation Push the contra-angle handpiece onto the motor and turn it until it engages audibly. Check the connection to the motor is secure Remove the contra-angle handpiece from the motor by pulling in an axial direction.
  • Page 9 Rotary Instruments • Use only rotary instruments which are in perfect condition and which have shanks that meet the requirements of the DIN EN ISO 1797-1 standard. Follow the operating instructions of the manufacturer. • Insert rotary instruments only when the contra-angle handpiece is stationary. •...
  • Page 10 To change rotary instrument into contra-angles Rotary instrument shank ø 1.6 mm: Insert rotary instrument. Press the button firmly (1-a) and at the same time insert the rotary instrument until it reaches the limit stop(1-b). Rotary instrument shank ø 2.35 mm: Press the button (1-a) and at the same time insert the rotary instrument and turn it until it snaps into place(1-c).
  • Page 11 Test run • Insert rotary instrument. • Start the contra-angle handpiece. • If you observe problems (e.g. vibrations, unusual noise, overheating, coolant supply failure or leakage), stop the handpiece immediately and contact an authorized service partner organization. Always check that the bur is secure before operating the attachment. Never open or lock bur lock ring while instrument is rotating.
  • Page 12: Hygienic Maintenance

    Hygienic maintenance • Follow your country-specific directives, standards and guidelines for cleaning, disinfection and sterilization. • You can process the contra-angle handpiece manually or mechanically. • Wear protective clothing. • Remove the rotary instrument. • Remove the contra-angle handpiece from the motor. •...
  • Page 13 Pre-disinfection If heavily soiled: Clean first with disinfectant and soft cloths. Only use disinfectants that have no proteinfixing effects. Manual cleaning (internal and external) Rinse under demineralized water (< 38 °C) with the aid of a brush (brush is not recommended in U.K.) Then remove any liquid residues (absorbent cloth, blow dry with compressed air).
  • Page 14 Clean and disinfect the nozzle cleaner in an ultrasonic bath/disinfection bath. Clean coolant tubes Blow through the coolant tube with an air syringe. In the case of clogged spray nozzles or coolant tubes contact an authorized Beyes service partner.
  • Page 15 Cleaning of the optic outlet Clean the optic outlet using isopropyl alcohol or other disinfection agents. Blow the optic outlet dry with air syringe or dry it carefully with a soft cloth. Avoid scratching the optic outlet! Never use a cleaning agent that has an ammonium, chlorine, or acid base.
  • Page 16 Manual disinfection • Disinfection with disinfectants, wiping disinfection is recommended. • Use only disinfectants which do not contain chlorine and which are certified by officially recognized institutes. For USA: Use EPA registered surface disinfectants. • Note the manufacturer’s specifications for the use of the disinfectants.
  • Page 17 Mechanical cleaning and disinfection internal and external The contra-angle can be cleaned and disinfected in a thermo washer disinfector. Beyes recommends processing with thermo washer disinfector. • Note the manufacturer’s specifications on equipment, cleaning agents and detergents. • Make sure, that the contra-angle is completely dry internally and externally after thermo washer disinfection.
  • Page 18 Daily oil service Only with Beyes Lube Follow the instructions for use of the oil spray can. Only with Beyes Caremaster See instructions for use of Caremaster. Recommended lubrication cycles • Essential after every internal cleaning • Before each sterilization...
  • Page 19 Weekly oil service of the chuck system Only with Beyes Lube • Fit the spray nozzle onto the spray can. • Hold the contra-angle handpiece firmly. • Press the tip of the spray nozzle firmly into the chuck system • Spray for approx. 1 second.
  • Page 20: Hygienic Maintenance

    Test run following oil service Place the contra-angle handpiece with the instrument tip/head downwards. Start the contra-angle handpiece for 30 seconds to remove excess oil. • Start at the minimum speed and increase to them maximum speed within 5 to 10 seconds.
  • Page 21 Sterilization and storage Beyes recommends sterilization according to EN 13060, class B • Follow the operating instructions of the manufacturer. • Clean, disinfect and lubricate prior to sterilization. • Wrap the contra-angle handpiece and the accessory in sterile goods packing according to EN 868-5.
  • Page 22 Approved sterilization methods Observe your country-specific guidelines, standards and requirements. • Steam sterilization class B (pre and post vaccum) with sterilizers in accordance with EN 13060. Sterilization holding time a minimum of 3 minutes at 134 °C (273.2 °F) • Steam sterilization class S with sterilizers in accordance with EN 13060. The sterilizer manufacturer must give their express approval for the sterilization of handpieces/contra-angles.
  • Page 23: Limited Warranty

    Limited Warranty Beyes Dental Canada hereby warrants against defect in material and workmanship that for a period of 12 months from the date of purchase, this product will perform satisfactorily under normal use and service. No warranty claim can be inferred here, as wear may occur earlier or later than indicated above depending on use, frequency of sterilization and frequency of maintenance.
  • Page 24 Beyes Dental Canada Inc. 23-595 Middlefield Road Lotus NL B.V. Toronto, Ontario, M1B 3M5 Koningin Julianaplein 10, Ie Verd, Canada 2595AA, The Hague, Tel: 1-855-603-1888 Netherlands Email: info@beyes.ca Tel: +31645171879 (English) Website: www.beyes.ca +31626669008 (Dutch) Federal law restricts this device to sale by or on the order of a dentist, physician, or any other practitioner licensed by the law of the states in which he or she practices to use or order the use of this device.
