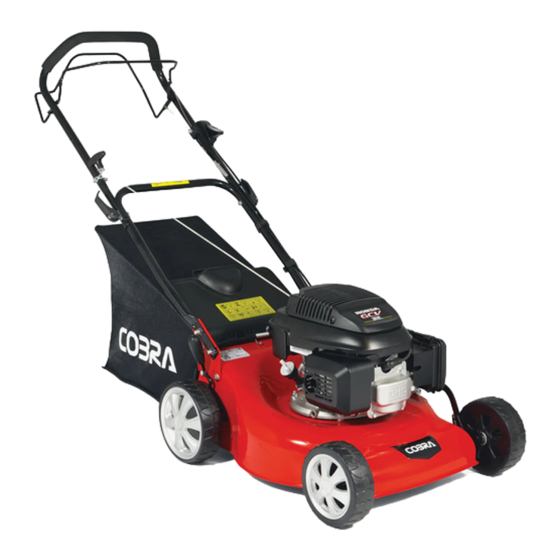

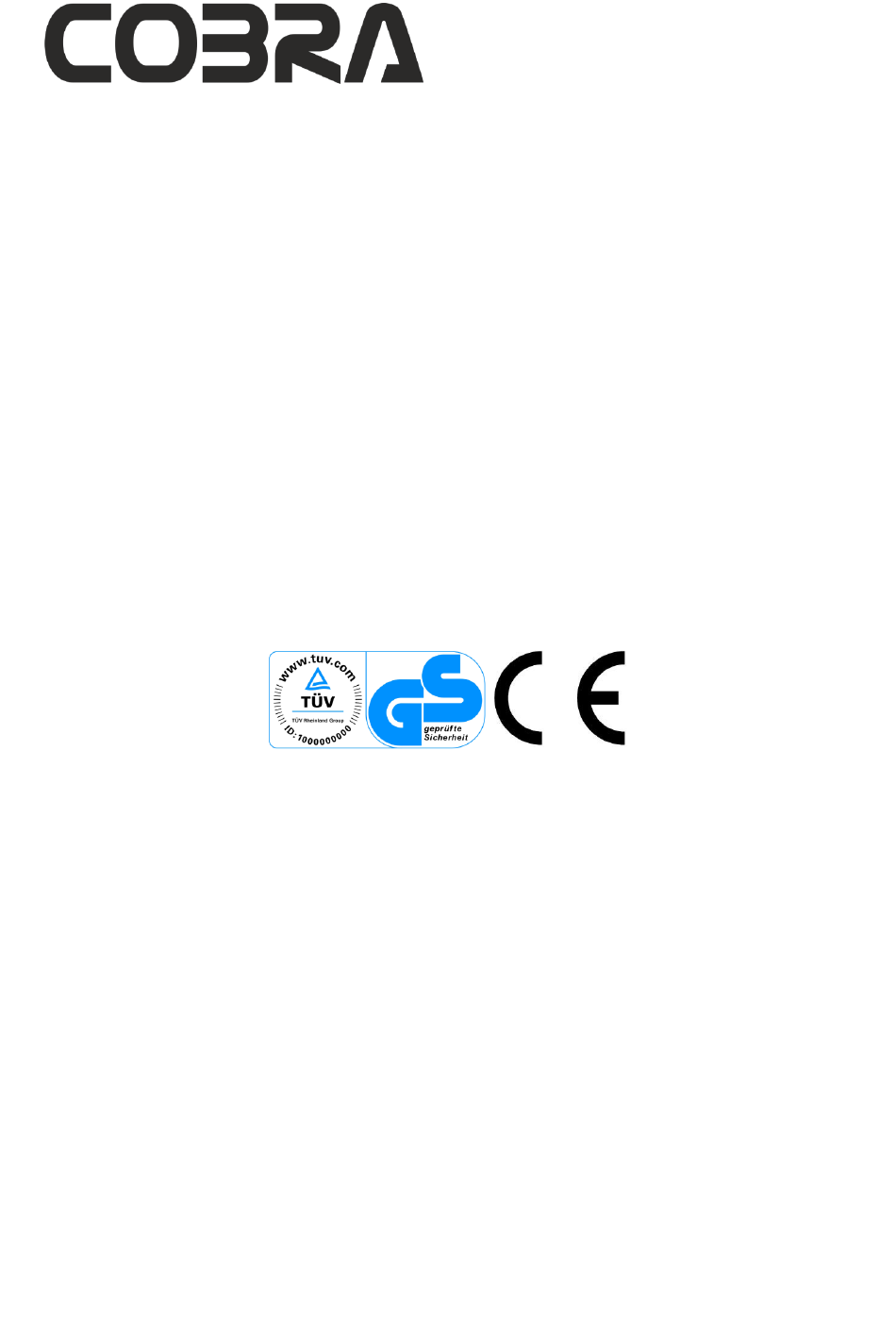

- Page 1 MODEL: M46SPH COBRA LAWN MOWER OWNER’S MANUAL Cobra Garden Machinery Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK www.cobragarden.co.uk - 1 -...
-
Page 2: Table Of Contents
CONTENTS SECTION 1 SYMBOLS MARKED ON THE PRODUCT………………………….. 3 SECTION 2 GENERAL SAFETY RULES………………………………………….. 3 SECTION 3 PARTS DESCRIPTION………………………………..…………….… 5 SECTION 4 TECHNICAL DATA…………………………………………………...… 6 SECTION 5 ASSEMBLY……………………………………………………………… 7 OPERATION INSTRUCTIONS……………………………………..… 8 SECTION 6 MAINTENANCE INSTRUCTIONS ……………………………..……. 11 SECTION 7 LUBRICATION INSTRUCTIONS ……………………………………. -
Page 3: Symbols Marked On The Product
WARNING： For your own safety please read this manual before attempting to operate your new mower. Failure to follow instructions can result in serious personal injury. Spend a few moments to familiarise yourself with your mower before each use. 1. SYMBOLS MARKED ON THE PRODUCT Fig. - Page 4 Training 1. Before using the lawnmower read the instructions carefully. Familiarise yourself with the controls and pay particular attention in learning how to stop the machine in an emergency. 2. Never allow children or people unfamiliar with these instructions to use the lawn mower. Local regulations can restrict the age of the operator.
- Page 5 16. Do not start the engine when standing in front of the discharge chute. 17. Never put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times. 18. Always ensure the engine is fully switched off before picking up/carrying the Lawnmower. 19.
-
Page 6: Parts Description
10. Fuel cap 11. Cable clamp 12. Choke Lever 13. Brake control handle 14. Self-drive control handle Including A: Spark plug wrench Fig.L 4. TECHNICAL DATA Model M46SPH Enginetype GCV 135E Self-Propelled Engine Displacement cm³ Blade Width 460mm Rated Speed 2800/min Fuel Tank Capacity 0.77 L... -
Page 7: Assembly
5. ASSEMBLY FOLDING HANDLES Fix the lower handlebars into the mower body with a suitable spanner. (Fig.1J/Fig.1K/Fig.1L) 2. Lift the two locking levers to release the upper handlebars for folding. (Fig. 1M) 3. Push the locking lever closed to lock the handlebars in the operating position. (Fig.1N) 4. -
Page 8: Operation Instructions
Apply outward pressure to disengage the lever from rack. Move the lever forward or back to adjust the height. (See Fig.5 and see clause 7.9) Fig. 5 6. OPERATING INSTRUCTIONS 6.1 BEFORE STARTING Service the engine with petrol and oil as instructed in the separate engine manual packed in your mower. Read instructions carefully. - Page 9 Fig.8A Fig.8B Fig.8C Fig.8D Fig. 8E Fig. 8F Fig.8G Start the engine carefully according to instructions and with feet well away from the blade. Do not tilt the lawn mower when starting the engine. Start the mower on a level surface, free of high grass or obstacles. Keep hands and feet away from the rotating parts.
- Page 10 CAUTION: your mower is designed to cut normal residential grass of a height no more than 250mm. Do not attempt to mow through unusually tall dry or wet grass (e.g., pasture) or piles of dry leaves. Debris may build up on the mower deck or contact the engine exhaust presenting a potential fire hazard.
-
Page 11: Maintenance Instructions
Fig.12B 1. Stop the mower and disconnect spark plug cable before changing the mower cutting height. 2. The central height adjustment lever offers you 10 different height positions. 3. To change the height of cut, squeeze the adjuster lever towards the wheel, moving up or down to the selected height. (Fig.12B) All wheels will be in the same height of cut. - Page 12 Replace with an approved factory replacement blade only. Possible damage resulting from blade unbalance condition is not the responsibility of the manufacturer. When you change the blade, you must use the original type marked on the blade (Cobra Part No 263001465 please contact your local dealer.) 9.4 ENGINE...
-
Page 13: Storage Instructions (Off Season)
cleaner should be serviced. To service the air cleaner, refer to the separate engine manual packed with your unit. The spark plug should be cleaned and the gap reset once a season. Spark plug replacement is recommended at the start of each mowing season;... -
Page 14: Troubleshooting Guide
11. TROUBLESHOOTING PROBLEM PROBABLE CAUSE CORRECTIVE ACTION Engine does not Throttle choke not in the correct position Move throttle choke to the correct position start. for the prevailing conditions. Fuel tank is empty. Fill the tank with fuel: refer to the ENGINE MANUAL. Air filter element is dirty. -
Page 15: Warranty
Please Register Your Mower If your dealer did not collect registration information from you, please take a few minutes and register your purchase with Cobra. You can register by completing and mailing the registration card that should be in the box or by going online to: www.cobragarden.co.uk and clicking on Product Registration. -
Page 16: Ec-Declaration Of Conformity
14. EC-DECLARATION OF CONFORMITY EC Declaration of Conformity Cobra Garden Machinery We herewith declare, Henton & Chattell Ltd, London Road, Nottingham NG2 3HW UK That the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us.
