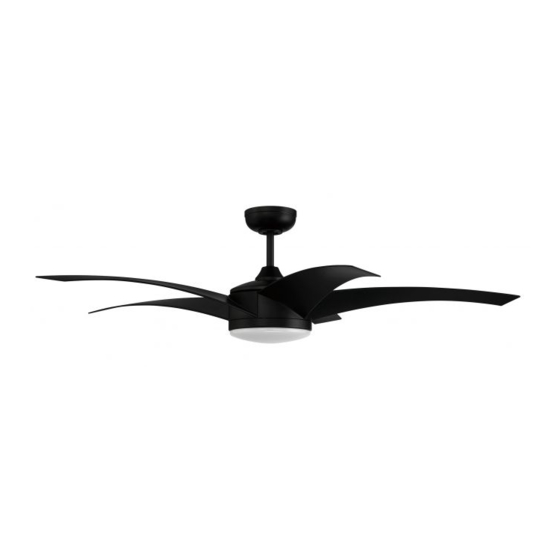

Craftmade Pursuit PUR54 Installation Manual
  1. Manuals
  2. Brands
  3. Craftmade Manuals
  4. Fan
  5. Pursuit PUR54
  6. Installation manual

Craftmade Pursuit PUR54 Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Pursuit
Installation Guide
For Model:
PUR54
WARNING:
DC Motor will not
operate until blades
are installed
For
Damp Location
E192641
net weight of fan: 16.94 lb. (7.7 kg)

Table of Contents:

Wiring. pg. 6
Warranty. pg. 12
page 1
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE
PRINTED IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pursuit PUR54 and is the answer not in the manual?

Questions and answers

Related Manuals for Craftmade Pursuit PUR54

Summary of Contents for Craftmade Pursuit PUR54

  • Page 1: Table Of Contents

    READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Pursuit Installation Guide For Model: PUR54 Table of Contents: Safety Tips. pg. 2 Unpacking Your Fan. pg. 3 Parts Inventory. pg. 3 Installation Preparation. pg. 4 Hanging Bracket Installation. pg. 4 Fan Assembly.

  • Page 2: Safety Tips

    SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS. CAUTION: To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp edges.

  • Page 3: Unpacking Your Fan

    1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.

  • Page 4: Installation Preparation

    3. Installation Preparation. blade edge To prevent personal injury and damage, ensure inches 7 feet (76cm) that the hanging location allows the blades a (2.13m) clearance of 7 feet (2.13m) from the floor and 30in. (76cm) from any wall or obstruction. 12ft - 20ft This fan is suitable for room sizes up to (3.66m - 6.1m)

  • Page 5: Fan Assembly. Pgs

    5. Fan Assembly. stop pin set screw Remove hanging ball from downrod provided by loosening set screw on hanging ball. Lower hanging ball and remove stop pin and then slide hanging hanging ball ball off of the downrod. [Refer to diagram 1.] Loosen yoke set screws and nuts at top of motor diagram 1 housing.

  • Page 6: Wiring

    5. Fan Assembly. (cont.) wood ceiling joist With the hanging bracket secured to the outlet box and safety cable loop able to support the fan, you are now ready to hang your fan. Grab the fan firmly with two hands. Slide downrod through opening in hanging bracket and let hanging ball rest on the hanging bracket.

  • Page 7: Canopy Assembly

    7. Canopy Assembly. hanging Locate 2 screws on underside of hanging bracket bracket and remove screw closest to the open end of the hanging bracket. Partially loosen the other screw. Lift canopy to hanging bracket. Place rounded part of slotted hole in canopy over loosened screw in hanging bracket and push up.

  • Page 8: Led Light Kit Assembly

    9. LED Light Kit Assembly. Remove 1 screw from motor plate on underside of motor housing motor housing and partially loosen the other 2 screws. Align slotted holes in fitter plate with loosened screws in motor plate, allowing molex connections from motor housing to come motor plate through holes in midde of fitter plate.

  • Page 9: Automated Learning Process./ Activating Code

    10. Automated Learning Process./ Activating Code. CAUTION: The remote control transmitter can be REMOTE CONTROL (back) programmed to multiple receivers or fans. If this is not desired, turn wall switch off to any other programmable receiver or fan. Remove battery cover on back side of remote control transmitter.

  • Page 10: Remote Control Operation

    11. Remote Control Operation. REMOTE CONTROL I I I Fan SPEED buttons--1: Use to control ceiling fan speeds 1-6 Fan OFF button--2: Use to turn the fan off REVERSE function button--3: Use to control fan direction LIGHTING button--4: Use to control down-light and up-light (if applicable) IMPORTANT : The Automated Learning Process takes approximately 5 minutes to complete.

  • Page 11: Smart Wifi Remote Control (Optional)

    12. Smart WiFi Remote Control (Optional). To enjoy all the potential of your new device, you will need to download the Craftmade Smart app, available on the Google Play Store and Apple App Store, or use the QR code to download the app.

  • Page 12: Troubleshooting

    Service at 1-800-486-4892 to arrange for return of fan. 2. Check to be sure fan is wired properly. Return fan, shipping prepaid, to Craftmade. We will repair 3. Learning process between fan and remote or ship you a replacement fan, and we will pay the return control may not have been successful and code shipping cost.
