2

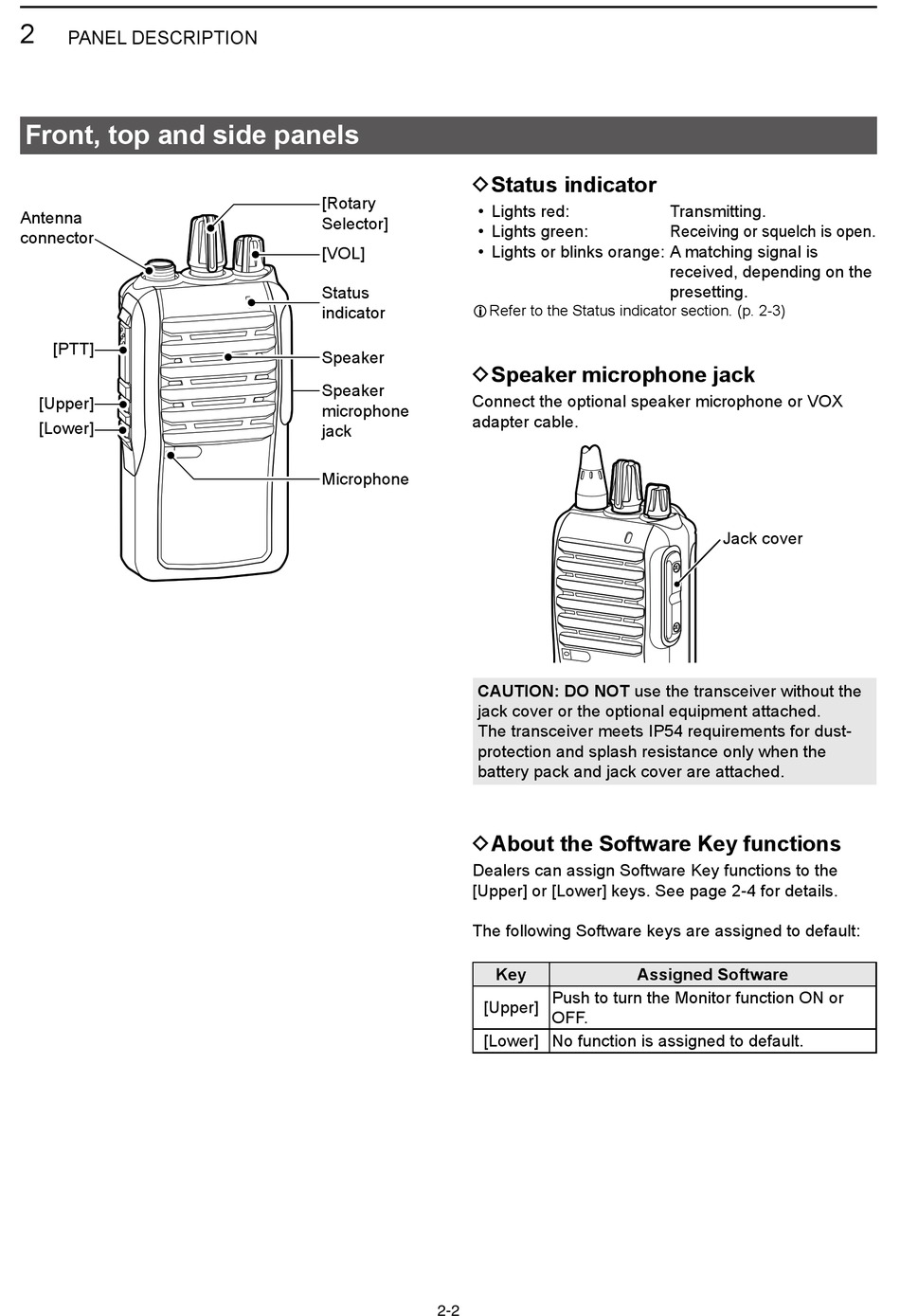

PANEL DESCRIPTION
Front, top and side panels
Antenna
connector
[PTT]
[Upper]
[Lower]
DStatus indicator
[Rotary
• Lights red:
Selector]
• Lights green:
• Lights or blinks orange: A matching signal is
[VOL]
Status
L Refer to the Status indicator section� (p� 2-3)
indicator
Speaker
DSpeaker microphone jack
Speaker
Connect the optional speaker microphone or VOX
microphone
adapter cable�
jack
Microphone
CAUTION: DO NOT use the transceiver without the
jack cover or the optional equipment attached�
The transceiver meets IP54 requirements for dust-
protection and splash resistance only when the
battery pack and jack cover are attached�
DAbout the Software Key functions
Dealers can assign Software Key functions to the
[Upper] or [Lower] keys� See page 2-4 for details�
The following Software keys are assigned to default:
[Upper]
[Lower] No function is assigned to default�
2-2
Key Assigned Software
Push to turn the Monitor function ON or
OFF�
Transmitting�
Receiving or squelch is open�
received, depending on the
presetting�
Jack cover
