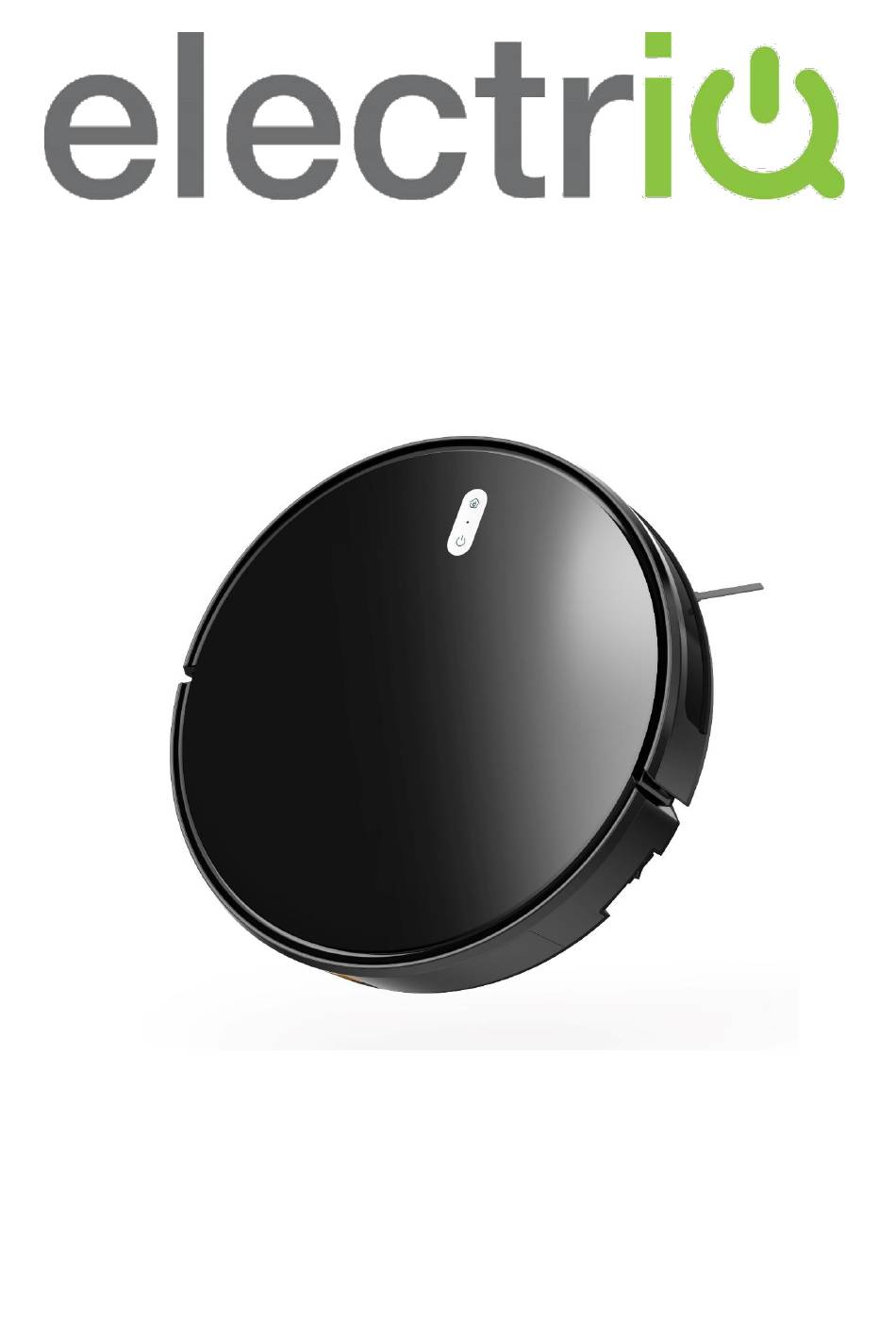

USER MANUAL

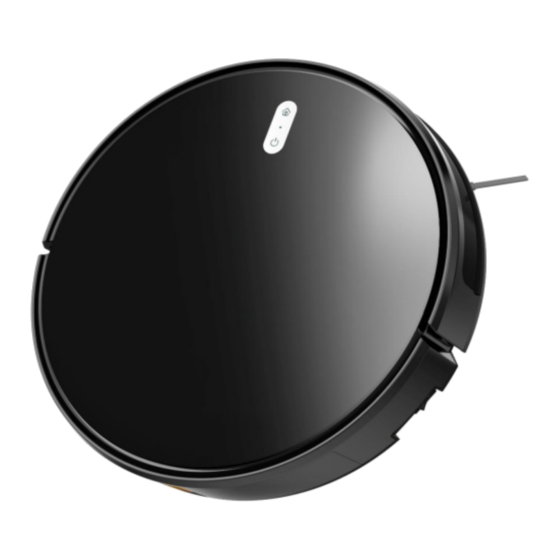

Robot Vacuum Cleaner
iQLEAN-GR01
Thank you for choosing your electriQ robot vacuum cleaner.
This instruction manual is designed to provide you with all required instructions
related to the installation, use and maintenance of the appliance. In order to operate
the unit correctly and safely, please read this instruction manual carefully before
installation and usage.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iQLEAN-GR01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ElectrIQ iQLEAN-GR01

Summary of Contents for ElectrIQ iQLEAN-GR01

  • Page 1 USER MANUAL Robot Vacuum Cleaner iQLEAN-GR01 Thank you for choosing your electriQ robot vacuum cleaner. This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and usage.

  • Page 2: Table Of Contents

    CONTENTS SAFETY PARTS LIST PRODUCT OVERVIEW INITAIL SETUP OPERATION APP CONTROL CLEANING AND MAINTENANCE TROUBLESHOOTING TECHNICAL SPECIFICATIONS SUPPORT...

  • Page 3: Safety

    SAFETY PRECAUTIONS IMPORTANT • Carefully read the instructions before operating the unit. Please retain the manual for future reference. • This appliance is for indoor use only. • Rating: This unit must be only connected to a 220-230 V earthed outlet.
  • Page 4 • Do not use in an environment where there is a risk of fire or explosion. • Do not use to clean printer toner spilled on the floor as this could cause fire. • Before using the robot cleaner, remove any fragile objects from the floor e.g.

  • Page 5: Parts List

    PARTS LIST Please familiarise yourself with this list before commencing operation. Charging Base Robot Vacuum Mains Adapter Remote Control Dust Box Cleaning Brush HEPA Filter Side Brushes Magnetic Strip...

  • Page 6: Product Overview

    PRODUCT OVERVIEW Your robot vacuum cleaner is designed for cleaning homes, small offices and other small rooms. It provides excellent cleaning for a variety of floor types including: • Wooden floors • Tiled floors • Stone floors • Short-pile carpets (less than 1.5cm deep) Go Home Wi-Fi Indicator Start/Pause...
  • Page 7 DUST BOX Dust Box Cover HEPA Filter Sponge Filter Primary Filter Dust Box Top Part Dust Box Bottom Part Dust Box Side Cover CHARGING STATION Signal Indicator DC socket Charging Contacts REMOTE CONTROL On/Off Go Home Forward Pause/Start Turn Left Turn Right Turn Back Increase Suction...

  • Page 8: Initail Setup

    INITIAL SETUP INSTALL SIDE BRUSHES Install the side brushes paying attention to ‘L’ and ‘R’ markings REMOVE THE BUMPER PROTECTORS Gently pull off the bumpers protectors and keep safe for future use and storage. CHARGE YOUR ROBOT Place the charging station against a wall on flat, level ground.
  • Page 9 TURN ON THE UNIT When sufficiently charged, press the power button to turn on your robot vacuum. BEFORE USE Before using your robot vacuum cleaner: • Arrange your furniture so that your robot move around freely. • Block off hazards such as stairways and bannisters to prevent your robot from danger.

  • Page 10: Operation

    OPERATION The product has number of different cleaning modes to cater for different cleaning needs. The cleaning mode can be chosen on the robot, on the remote control or on the WeBack app. The robot will scan the immediate environment and generate a map in its internal memory.

  • Page 11: App Control

    APP CONTROL Before you start: • Ensure your router provides a standard 2.4GHZ connection. • If your router is dual band ensure that both networks have different network names (SSID). The provider of your router / Internet service provider will be able to provide advice specific to your router.
  • Page 12 ADD DEVICE 4. At the Device screen select 5. You will now be prompted to 6. Now select your Wi-Fi the + symbol to add a scan the QR code which is network from the list and device. located on the underside of enter your Wi-Fi password.
  • Page 13 10. Confirm WeBack’s 11. Success – all devices 12. The WeBack home screen connection of the robot to connected. now lists your robot. the Wi-Fi network.
  • Page 14 CONTROLLING YOUR DEVICE THROUGH THE APP THE DEVICE SCREEN The device screen is the main control screen for the cleaning robot, providing access to the controls to amend the functions and settings Status: the robot’s Back: Returns to the current activity. WeBack home screen.
  • Page 15 THE SETTINGS SCREEN This screen gives you the option to turn off the robot’s voice and update some of the device’s basic settings. Set Remark – change the name of the Robot Area unit – choose between ft² or m² Schedule –...

  • Page 16: Cleaning And Maintenance

    CLEANING AND MAINTENANCE DUST BOX AND FILTER CLEANING Press the dust box release button to remove the dust box Open the dust box side cover Open the dust box cover and empty contents into waste bin Open the filter cover.
  • Page 17 Take out the HEPA filter, sponge filter and primary filter. Clean with a cloth or brush. Do not wet the HEPA or sponge filters. Remove any dust from the primary filter, then wash it with running water. Then leave to air dry for 24 hours.
  • Page 18 CLEANING THE BRUSHES Take out the roller brush. Open the roller brush cover. Use the cleaning brush provided to cut of Remove side brush. Clean with a soft cloth. the hair tangled on the roller brush. MAINTENANCE OF CHARGE TERMINALS AND WHEELS The charging terminals on the charging station and the underside of the robot contain sensitive electronic components.

  • Page 19: Troubleshooting

    TROUBLESHOOTING FAULT POSSIBLE CAUSE SOLUTION Robot does not charge. Poor connection between the Ensure contacts are clean and electrodes on the base of the free from obstruction. robot and the charging base. The charging base is switched Keep charging base switched on off.

  • Page 20: Technical Specifications

    TECHNICAL SPECIFICATIONS Model name: iQlean-GR01 CHARGING STATION Description Parameter Size 155 x 150 x 80 mm Input Output 19V 0.6A Rated Power 11.4W Rated Frequency 50/60Hz ROBOT Description Parameter Size 320 x 76mm Battery Lithium Ion Weight 2.3kg Rated Voltage 14.8V...
