USER MANUAL
Robot Vacuum Cleaner
iQLEAN-LR01
Thank you for choosing your electriQ robot vacuum cleaner.
This instruction manual is designed to provide you with all required instructions
related to the installation, use and maintenance of the appliance. In order to operate
the unit correctly and safely, please read this instruction manual carefully before
installation and usage.

Advertisement

Table of Contents
loading

Related Manuals for ElectrIQ iQLEAN-LR01

Summary of Contents for ElectrIQ iQLEAN-LR01

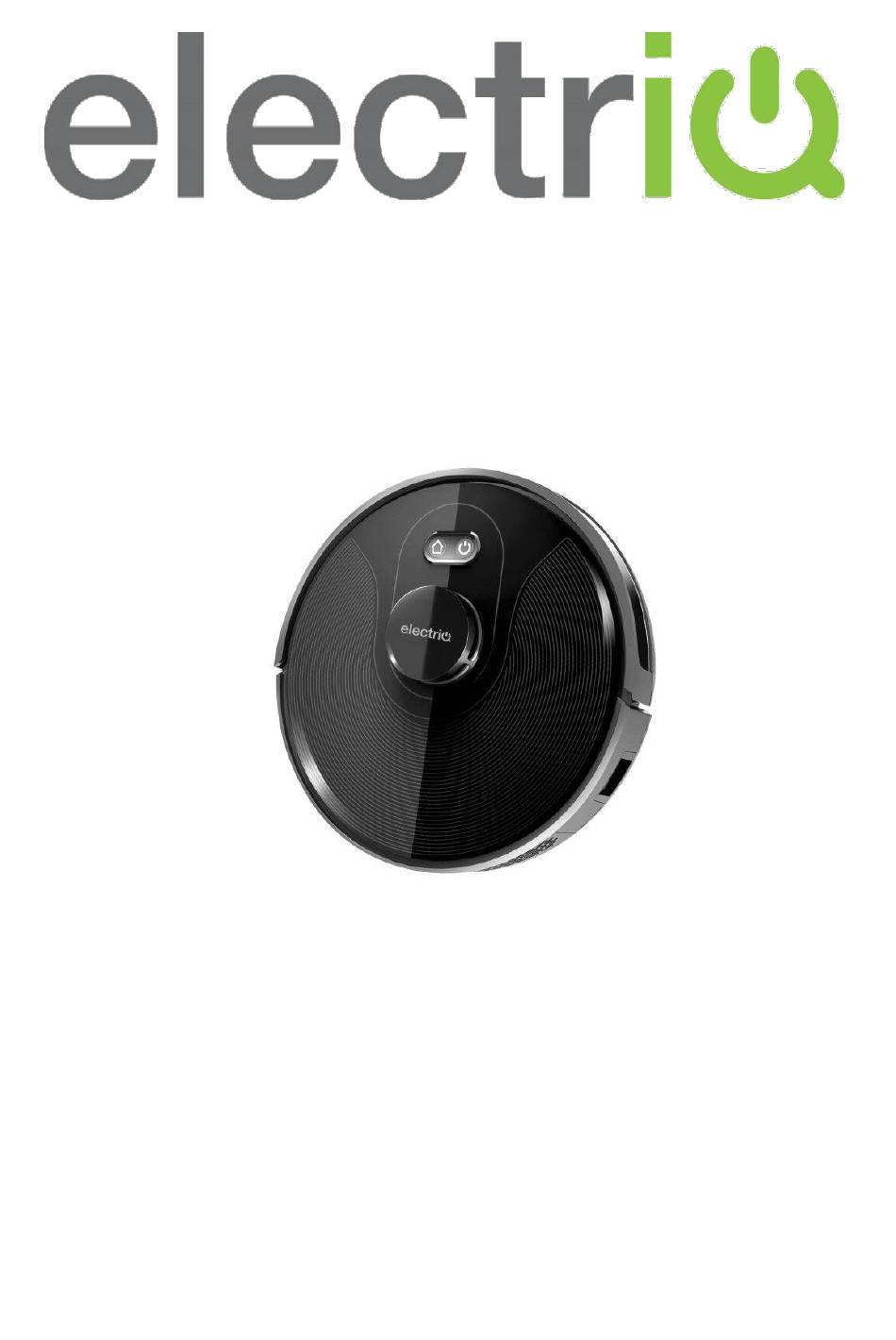

  • Page 1 USER MANUAL Robot Vacuum Cleaner iQLEAN-LR01 Thank you for choosing your electriQ robot vacuum cleaner. This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and usage.

  • Page 2: Table Of Contents

    CONTENTS SAFETY PARTS LIST PRODUCT OVERVIEW INITIAL SETUP OPERATION APP CONTROL CLEANING AND MAINTENANCE TROUBLESHOOTING TECHNICAL SPECIFICATIONS SUPPORT...

  • Page 3: Safety

    SAFETY PRECAUTIONS IMPORTANT • Carefully read the instructions before operating the unit. Please retain the manual for future reference. • This appliance is for indoor use only. • Rating: This unit must be only connected to a 220-230 V earthed outlet.
  • Page 4 • Do not use in an environment where there is a risk of fire or explosion. • Do not use to clean printer toner spilled on the floor as this could cause fire. • Before using the robot cleaner, remove any fragile objects from the floor e.g.

  • Page 5: Parts List

    PARTS LIST Please familiarise yourself with this list before commencing operation. Charging Base Mains Adapter Host Remote Control Dust Box Dust Box Cover HEPA Filter Side brushes Cleaning brush...

  • Page 6: Product Overview

    PRODUCT OVERVIEW Your robot vacuum cleaner is designed for cleaning homes, small offices and other small rooms. It provides excellent cleaning for a variety of floor types including: • Wooden floors • Tiled floors • Stone floors • Short-pile carpets (less than 1.5cm deep) Laser Head Go Home Pressure Sensor...
  • Page 7 DUST BOX HEPA Filter HEPA Filter Cover Primary Filter Filter retaining clip Electrical contacts Dust Box Side Cover CHARGING STATION Signal Indicator DC socket Charging Contacts WATER TANK Water Filler Cap...

  • Page 8: Initial Setup

    INITIAL SET UP DUST BOX ASSEMBLY 1. Assemble the dust box side cover. Press the side cover firmly into position as shown above. 2. Close the dust box side cover: pivot the cover as shown by the arrow opposite. 3. Insert the dust box Finally, remove the protective bumper strip.
  • Page 9 CHARGING YOUR ROBOT 1. Place the charging station against a wall on flat, level ground. Keep the charging station free of obstructions 0.5m to the left and right and 1.5m in front. 1. Connect the power supply Install the side brushes paying attention to the ‘L’...
  • Page 10 During cleaning the robot monitors its own charge level and returns to the charging station when required. You can also put the robot into recharging mode by pressing the button on the remote control or on the app. Please note: •...

  • Page 11: Operation

    OPERATION The product has number of different cleaning modes to cater for different cleaning needs. The cleaning mode can be chosen on the robot host, on the remote control or on the app. The robot will scan the immediate environment and generate a map.
  • Page 12 REMOTE CONTROL On/Off Home Automatic Cleaning Start/Pause Forward Turn Right Turn Left Back Suction Power Adjustment Signal Indicator Border Cleaning (Optional) Please insert 2 x AAA batteries, not included Before using your robot vacuum cleaner: o Arrange your furniture so that your robot move around freely. Block off hazards such as stairways and bannisters to prevent your robot from danger.

  • Page 13: App Control

    APP CONTROL Before you start: • Ensure your router provides a standard 2.4GHZ connection. • If your router is dual band ensure that both networks have different network names (SSID). The provider of your router / Internet service provider will be able to provide advice specific to your router.

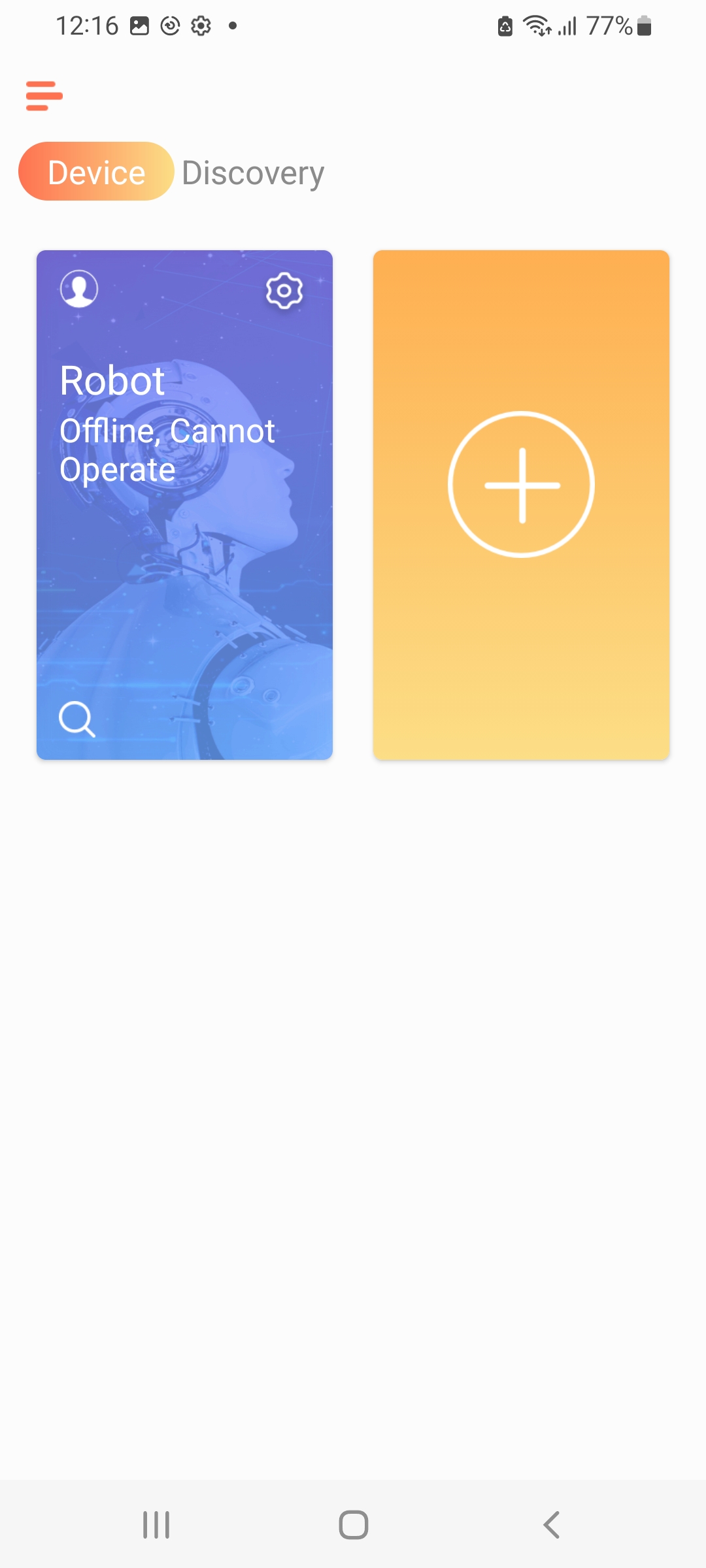

  • Page 14 ADD DEVICE 4. At the Device screen select 5. You will now be prompted to 6. Now select your Wi-Fi the + symbol to add a scan the QR code which is network from the list and device. located on the underside of enter your Wi-Fi password.
  • Page 15 10. Follow the prompts, enter the mobile phone Wi-Fi settings, 11. The WeBack home screen connect the robot### hotspot, return to the app and wait for now lists your robot. connection.
  • Page 16 CONTROLLING YOUR DEVICE THROUGH THE APP THE DEVICE SCREEN The device screen is the main control screen for the cleaning robot, providing access to the controls to amend the functions and settings Status: the robot’s Back: Returns to the current activity. WeBack home screen.
  • Page 17 THE SETTINGS SCREEN This screen gives you the option to adjust the volume of the robot’s voice and update some of the device’s basic settings. Clear current map – clear map to start a new room. Crossing Obstacles – whether to allow robot to cross 1cm doorways and other obstacles.

  • Page 18: Cleaning And Maintenance

    CLEANING AND MAINTENANCE DUST BOX AND FILTER CLEANING Press the dust box release button to remove the dust box Open the dust box side cover Open the dust box cover and empty contents into waste bin Open the filter cover and remove the primary filter and HEPA filter.
  • Page 19 Wash the primary filter Clean the dust box using a brush or damp cloth. Do not wash with running water as this may damage the electronics. Dry the dust box and filters. The primary filter should be washed every 15-30 days. The maximum service life of the HEPA filter is three months.
  • Page 20 Clean the inside of the water tank. Allow the tank to air dry for 24 hours. CLEANING THE BRUSHES Open the roller brush cover assembly. Take out the roller brush Use the cleaning brush provided to cut of the haoir tangled on the roller brush.
  • Page 21 Take off the side brush. Clean with a soft cloth. MAINTENANCE OF CHARGE TERMINALS AND WHEELS Note: the charging terminals on the charging station and the underside of the robot contain sensitive electronic components. Do not use water to clean them, use only a dry cloth.

  • Page 22: Troubleshooting

    TROUBLESHOOTING FAULT POSSIBLE CAUSE SOLUTION Robot does not charge. Poor connection between the Ensure contacts are clean and electrodes on the base of the free from obstruction. robot and the charging base. The charging base is switched Keep charging base switched on off.

  • Page 23: Technical Specifications

    TECHNICAL SPECIFICATIONS Model name: iQlean-LR01 CHARGING STATION Description Parameter Size 155 x 150 x 80 mm Input Output 19V 0.6A Rated Power 11.4W Rated Frequency 50/60Hz HOST ROBOT Description Parameter Size 330 x 96mm Battery Lithium Ion Weight 2.8kg Rated Voltage...
