ElectrIQ iQlean-LR02C30 User Manual

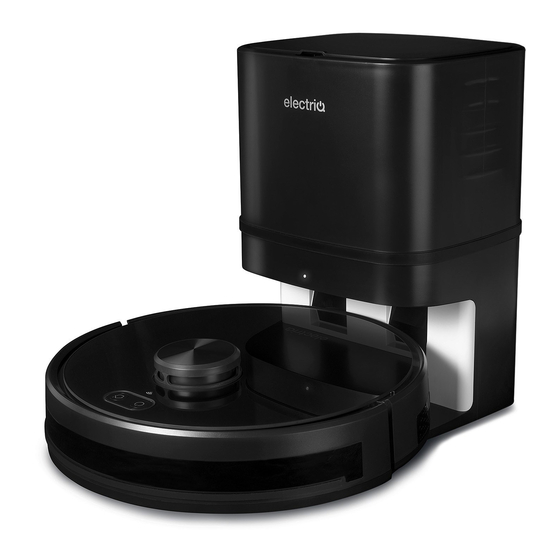

Robot vacuum cleaner with auto empty dock and smart app
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

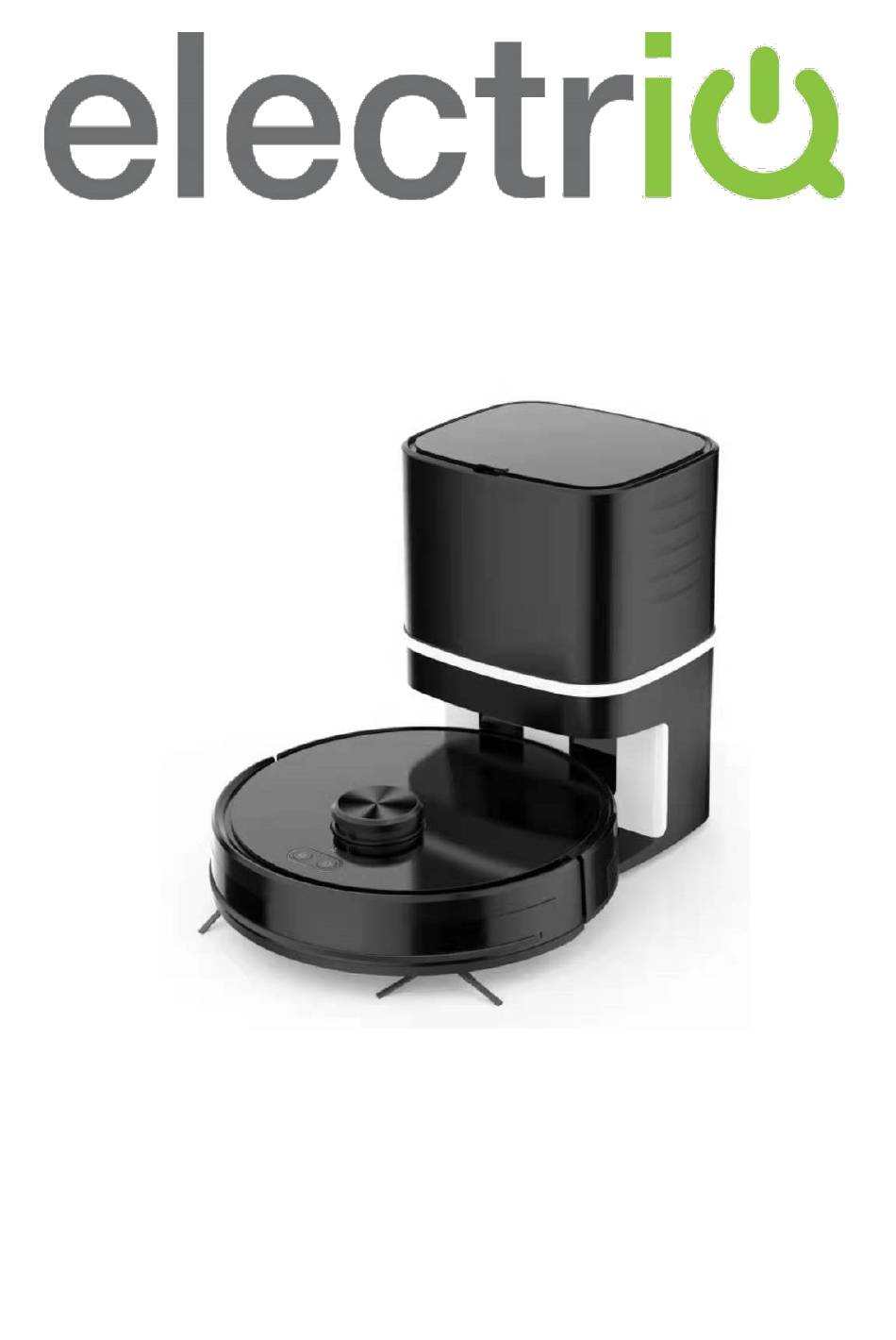

USER MANUAL
Robot Vacuum Cleaner
With Auto Empty Dock and Smart App
iQlean-LR02C30
Thank you for choosing this electriQ robot vacuum cleaner. The instruction manual
is designed to provide you with all the required instructions related to the use and
maintenance of this appliance. In order to operate the unit correctly and safely,
please read this instruction manual carefully before use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iQlean-LR02C30 and is the answer not in the manual?

Questions and answers

Related Manuals for ElectrIQ iQlean-LR02C30

Summary of Contents for ElectrIQ iQlean-LR02C30

  • Page 1 With Auto Empty Dock and Smart App iQlean-LR02C30 Thank you for choosing this electriQ robot vacuum cleaner. The instruction manual is designed to provide you with all the required instructions related to the use and maintenance of this appliance. In order to operate the unit correctly and safely,...

  • Page 3: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS PRODUCT OVERVIEW PARTS LIST PRODUCT DIAGRAMS SETTING UP THE CHARGING BASE SETTING UP THE ROBOT BEFORE OPERATION QUICK START GUIDE REMOTE CONTROL USING THE WATER TANK AND MOP CLEANING AND MAINTENANCE SIDE BRUSH CLEANING AND REPLACEMENT CLEANING OF SENSORS AND CHARGING CONTACTS DUST BOX AND FILTER CLEANING CLEANING THE WATER TANK REPLACING THE DUST BAG...

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Important • Carefully read the instructions before operating the unit. Please retain the manual for future reference. • This appliance is for indoor use only. • Rating: This unit must be only connected to a 220-240 V, 50/60 Hz outlet.
  • Page 5 • Before using the robot cleaner, remove any fragile objects from the floor e.g. glasses, bottles, candles, lamps. Also remove any sharp metals, nails, sharp glass pieces or any other objects that could block or damage the robot. • Do not place any object on the top of the robotic cleaner. •...

  • Page 6: Product Overview

    PRODUCT OVERVIEW Your robot vacuum cleaner is designed for cleaning homes, hotel rooms and small offices. It provides excellent cleaning for a variety of floor types including: • Wooden floors • Tiled floors • Stone floors • Short-pile carpets (less than 2cm deep) FEATURES OF YOUR ROBOT VACUUM CLEANER •...

  • Page 7: Product Diagrams

    PRODUCT DIAGRAMS MAIN BODY (TOP) Bumper Control Panel Wi-Fi Indicator Laser Module MAIN BODY (UNDERSIDE) Charging Front Wheel Contacts Side Brush Battery Cover Side Wheel Suction Port / Main Brush Dust Box Dust Collection Port MAIN BODY Dust Box / Water Tank Release Button DC Power Jack...
  • Page 8 DUST BOX Pre-Filter Cleaning Tool Dust Box Contacts HEPA Filter Sponge Filter Note: HEPA and Sponge filters are inserted using the flap on the top of the Dust Box. Dust Box Cover Dust Box WATER TANK & MOP Tank Sealing Cap Water Tank CHARGING BASE Dust Bag...

  • Page 9: Setting Up The Charging Base

    SETTING UP THE CHARGING BASE / DUST BOX Place the charging base within 5 cm of the back wall with no objects 1 m to either side and 2 m in front. Keep away from strongly reflective surfaces such as mirrors. Once the base is positioned, it can be plugged in to a suitable socket.

  • Page 10: Setting Up The Robot

    SETTING UP THE ROBOT Remove the dust box from the rear of the robot by pressing the release button on the rear of the dust box, and sliding the dust box out of the robot. Open the hatch on the top of the dust box. Insert the Sponge filter first, followed by the HEPA filter, ensuring that the tags on the HEPA filter are on the top to aid removal.

  • Page 11: Before Operation

    BEFORE OPERATION Before using your robot vacuum cleaner: o Arrange your furniture so that your robot can move around freely. o Block off hazards such as stairways and bannisters to prevent the risk of falling. o Avoid blocking corridors and narrow walkways, the robot will avoid those areas. Also ensure any objects that are under 2cm tall are removed to prevent the risk of the robot climbing and jamming.

  • Page 12: Quick Start Guide

    QUICK START GUIDE • Ensure the charging base and robot have been set up following the instructions on the previous page. POWER BUTTON HOME BUTTON WI-FI INDICATOR Press the POWER button to start cleaning. The robot will map out the room and start off at the edges of the room.

  • Page 13: Remote Control

    REMOTE CONTROL Power On/Off Display Plan Cleaning Return for Auto Charging (Smart Cleaning) Direction Confirm Suction Cleaning Clock Setting Spot Cleaning Schedule Setting Press the power button to change the unit between Sleep mode (Ready to work) and Standby (Power saving). The robot will also automatically enter standby if left inactive for 10 minutes.
  • Page 14 The arrow buttons can be used to take control of the robot vacuum, Press the UP and DOWN buttons to move forwards and backwards, and the LEFT and RIGHT buttons to rotate. Press the PLAY/PAUSE button on the centre to turn the suction on and off. If MANUAL no input is received for 10 seconds the robot will enter standby.

  • Page 15: Using The Water Tank And Mop

    USING THE WATER TANK AND MOP Instead of using the dust box, the robot can also be set up to mop hard surfaces using the supplied water tank. WARNING: Remove the water tank when charging to remove risk of electric shock. To fill tank, open tank sealing cap and slowly pour in water.

  • Page 16: Cleaning And Maintenance

    CLEANING AND MAINTENANCE SIDE BRUSH CLEANING AND REPLACEMENT Regularly check the condition of the side brushes for damage or entanglement with foreign objects. Clean the brushes with a cloth. If the brushes become damaged over time, please replace them. Note that the left and right brushes are different, and should be changed accordingly.

  • Page 17: Dust Box And Filter Cleaning

    DUST BOX AND FILTER CLEANING Press the dust box release button to remove the dust box. Open the dust box cover and empty any contents into a bin. Remove the primary filter. Open the top filter cover and remove the HEPA filter and sponge filter.
  • Page 18 Rinse the dust box, pre-filter and sponge filter with water. Dry the dust box and filter components. The pre-filter should be washed after the first 15-30 days. The maximum service life of the high efficiency filter is three months. Do not expose the filters to direct sunlight.

  • Page 19: Cleaning The Water Tank

    CLEANING THE WATER TANK Press the release button to remove the water tank. Remove the mop. Wash and dry the mop. Pour out any remaining water from the tank. Clean and dry the tank. REPLACING THE DUST BAG IN THE BASE Open the lid.

  • Page 20: Cleaning The Main Brush

    CLEANING THE MAIN BRUSH 1. Open the roller brush cover assembly. 2. Take out the roller brush 3. Use the cleaning tool provided to cut off any hair tangled on the roller brush. BATTERY REPLACEMENT / REMOVAL Using a small screwdriver, Remove the two screws from the...

  • Page 21: App Control

    APP CONTROL As well as being operated by the remote control, the iQlean-LR02C30 can be operated by the Tuya Smart home automation app which allows control from your phone by Wi-Fi. DOWNLOAD THE APP TO YOUR PHONE Download the TUYA SMART app, from your chosen app store, using the QR codes below, or by searching for the app in your chosen store.

  • Page 22: Downloading The App

    REGISTER AND LOG IN Press on the ‘register’ button at Read the Privacy policy and press Enter your email address or phone the Agree Button. number and press continue to the bottom of the screen. register. A verification code will be sent by Type in the password you would The app is now registered.
  • Page 23 PERSONALISE THE APP WITH YOUR HOME DETAILS TUYA can control a large number of devices within your home or across multiple homes. In this stage we define those houses, rooms and devices so that Tuya can control them. CREATING ROOMS Select ADD HOME.

  • Page 24: Connecting The Robot To The App

    CONNECTING USING AP MODE Before initiating the connection make sure that the WI-FI light on the robot is flashing slowly. If not follow the instructions for changing the connection mode. Also ensure your phone is connected to the WI-FI network. (We advise turning mobile data off during setup) 1.
  • Page 25 7. The Tuya app is now 8. This screen confirms your 9. Now the robot is being added to the Wi-Fi. connected to your Wi-Fi. connection to the hot spot. Select ‘Confirm hot spot connection, next’. 10. The device is now added. You will now be taken to the device control screen.

  • Page 26: Controlling The Robot Through The App

    CONTROLLING YOUR ROBOT THROUGH THE APP THE HOME SCREEN Add Device: Add a device to the app, and go through the setup process. Change Home: If you have a number of units at different houses, you can change Room Management: Allows between them rooms to be added, removed or renamed.
  • Page 27 DEVICE SCREEN The device screen is the main control screen for the vacuum cleaner robot, providing access to the controls to amend the functions and settings. NOTE: Due to continuous development of the app, the layout and availability of features are subject to change.

  • Page 28: Smart Scenes And Automation

    SMART SCENES AND AUTOMATION Smart Scenes is a powerful tool providing the option to customise the operation of the robot based both on conditions within the room and outside influences. This gives the user the option of specifying much more intelligent actions.
  • Page 29 AUTOMATION Automation allows an automatic action to be set up for the device. This can be triggered by the Time, temperature of the room, weather conditions, and a range of other influences. 1. Press on the Smart Scene 3. Select Automation to 2.

  • Page 30: App Troubleshooting

    PROFILE TAB The profile tab gives you the option to edit both your detail, and use the added features of the unit. CHANGING THE NAME OF YOUR DEVICE When in any of the device screens further settings for the device can be accessed, by pressing on the three dots in the top right-hand corner.

  • Page 31: Troubleshooting

    TROUBLESHOOTING FAULT POSSIBLE CAUSE SOLUTION Robot does not charge. Poor connection between the Ensure contacts are clean and electrodes on the base of the free from obstruction. robot and the charging base. The charging base is switched Keep charging base switched on off.

  • Page 32: Exploded View

    EXPLODED VIEW SPARE PARTS A number of spare parts are available for the robot vacuum, which are available from the retailer: CODE REPLACEMENT PART iQlean-LR02C30-MC Mop Cloth iQlean-LR02C30-HPFLT HEPA Filter iQlean-LR02C30-HPSPG Sponge Filter iQlean-LR02C30-LSB Left Side Brush iQlean-LR02C30-RSB Right Side Brush...

  • Page 33: Technical Specification

    350ml Dust box capacity 600ml DECLARATION OF CONFORMITY Hereby, electriQ declares that this Robot Vacuum Cleaner is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.electriQ.co.uk/content/declaration-of-conformity electriQ UK SUPPORT www.electriQ.co.uk/support...
