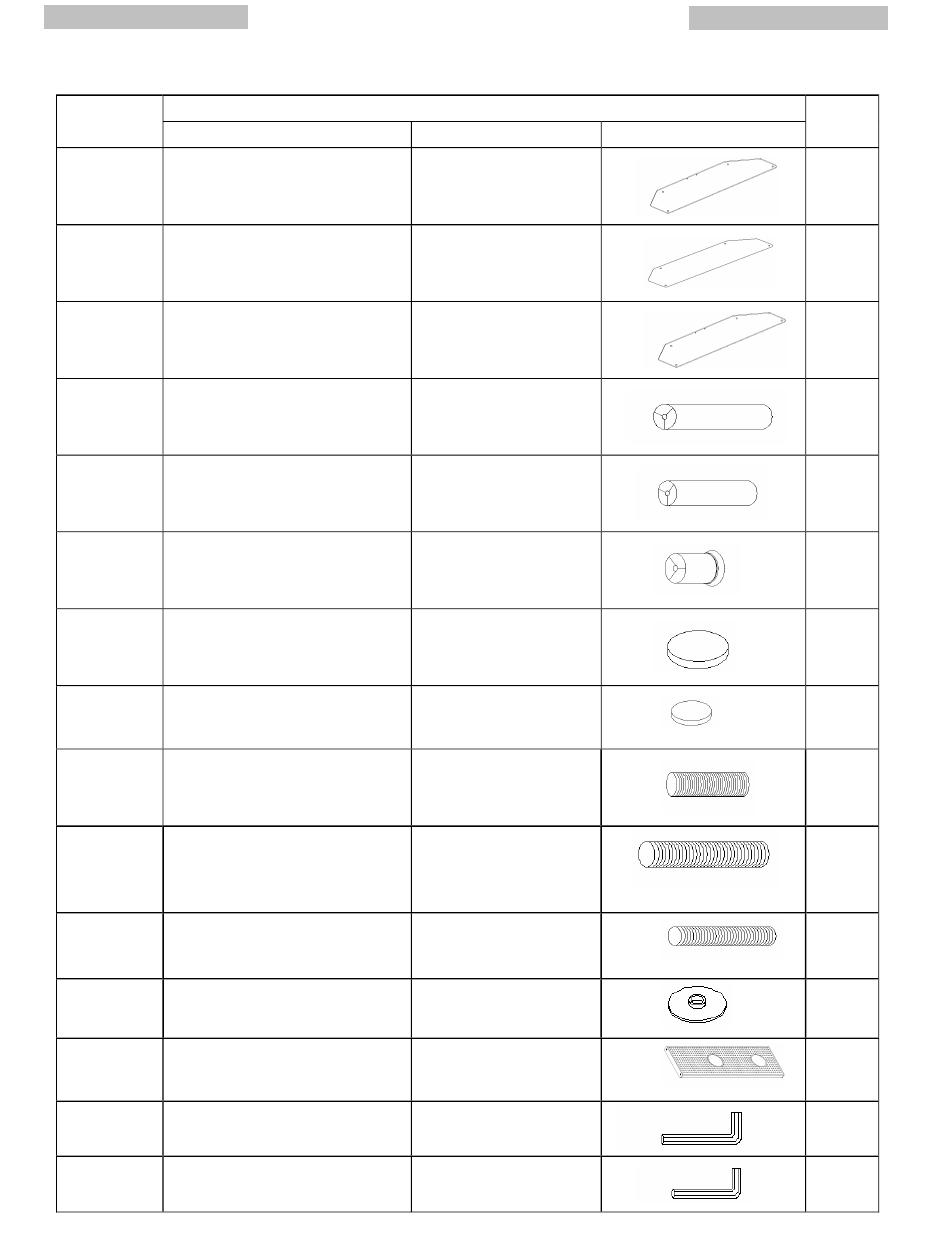

Components List
Part Name
T Glass
Glass for top shelf
M Glass
Glass for middle shelf
B Glass
Glass for bottom shelf
T-L
Long tube
T-S
Short tube
FT
Foot tube
CC-L
Chrome Cap(Large)
CC-S
Chrome Cap (Small)
I B-1
I bolt (NO.1)
I B-2
I bolt (NO.2)
I B-3
I bolt (NO.3)
T E S
Tube end seal
CT
Cable Tidy
TOOL-1
5# Tool (Screw IB-1 and IB-2)
TOOL-2
3# Tool(Screw IB-3)
Assembly Instructions

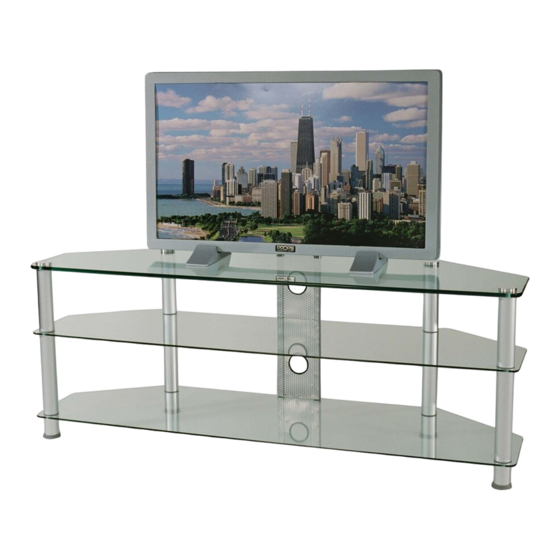

Model TVM-060
Part Description
Description
Size:1530*450mm
Thickness:12mm
Size:1530*425mm
Thickness:6mm
Size:1530*450mm
Thickness:6mm
Length:268mm
Diameter:50mm
Length:190mm
Diameter:50mm
Length:70mm
Diameter:50mm
Diameter:50mm
Thickness:8mm
Diameter:28mm
Thickness:8mm
Length:35mm
Diameter:10mm
Length:50mm
Diameter:10mm
Length:45mm
Diameter:6mm
Diameter:50mm
Thickness:2mm
Size:472*144mm
Thickness:20mm
Specification
Page 1/3
Qty
Figure
1
1
1
4
4
4
4
4
4
8
4
20
1
1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TVM-060 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RTA TVM-060

  • Page 1 Assembly Instructions Page 1/3 Model TVM-060 Components List Part Description Part Name Description Specification Figure Size:1530*450mm T Glass Glass for top shelf Thickness:12mm Size:1530*425mm M Glass Glass for middle shelf Thickness:6mm Size:1530*450mm B Glass Glass for bottom shelf Thickness:6mm Length:268mm...
  • Page 2 Assembly Instructions Page 2/3 Model TVM-060...
  • Page 3 Assembly Instructions Page 3/3 Model TVM-060 Stage 1 Please note stand is best assembled from the bottom up. 1.1 Screw in I bolts (I B-2) to the top of each foot tube (FT). 1.2 Place bottom shelf (B Glass) in position over each foot tube leg with I bolts passing through holes in each corner of the shelf.
