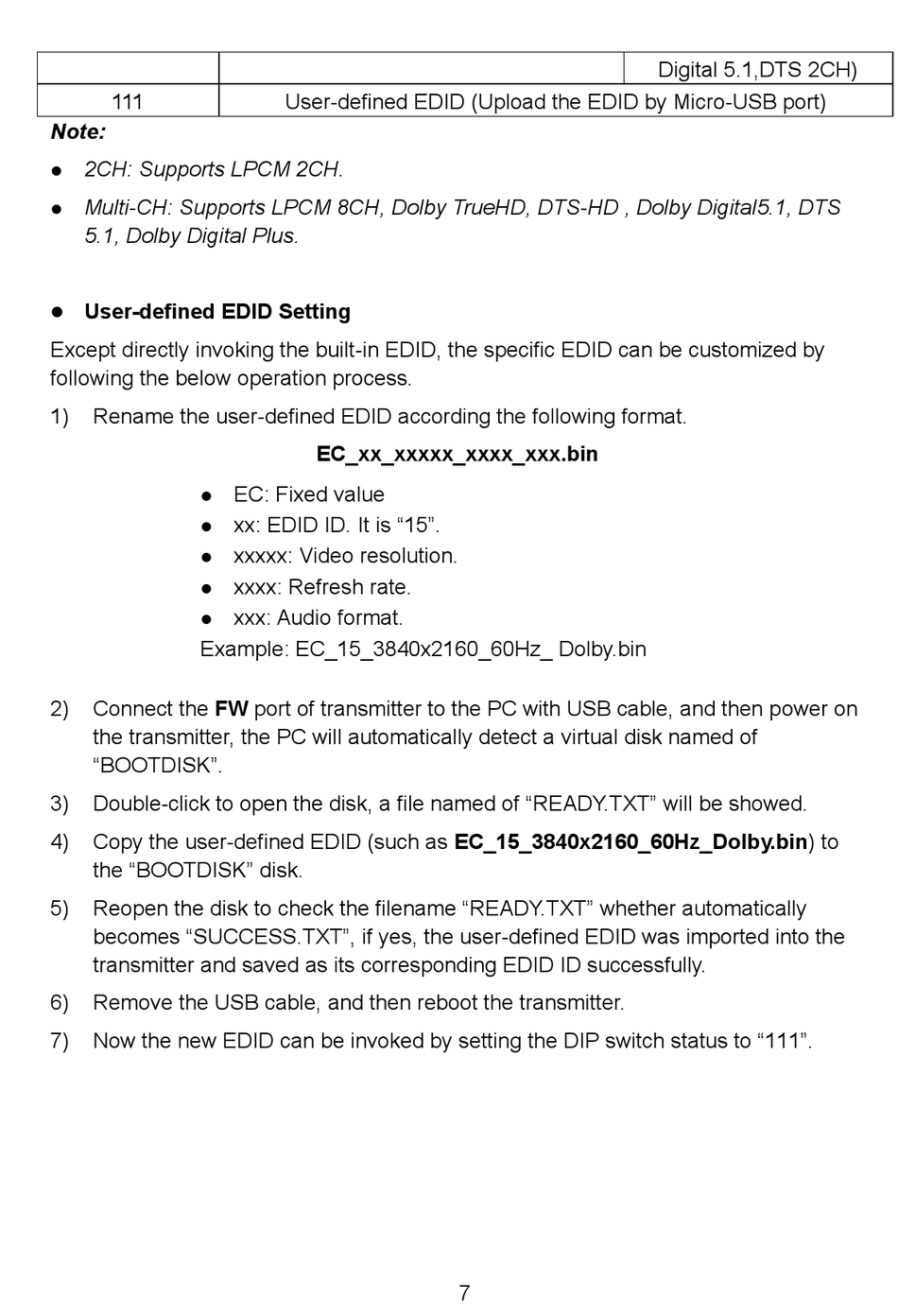

J-Tech Digital ARC-HDEX40ARC User Manual page 7

111
Note:
2CH: Supports LPCM 2CH.

Multi-CH: Supports LPCM 8CH, Dolby TrueHD, DTS-HD , Dolby Digital5.1, DTS

5.1, Dolby Digital Plus.
User-defined EDID Setting

Except directly invoking the built-in EDID, the specific EDID can be customized by
following the below operation process.
1) Rename the user-defined EDID according the following format.





Example: EC_15_3840x2160_60Hz_ Dolby.bin
2) Connect the FW port of transmitter to the PC with USB cable, and then power on
the transmitter, the PC will automatically detect a virtual disk named of
"BOOTDISK".
3) Double-click to open the disk, a file named of "READY.TXT" will be showed.
4) Copy the user-defined EDID (such as EC_15_3840x2160_60Hz_Dolby.bin) to
the "BOOTDISK" disk.
5) Reopen the disk to check the filename "READY.TXT" whether automatically
becomes "SUCCESS.TXT", if yes, the user-defined EDID was imported into the
transmitter and saved as its corresponding EDID ID successfully.
6) Remove the USB cable, and then reboot the transmitter.
7) Now the new EDID can be invoked by setting the DIP switch status to "111".
User-defined EDID (Upload the EDID by Micro-USB port)
EC_xx_xxxxx_xxxx_xxx.bin
EC: Fixed value
xx: EDID ID. It is "15".
xxxxx: Video resolution.
xxxx: Refresh rate.
xxx: Audio format.
7
Digital 5.1,DTS 2CH)
