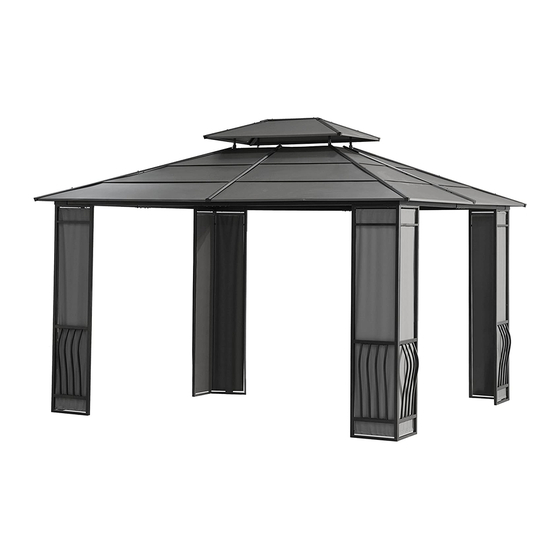

Congratulations on your purchase of our SUNJOY 12'x10' Hardtop Gazebo. Our clear, easy to
follow, step-by-step instructions will guide you through the assembly process from start to
finish.
WARNING:
● This unit is heavy. Do not assemble this item alone. 6-8 people are recommended for safe
assembly.
● Keep all children and pets away from assembly area. Children and pets should be supervised
when they are in the area of the Gazebo construction.
● Keep assembly area at least 6 feet from any obstruction such as a fence, garage, house,
overhanging branches, laundry line or electrical wires.
● Some parts may contain sharp edges. When assembling and using this product, basic safety
precautions should always be followed to reduce the risk of personal injury and damage to the
product. Please read all instructions before assembly and use.
● Check all bolts for tightness before use, and periodically check and tighten bolts as necessary.
● Assemble on level ground
Please do not return this product to the store. For technical assistance on assembly or replacement
parts. Please call Sunjoy Industries at 1-866-578-6569 from 8:00 am EST to 8:00 pm PST or fax the
replacement part form which is in the box to 1-740-283-3549 or Email customer.care@sunjoygroup.com
for assistance.
Assembly Instructions
Item# D-GZ841PST-C (PC Top)
.
IMPORTANT

Advertisement

loading
Need help?

Need help?

Do you have a question about the D-GZ841PST-C and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunjoy D-GZ841PST-C

  • Page 1 Please do not return this product to the store. For technical assistance on assembly or replacement parts. Please call Sunjoy Industries at 1-866-578-6569 from 8:00 am EST to 8:00 pm PST or fax the replacement part form which is in the box to 1-740-283-3549 or Email customer.care@sunjoygroup.com...
  • Page 2: Parts List

    Parts List Big panel 1 Big panel 2 Small panel 1 Small panel 2 Fence Connector Top connector Lower connector Short beam1 Short beam2 Long beam1 Long beam2 Long top bar Corner frame Oblique beam Middle beam 1 Middle beam 2 PC piece 1 PC piece 2 PC piece 3...
  • Page 3 Big left cover Big right cover Middle cover Small cover 1 Small cover 2 Left rail Right rail Middle rail Center plate Corner plate Hook Small top connector Cover Small slanted beam Panel wall Long netting bar 1 Long netting bar 2 Short netting bar 1 Short netting bar 2 Cover flap 1...
  • Page 4: Hardware Pack

    Hardware Pack 1 M6 Flat washer 124 PCS 16PCS M6X15 Bolt 64 PCS M6X70 Bolt 16 PCS M6X35 Bolt 16 PCS M6X25 Bolt 12 PCS M6 Wrench 2 PCS Fig.2: Connect big panel 1 (A1) and small panel 1 (B1) by using Fig.1: Secure the fence (C) to the bolts (JJ), flat washers (BB), repeat this for big panel 2 (A2) and panels (A1/A2/B1/B2) by using bolts...
  • Page 5 Fig.3: Fix top connector (E) and Fig.4: Attach assembly beams Fig.5: Secure the connector (D) to lower connector (F) onto short (G1/G2) to big panel 1 / big panel 2 / the beams by using bolts (FF) and small panel 1 / small panel 2 (A1/A2 beam / long beam (G1/G3) by flat washers (BB).
  • Page 6 Fig.6: Insert long top bar (I1) into corner frame (I2) and fix them by using bolts (AA) and flat washers (BB). Fig.8:Connect cover flap 3 (X3) Fig.9: Attach middle beam 1 Fig.10: Connect cover flap 1 Fig.7: Fix oblique beam (J) (X1) to middle beam 1 (K1), and to the lower end of oblique beam (K1) to (I2) by using by...
  • Page 7 Hardware Pack 3 M6X15 Screw 14 PCS M6 Flat washer 16 PCS M6X60 Bolt 2 PCS Fig.16: Insert piece Fig.17: Insert the Small cover (O1 and O2) Fig.18: Secure the cover (T) to the (M6/M7) into the rail on the small into the lower of the PC piece 6/7 (M6 and small top connector (S) with bolts slanted beam (U).
  • Page 8 Hardware Pack 4 Φ6X260 Stake 16 PCS Fig.24: Secure the whole gazebo Fig.23: Assemble the panel Wall to the ground with stakes (KK). (W) by using velcro straps. IMPORTANT:...
  • Page 9 1. Keep all children and pets away from assembly area. Children and pets should be supervised while gazebo is being assembled. 2. The assembled gazebo should be located at least 6 feet (2 m) from any obstruction such as a fence, garage, and house, overhanging branches, laundry lines or electrical wires. 3.
  • Page 10 Please do not return this product to the store. For technical assistance on assembly or replacement parts. Please call Sunjoy Industries at 1-866-578-6569 from 8:00 am EST to 8:00 pm PST or fax the replacement part form which is in the box to 1-740-283-3549 or Email customer.care@sunjoygroup.com for assistance.
  • Page 11 GAZEBO NETTING AND CURTAIN ASSEMBLY INSTRUCTIONS Netting or Curatin is available separatley Ring 104PCS Fig.1: Hang the mosquito net and curtain onto the netting tubes (W1, W2, W3 and W4) by using rings, please put the mosquito net inside.
