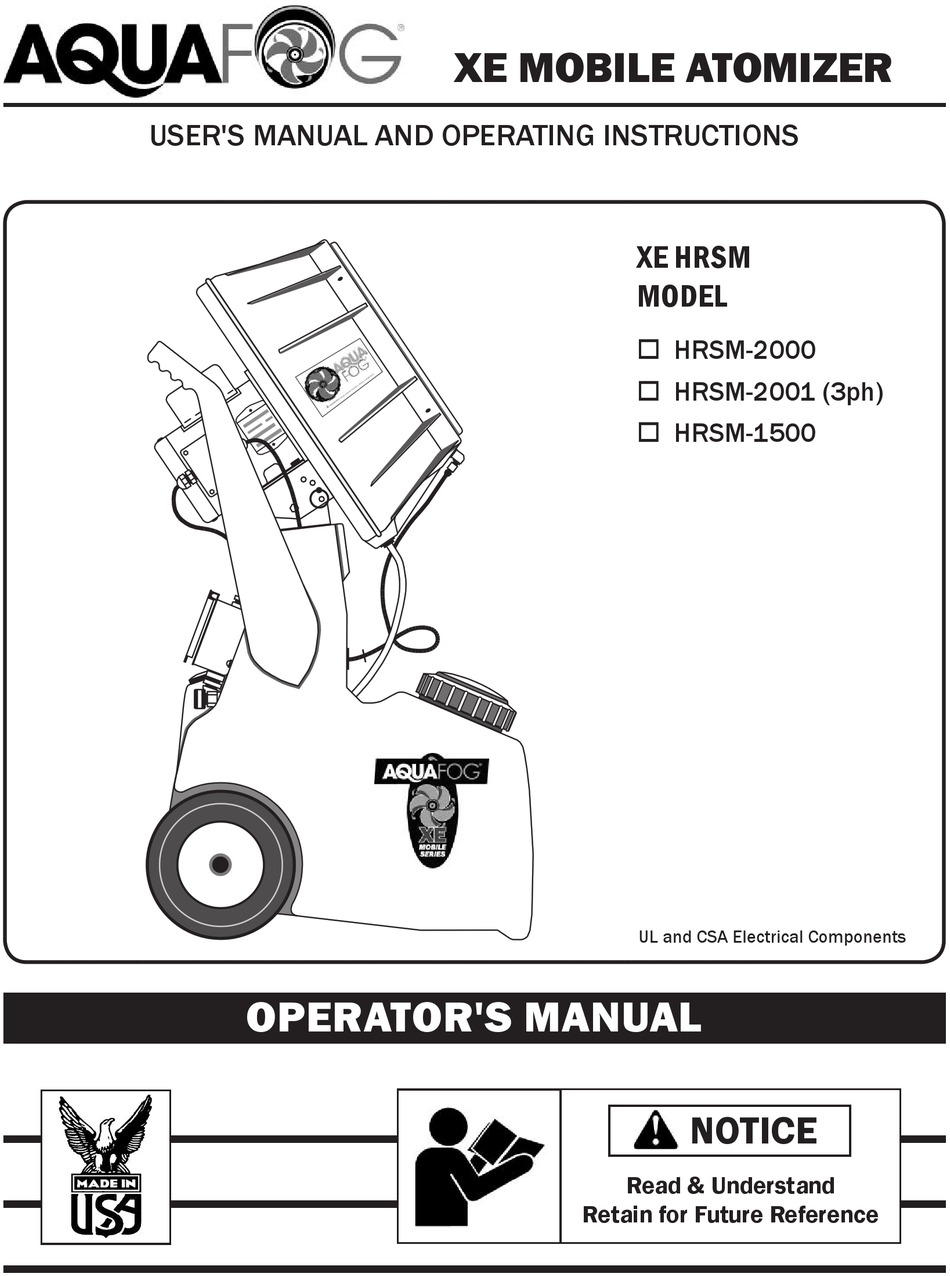

- Page 1 XE MOBILE ATOMIZER USER'S MANUAL AND OPERATING INSTRUCTIONS XE HRSM MODEL o HRSM-2000 o HRSM-2001 (3ph) o HRSM-1500 UL and CSA Electrical Components OPERATOR'S MANUAL NOTICE Read & Understand Retain for Future Reference...
-
Page 2: Safety Guidelines
Troubleshooting ....7 - 8 DEATH OR SERIOUS INJURY. Aquafog Fan Exploded View ..9 - 10 WARNING INDICATES A WARNING HRSM Tank Exploded View . - Page 3 ENERAL AFETY Since the mobile HRSM uses high-speed components to atomize liquids, the following safety DANGER HIGH-SPEED ROTATION precautions must be observed at all times: 1. Read all manuals included A motionless atomizer may with this product. Be familiar appear safe, but its blade with the product and controls.
- Page 4 ETTING TARTED NPACKING HECKLIST LECTRICAL DO NOT OPERATE UNIT IF GROUND FAULT RECEPTACLES WARNING WARNING DAMAGED DURING SHIPPING, ARE RECOMMENDED AND MAY HANDLING OR USE. DAMAGE MAY RESULT IN BREAKAGE BE REQUIRED BY LOCAL AND/OR NATIONAL CODE. AND CAUSE INJURY OR PROPERTY DAMAGE. USE OF AN EXTENSION CORD IS NOTICE Un-crate carefully and position HRSM on...
- Page 6 ESTING AND VALUATION BEFORE TESTING FAN MAKE SURE ALL OBJECTS ARE OUT OF THE DANGER ROTATION PATH OF THE FAN BLADES.HIGH-SPEED WARNING. KEEP HANDS CLEAR! MAKE SURE GUARDS ARE INSTALLED OR UNIT IS OUT OF REACH. ► For first-time evaluation, fill tank (with water only) about one quarter full. ►...
-
Page 7: Troubleshooting
ROUBLESHOOTING BEFORE INSPECTION AND /OR SERVICE WARNING DISCONNECT AND LOCK OUT POWER SOURCE. 1. Fan Does Not Operate A.) Check voltage requirements on unit and electrical supply. Check for live receptacle, plug, power line and toggle switch. B.) Look for any loose connections inside the main motor's junction box. 2. - Page 8 ROUBLESHOOTING CONT BEFORE INSPECTION AND /OR SERVICE WARNING DISCONNECT AND LOCK OUT POWER SOURCE. 6. Poor Quality Fog A.) The liquid feed tube (Part #6) may not be inserted properly into the reservoir. The feed tube must be inserted approximately 1/4" into the center bearing, but it should not touch the back of the reservoir.
- Page 12 DENTIFICATION...
-
Page 13: Maintenance
5. Storage Protect your mobile Aquafog from winter damage. Expansion due to freezing can burst the fittings or the internal feed pump. If storing unit in below freezing temperatures, be sure all fluid is drained from the tank area. Damage due to freezing is not covered...
