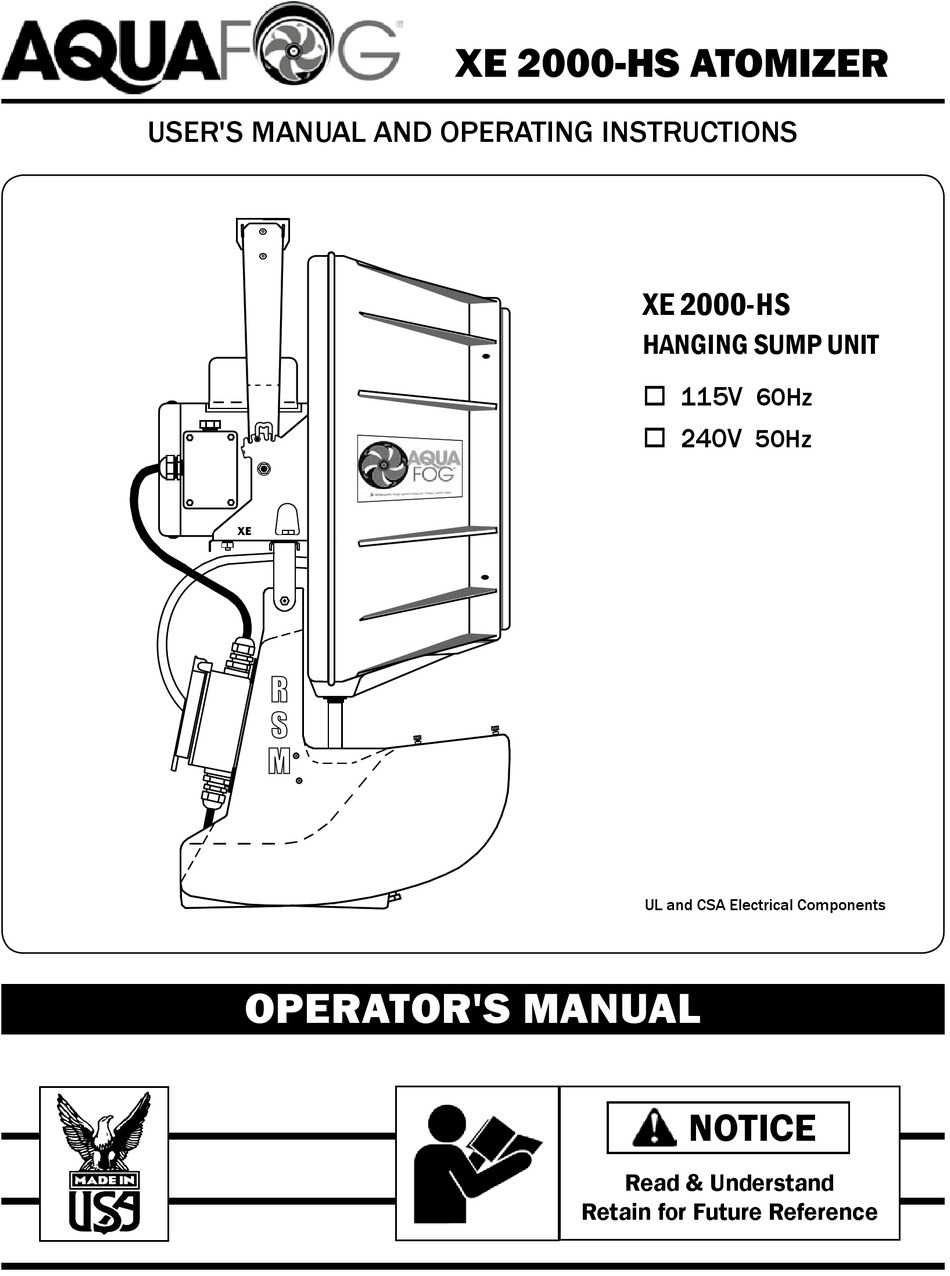

- Page 1 XE 2000-HS ATOMIZER USER'S MANUAL AND OPERATING INSTRUCTIONS XE 2000-HS HANGING SUMP UNIT 115V 60Hz 240V 50Hz UL and CSA Electrical Components OPERATOR'S MANUAL NOTICE Read & Understand Retain for Future Reference...
-
Page 2: Table Of Contents
Troubleshooting ....11 - 12 SITUATION WHICH, IF NOT AVOIDED, WILL RESULT IN XE 2000-HS Exploded View ..13 - 14 DEATH OR SERIOUS INJURY. -
Page 3: General Safety
Environmental Protection Agency (EPA) control programming. guidelines and regulations when fogging pesticide or chemical solutions. When a XE 2000-HS is automated by controls, warning signs should be posted near the high- 3. Follow all local electrical and safety codes speed equipment. -
Page 4: Common Setups
XE 2000-HS. Ordinary Ordinary Water Supply Water Supply (20-85 PSI) (20-85 PSI) XE 2000-HS perform best when Chemical Feeder mounted up high. If mounted 7 feet above working height, OSHA regulations allow fans to be Pesticide/Fungicide unguarded. (Liquid Concentrate) -
Page 5: Placement
lacement Placement Guidelines TO HANG THE UNIT, USE A LEVEL 1" PIPE OR DRILLABLE FLAT NOTICE AREA ABLE TO SUPPORT OVER 70 LBS. Mount the fan high overhead. Allow room in front of and below the fan for the unobstructed propulsion of fog. Rule of thumb: the higher the better, but mount at least three feet away from any roofing structures. -
Page 6: Placement
lacement cont Large Structures, Natural Ventilation In large structures with natural ventilation, propel fog the length of the structure with the first fan row no more than 30' from the end wall. The first fan should be: > > > >... -
Page 7: Unpacking / Installation
► Level ► 7/16" Wrenches ► 1/2" Wrenches USING A LADDER TO HANG THE XE 2000-HS IS DANGEROUS. DANGER USE PROPER LIFTING EQUIPMENT LIKE A SCISSOR LIFT. nstallation (A) Secure to Pipe (B) Universal Mount (C) With Oscillator... -
Page 8: Pivot / Utilities
Djustment Pivot Locking System After securing the XE 2000-HS, a pivot adjustment can be made to direct the fogging output to a desired location. This unit has a positive pivot locking system with four available positions. ~ 5º up ~ Horizional ~ 7º... -
Page 9: Power Connection
Remove the motor junction box cover. Strip the ends of the oscillator power cord wires. Using the wire nuts provided, connect the oscillator cord wires and XE 2000-HS motor wires as shown in the appropriate wiring schematic. (See Page 17) U S A... -
Page 10: Operation
If using an oscillator, check the rotational movement and be SURE THE POWER CORD HAS ENOUGH SLACK. If there is not enough, try re-mounting the XE 2000-HS with the oscillator power cord falling in line with its motor. NOTICE... -
Page 11: Troubleshooting
roubleshootinG BEFORE INSPECTION AND/OR SERVICE, WARNING DISCONNECT AND LOCK OUT POWER SOURCE. 1. Fan Does Not Operate A.) Check voltage requirements on unit and electrical supply. Check for live receptacle, plug, power line and unit's power On/Off switch. B.) Look for any loose connections inside the main motor's junction box. 2. -
Page 12: Troubleshooting
roubleshootinG cont BEFORE INSPECTION AND/OR SERVICE, WARNING DISCONNECT AND LOCK OUT POWER SOURCE. 6. Fan Motor Becomes Excessively Hot The main fan motor normally becomes very hot to the touch. However, if it gets so hot that it begins to smell or smoke or the power cord becomes hot, discontinue operation and consult an electrician to properly evaluate the problem. -
Page 13: Xe 2000-Hs Exploded View
Xe 2000-hs e XploDeD A Q U A B l a b l y F O G A s s ▼ Gasket 400-089 400-108 400-041 65-lg-ID S u m a l l W-14 S u m Gasket a l l... - Page 14 659, 32 n g e p t i o 658, 42, 660 Hanger U-Bolts R e a r o f Bolt u s i 400-047 10-2000 o t o o f m i e w S i d O s c i l l a t o r ' s p...
-
Page 15: Part Identification List
Dentification ID # Description Qty per Unit ID # Description Qty per Unit XE 2000-HS COMPONENTS XE Housing 115V Power cord (for 60/50Hz models) Safety guard 10-24 x 1/2" setscrew SST Liquid feed tube fitting 5/16 Small ID washer SST Drain fitting 5/16-18 x 2"... -
Page 16: Oscillator Exploded View
scillator XploDeD scillatOr xplOdEd 115Volt 60 hz. Connect White and Blue Wires Do Not Use Yellow 220-240Volt 50/60 hz. Connect Yellow and Blue Wires Through Do Not Use White Cover 400-033 ID # Description OSCILLATOR COMPONENTS 1/4-20 nylon stop nut SST Liquid-tight connector 1/4-20 x 5/8"... -
Page 17: Maintenance
5. Storage 2. Flush Out Tank Protect your Aquafog from winter damage. The tank should be rinsed regularly, especially Expansion due to freezing can burst fittings, if using chemicals. Remove drain plug solenoids and flowmeters. If storing unit in below... -
Page 18: Warranty
Aquafog and accessories are warranted to the original purchaser against defects in material and workmanship under normal use for one full year from date of purchase. Any part determined to be defective and returned to the manufacturer, shipping cost prepaid, will be repaired or replaced at Jaybird Manufacturing, Inc.'s discretion without charge.
