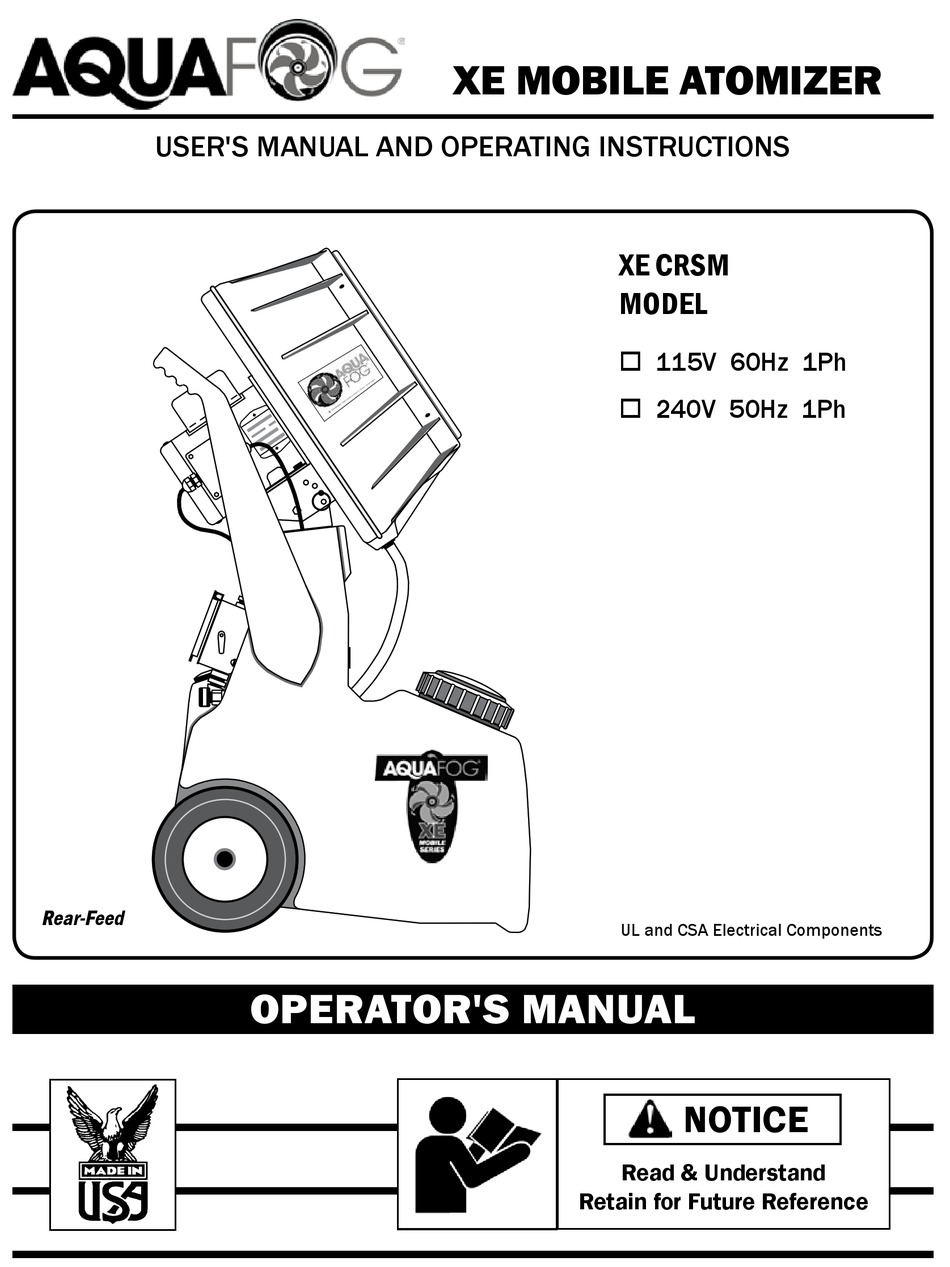

- Page 1 XE MOBILE ATOMIZER USER'S MANUAL AND OPERATING INSTRUCTIONS XE CRSM MODEL 115V 60Hz 1Ph 240V 50Hz 1Ph Rear-Feed UL and CSA Electrical Components OPERATOR'S MANUAL NOTICE Read & Understand Retain for Future Reference...
-
Page 2: Table Of Contents
Troubleshooting ....11 - 12 CAUTION INDICATES A CAUTION Aquafog Fan Exploded View ..13 - 14 POTENTIALLY HAZARDOUS SITUATION WHICH, IF NOT AVOIDED, MAY RESULT IN CRSM Tank Exploded View . -
Page 3: General Safety
eneral afety Since the mobile CRSM uses high-speed components to atomize liquids, the following safety DANGER HIGH-SPEED ROTATION precautions must be observed at all times: 1. Read all manuals included A motionless atomizer may with this product. Be familiar appear safe, but its blade with the product and controls. -
Page 4: Getting Started
ettinG tarted npacking hecklist lectrical DO NOT OPERATE UNIT IF GROUND FAULT RECEPTACLES WARNING WARNING DAMAGED DURING SHIPPING, ARE RECOMMENDED AND MAY HANDLING OR USE. DAMAGE MAY RESULT IN BREAKAGE BE REQUIRED BY LOCAL AND/OR NATIONAL CODE. AND CAUSE INJURY OR PROPERTY DAMAGE. USE OF AN EXTENSION CORD IS NOTICE ►... -
Page 5: Controls/ Installation
valuation ontrolS nStallation BEFORE TESTING FAN MAKE SURE ALL OBJECTS ARE OUT OF THE DANGER ROTATION PATH OF THE FAN BLADES.HIGH-SPEED WARNING. KEEP HANDS CLEAR! MAKE SURE GUARDS ARE INSTALLED OR UNIT IS OUT OF REACH. ► For first-time evaluation, fill tank (with water only) about quarter full. ►... -
Page 6: Flow Rates/ Calibration
ateS LOW FLOW, Feed Tube HIGH FLOW, Feed Tube Output Range: Output Range: @ 60Hz .75 - 3.75 @ 60Hz 2.0 - 11.25 Colored Insert @ 50Hz 2.8 - 14.0 @ 50Hz 7.6 - 31.2 High Flow Tube (provided) Low Flow Tube comes pre-installed Is suited for high flow applications, switch the unit The low flow feed tube has higher precision calibration to the high flow feed tube. -
Page 7: Chemical Dilution
hemical ilution umiGation "UlV" - s Ummary ULV (Ultra Low Volume) refers to the amount of water needed to mix and disperse chemical solution evenly. Typical sprayers use small water droplets to carry the chemical solution to its intended source. That spraying process requires much more water than a ULV method to treat an equal amount of area. -
Page 8: Placement And Setup
lacement and etup When to Apply Treatment The BEST time for a pesticide application is at dusk, when the air is cooling off. Another good time is at early dawn before the sun warms up the area. What to Expect During fogging operation, millions of small fog particles will quickly evaporate into microscopic sticky chemical residue. -
Page 9: Treatment Procedure
reatment rocedure FOLLOW E.P.A. SAFETY NO HUMANS OR ANIMALS DANGER DANGER INSTRUCTIONS AND SHOULD BE IN THE GUIDELINES FOR PESTICIDE AND CHEMICAL USE. TREATMENT AREA DURING APPLICATION. WEAR PROTECTIVE USE ONLY ON PLANTS DANGER NOTICE CLOTHING INCLUDING MARKED SAFE FOR GLOVES, HOOD, ETC. -
Page 10: Clean-Up/ Maintenance
► Winter Storage Protect your mobile Aquafog from winter damage. Expansion due to freezing can burst the fittings or the internal feed pump. If storing unit in below freezing temperatures, be sure all fluid is drained from the tank area. Damage due to freezing is not covered under warranty. -
Page 11: Troubleshooting
roubleShootinG BEFORE INSPECTION AND/OR SERVICE, WARNING DISCONNECT AND LOCK OUT POWER SOURCE. 1. Poor/Inconsistent Fogging Output A.) Inconsistent or spotty chemical coverage usually occurs because the fog volume output is too high. Ideally, fog will disappear when fogging at rates near 3 GPH. To check for fog volume output, refer to Maximum Pre-set Flow Rate (See Page 6). - Page 12 roubleShootinG cont BEFORE INSPECTION AND /OR SERVICE, WARNING DISCONNECT AND LOCK OUT POWER SOURCE. 5. No Fog A.) The self-priming system will usually take about 10 seconds before you see fog output. Check to see if the flow control valve is open. The valve is open when the handle is down. B.) Check the pre-set flow rate valve located inside the tank (refer to page 6 Factory Pre-set Flow Valve).
-
Page 13: Aquafog Fan Exploded View
quafoG xploded dentification ID # Description Qty/Unit Housing Safety guard Liquid feed tube fitting Drain fitting 10-2000 WDD motor 115/240V // 60/50Hz Pinned venturi assembly Rear guard 1/4" Heavy large diameter washer 1/4-20 nylon stop nut SST SST washer for feed tube fitting 10-24 x 3/8"... - Page 14 600-R 600-L R e a r o f u s i f t o l a t e S i d o t p p i v 400-047 10-2000 t o r ' s J u n c t i o n B o x W-14 10-2000...
-
Page 15: Crsm Tank Exploded View
crSm t xploded 143 - 3/8" tube fitting provided for optional connection to metering pump k ' s T a n T a n i d e I n s 71-C W-14... - Page 16 dentification dentification ID # Description Qty/Unit 1/4-20 nylon stop nut SST Liquid-tight cord fitting T a n i d e M20 Serrated lock washer SST I n s Fluid level gauge e n t RSM tank p o n Fill cap p u m 1/2"...
-
Page 17: Electrical Schematics
lectrical chematicS 115 V 60/50 H hase ertz Domestic (USA)/ Foreign 115 VAC LINE SPST 2, 4, 5 1, 3, 8 Denotes Line Connection 115V SPST Denotes Termination PUMPS Note: All green wires go to ground Brown Blue 115V 240 V 50 H hase ertz... -
Page 18: Warranty
Aquafog and accessories are warranted to the original purchaser against defects in material and workmanship under normal use for one full year from date of purchase. Any part determined to be defective and returned to the manufacturer, shipping cost prepaid, will be repaired or replaced at Jaybird Manufacturing, Inc.'s discretion without charge.
