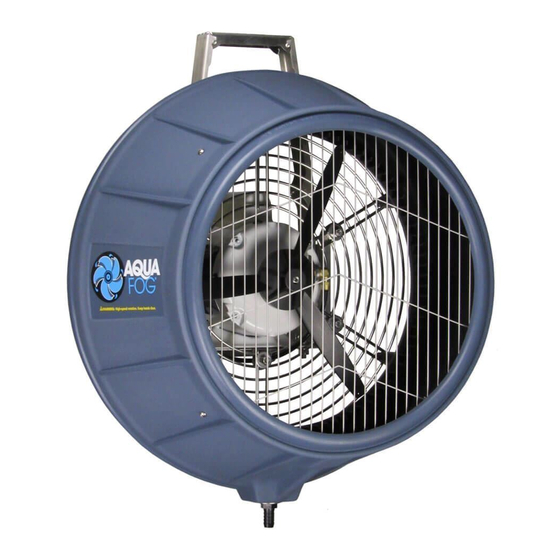

- Page 1 GT-500 ATOMIZER USER'S MANUAL AND OPERATING INSTRUCTIONS GT 500 MODEL o 115V 50/60Hz o 230V 60Hz o 240V 50Hz UL and CSA Electrical Components OPERATOR'S MANUAL NOTICE Read & Understand Retain for Future Reference...
-
Page 2: Table Of Contents
ABLE OF ONTENTS ESCRIPTION Aquafog units are intended to condition large volumes of air using water or other non-hazardous PAGE liquids at air temperatures between 31ºF and 160ºF. General Safety ...... -
Page 3: General Safety
ENERAL AFETY Since the GT 500 uses high-speed components DANGER HIGH-SPEED ROTATION to atomize liquids, the following safety precautions must be observed at all times: KEEP SAFETY GUARDS ATTACHED DANGER 1. Read all manuals included AND IN GOOD WORKING CONDITION with this product. -
Page 4: Common Setups
OMMON ETUPS Submersible Pump with head height rating exceeding fan installation height. -
Page 5: Placement
LACEMENT Placement Guidelines LOCATE A LEVEL AREA TO SET UP A STAND. TO HANG THE NOTICE UNIT, SECURE AND LEVEL 1" PIPE ABLE TO SUPPORT 50 LBS. Mount the fan high overhead. Allow room in front of and below the fan for the unobstructed propulsion of fog. - Page 6 LACEMENT CONT Large Structures, Natural Ventilation In large structures with natural ventilation, propel fog the length of the structure with the first fan row no more than 25' from the end wall. The first fan should be: > > > >...
-
Page 10: Operation
PERATION BEFORE TESTING FAN MAKE SURE ALL OBJECTS ARE OUT OF THE DANGER ROTATION PATH OF THE FAN BLADES. HIGH-SPEED WARNING. KEEP HANDS CLEAR! MAKE SURE GUARDS ARE INSTALLED OR UNIT IS OUT OF REACH. BUMP START GT 500 and check for proper fan blade rotation (clockwise if looking at front of unit). -
Page 11: Troubleshooting
ROUBLESHOOTING BEFORE INSPECTION AND/OR SERVICE WARNING DISCONNECT AND LOCK OUT POWER SOURCE. 1. Fan Does Not Operate A.) Check voltage requirements on unit and electrical supply. Check for live receptacle, plug, power line and toggle switch. B.) Look for any loose connections inside the main motor's junction box. 2. - Page 12 ROUBLESHOOTING CONT BEFORE INSPECTION AND/OR SERVICE WARNING DISCONNECT AND LOCK OUT POWER SOURCE. 6. Fan Motor Becomes Excessively Hot The main fan motor normally becomes very hot to the touch. However, if it gets so hot that it begins to smell or smoke or the power cord becomes hot, discontinue operation and consult an electrician to properly evaluate the problem.
-
Page 15: Oscillator Exploded View
SCILLATOR XPLODED Flowmeter Panel Exploded View Entire panel is also available: part# XE-FP (must specify flowmeter size) -
Page 16: Part Identification List
DENTIFICATION ID # Description Qty per Unit ID # Description Qty per Unit GT 500 COMPONENTS 10-32 x 1/4" button head screw Drain fitting #10 Lock washer 13-500 GT Wash down duty motor Fan blade assembly Pinned venturi assembly Feed tube assembly Rear guard Blade set screw 1/4"... -
Page 17: Maintenance
5. Storage A. Next, pull the retainer Protect your Aquafog from winter damage. cap straight up by using Expansion due to freezing can burst fittings, slot B. NOTE: After cap is solenoids and flowmeters. If storing unit in below... -
Page 18: Warranty
IMITED ARRANTY Aquafog and accessories are warranted to the original purchaser against defects in material and workmanship under normal use for one full year from date of purchase. Any part determined to be defective and returned to the manufacturer, shipping cost prepaid, will be repaired or replaced at Jaybird Manufacturing, Inc.'s discretion without charge.
