CEBORA S.p.A.

5.3 - Panel board (16) code 5.602.126.

5.3.1 - Connector table.
Connector Terminals
CN1 2(+) – 1(-)
CN1 3(+) – 10(-)
CN1 4
CN1 5
CN1 6
CN1 7
CN1 8
CN1 9
J1 1 - 9
J1 2
J1 3 - 8
J1 4 - 8
J1 5
J1 6
J1 7
J1 10

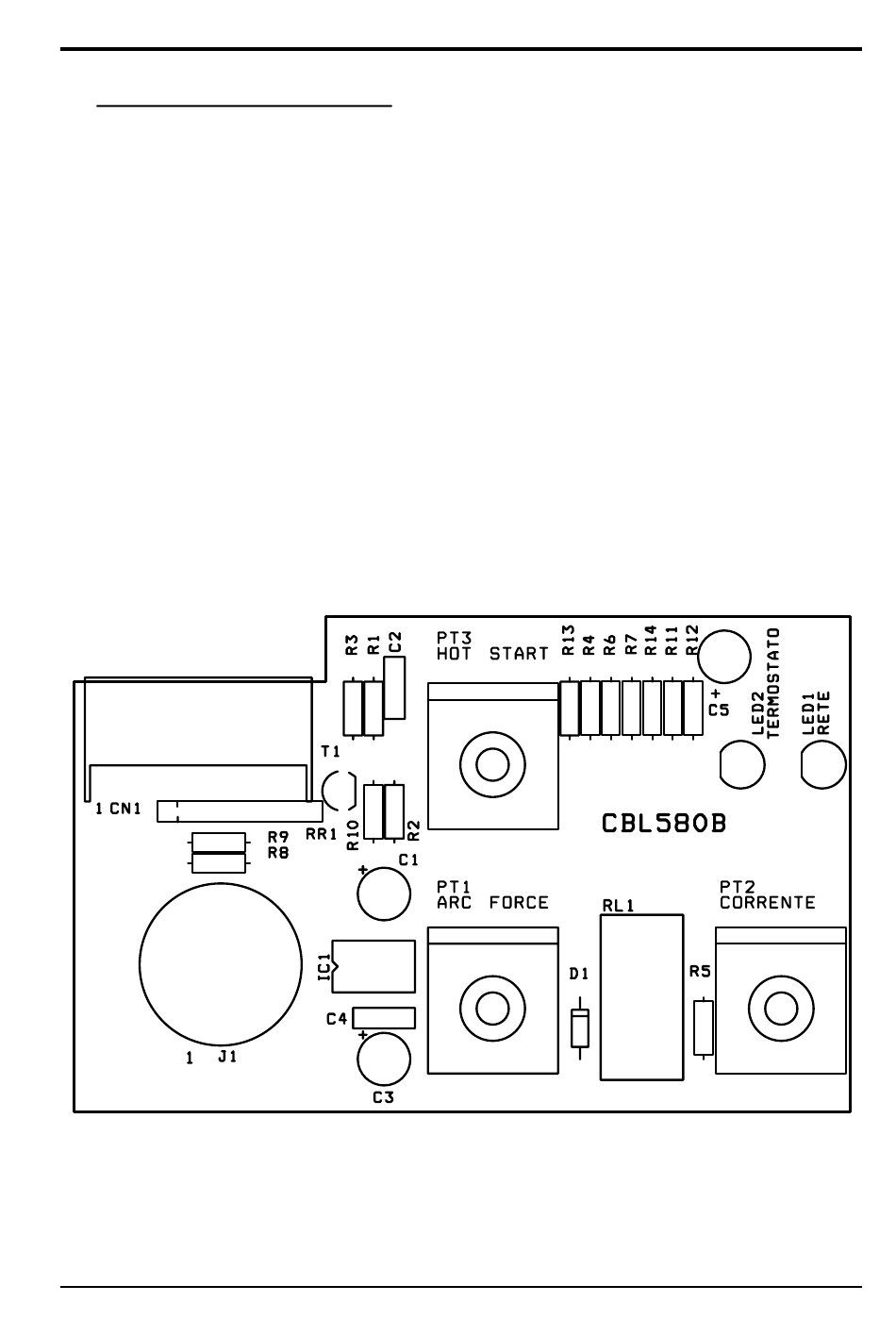

5.3.2 - Topographical drawing.
3.302.113
Function
5Vdc power supply input for panel board (16).
13.8 Vdc power supply input for panel board (16).
ARC-FORCE reference output.
welding current reference output.
power source blocked signaling input.
start command output (from external button or internal command).
HOT-START reference output.
HOT-START enable input.
input from external start button.
+ power supply output for external current potentiometer.
external start button enable input.
welding current reference enable input from external potentiometer.
NU.
NU.
power supply output (-) for external current potentiometer.
current reference input from external potentiometer cursor.
17
20/11/02
