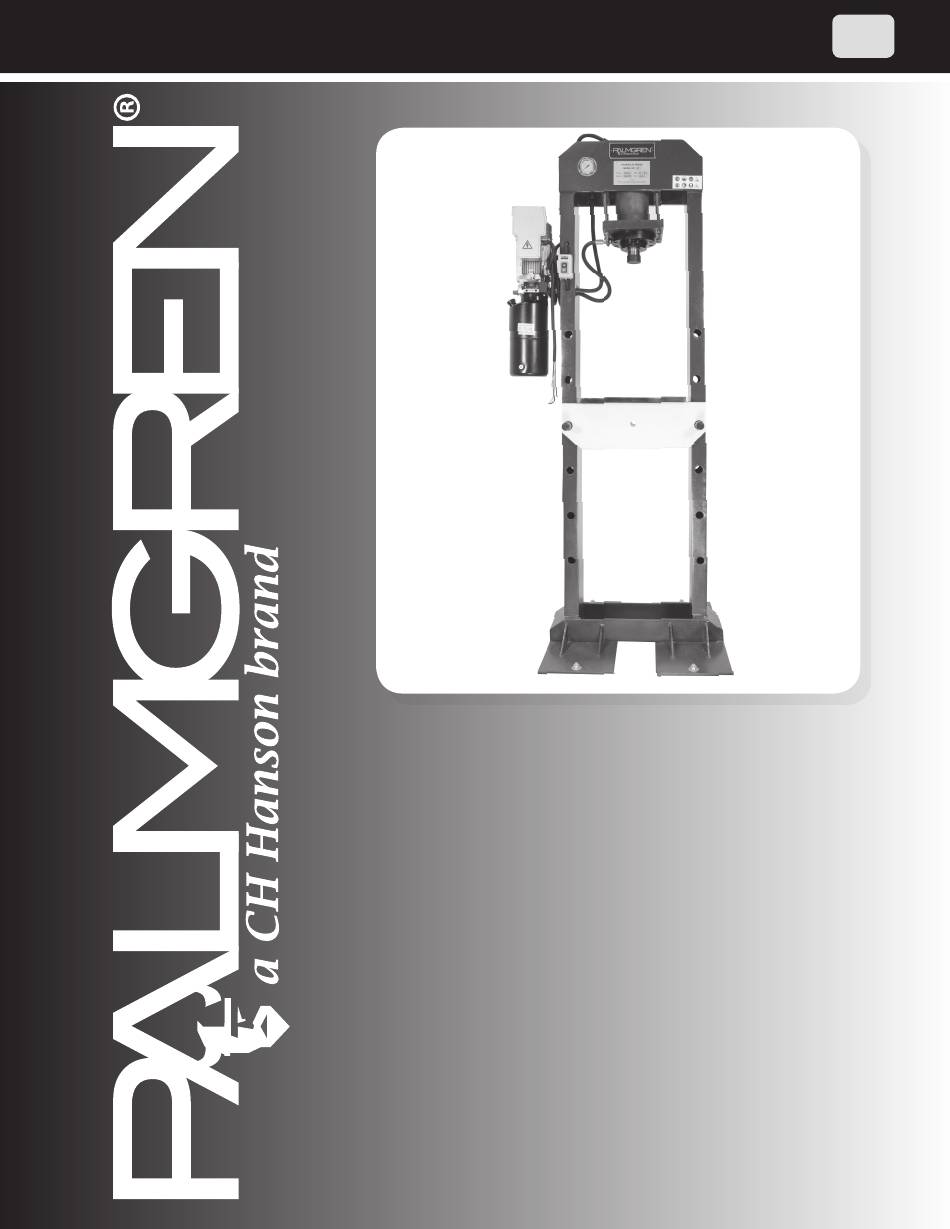

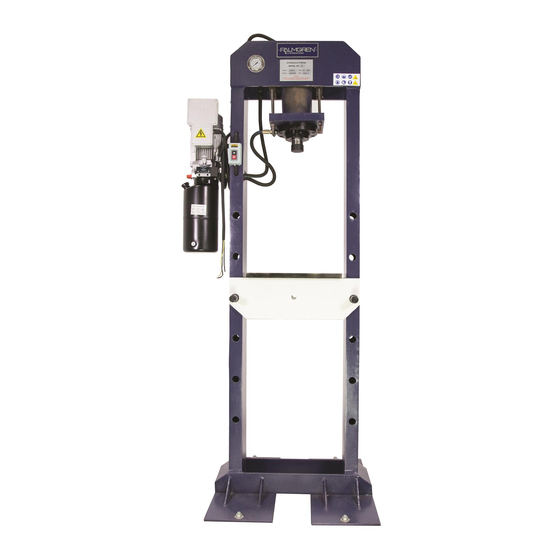

- Page 1 Operating Instructions & Parts Manual 25 Ton Electrical Hydraulic Press Model 9661614 9643570.01...
- Page 2 DAMAGE! RETAIN INSTRUCTIONS FOR FUTURE REFERENCE. PLEASE REFER TO BACK COVER FOR INFORMATION REGARDING PALMGREN’S WARRANTY AND OTHER IMPORTANT INFORMATION. Model #: ___________________ Serial #: ___________________ Purch. Date: _______________ © 2019 Palmgren / a C.H. Hanson Brand All Rights Reserved...
-
Page 3: Getting Started
GETTING STARTED Package Contents: Main body Save this manual Cylinder You will need this manual for the safety warnings and precau- Motor tions, assembly instructions, operating and maintenance procedures, parts lists and diagrams. Keep your invoice with this “V” type iron manual. -
Page 4: Safety Rules
• The Model 9661614 Electric Hydraulic Press is designed and intended for use by properly trained operators. You must be familiar with the proper and safe operation of a manual Electric Hydraulic Press. -
Page 5: Specifications
• Do not use the Model 9661614 Electric Hydraulic Press for ASSEMBLY/INSTALLATION any use other than its intended application. Improper use of Power source this tool revokes and voids any real or implied warranty. The manufacturer is not responsible for any injury that may result •... -
Page 6: Machine Dimensions
NOTE: The Model 9661614 Electric Hydraulic Press weighs 705 MACHINE DIMENSIONS lbs. Be certain any machine or devices used to lift the press are capable of handling this weight. If manually lifting, ensure that enough people are performing the lift. -
Page 7: Operation
The machine’s functional parts Extract the support pin as shown below. To properly operate the Model 9661614 Hydraulic Press, you must familiarize yourself with all of the machine’s controls. Insert the pin into the next adjacent hole, either above or below the original hole. -
Page 8: Troubleshooting Guide
TROUBLESHOOTING GUIDE Symptom Possible Cause(s) Corrective Action Ram does not move Low oil condition Fill oil Ram does not press Cylinder valve not closed Close cylinder valve... -
Page 9: Maintenance/Repair
MAINTENANCE/REPAIR Before any maintenance is performed, ensure all pressure has been released. Daily: • General visual inspection-check for any visible damage or missing parts • Check that all labels are clearly visible- must be legible as well • Check for any leaks in the hydraulic units Weekly: •... -
Page 10: Electrical Schematic
MAINTENANCE/REPAIR - CROSS SECTION OF PISTON Item Description Item Description Oil Vat Pressurize Ring StopCock Pressurize Ring Piston Ring Pressurize Ring Pressurize Ring Vat Cover Piston Shaft Pressurize Ring Pressurize Ring Flange ELECTRICAL SCHEMATIC... -
Page 11: Hydraulic Schematic
HYDRAULIC SCHEMATIC... - Page 12 - 3 YEARS. The obligation of C.H. Hanson / Palmgren is limited solely to the repair or replacement, at our option, at its factory or authorized repair agent of any part that should prove inoperable.
