o o p p e e r r a a t t i i n n g g m m a a n n u u a a l l & & p p a a r r t t s s l l i i s s t t
2 2 0 0 " "

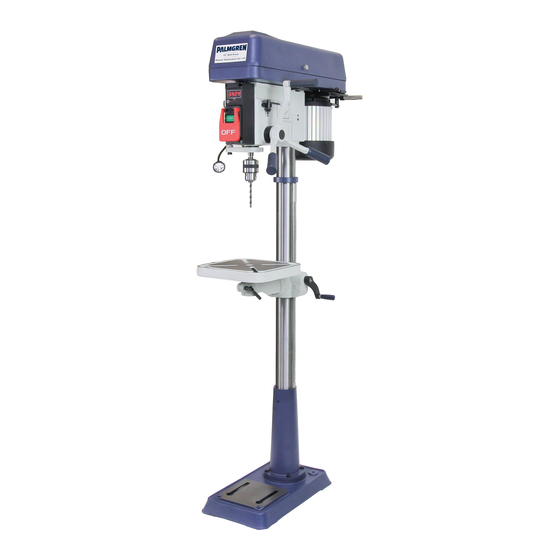

H H E E A A V V Y Y D D U U T T Y Y F F L L O O O O R R M M O O D D E E L L
D D R R I I L L L L P P R R E E S S S S
Read carefully and follow all safety rules and operating instructions before
first use of this product.
8 8 0 0 2 2 0 0 6 6
20155.09-0703
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Palmgren 80206
Summary of Contents for Palmgren 80206
- Page 1 o o p p e e r r a a t t i i n n g g m m a a n n u u a a l l & & p p a a r r t t s s l l i i s s t t 8 8 0 0 2 2 0 0 6 6 2 2 0 0 ″...
-
Page 2: Specifications
Motor ..... . . 1 HP, 115/230 V, 15.5/7.7 A, 1725 RPM and a coolant trough. Other features of the Palmgren drill press are... - Page 3 Palmgren Operating Manual & Parts List 80206 • Slide drill press head assembly onto top of column. SAFETY RULES (CONTINUED) • Position head so that it is centered over base. KNOW HOW TO USE TOOL • Secure head by inserting threaded bushing (Ref. No. 64) into •...
-
Page 4: Power Source
Palmgren Operating Manual & Parts List 80206 • Use only 3-wire extension cords having 3-prong grounding INSTALLATION (CONTINUED) type plugs and 3-pole receptacles which accept the tool plug. • If the extension cord is worn, cut, or damaged in any way, Properly Grounded Outlet replace it immediately. -
Page 5: Speed Adjustments
Palmgren Operating Manual & Parts List 80206 OPERATION (CONTINUED) Spindle Motor Spindle Rotation Figure 4 – Spindle Speed Adjustment Steel Steel Cast & Steel Belt Zinc Alum. & Cast Iron Mild & Med. Stainless & Location Wood Diecast Brass Plastic &... - Page 6 Palmgren Operating Manual & Parts List 80206 M M A A I I N N T T E E N N A A N N C C E E WARNING: Turn switch off and remove plug from power source outlet before maintaining or lubricating your drill press V-BELT Replace V-belt when worn.
- Page 7 Palmgren Operating Manual & Parts List 80206 T T R R O O U U B B L L E E S S H H O O O O T T I I N N G G SYMPTOM POSSIBLE CAUSES...
- Page 8 Palmgren Operating Manual & Parts List 80206 Figure 5 - Replacement Parts Illustration for Base...
- Page 9 Palmgren Operating Manual & Parts List 80206 R R E E P P L L A A C C E E M M E E N N T T P P A A R R T T S S L L I I S S T T F F O O R R B B A A S S E E Ref.
- Page 10 Palmgren Operating Manual & Parts List 80206 Figure 6 - Replacement Parts Illustration for Head...
- Page 11 Palmgren Operating Manual & Parts List 80206 R R E E P P L L A A C C E E M M E E N N T T P P A A R R T T S S L L I I S S T T F F O O R R H H E E A A D D Ref.
- Page 12 W W A A R R R R A A N N T T Y Y FULL TWO YEAR WARRANTY ON PALMGREN DRILL PRESS If within two full years from the date of purchase, this Palmgren Drill Press fails due to a defect in material or workmanship, Palmgren will repair it free of charge.
