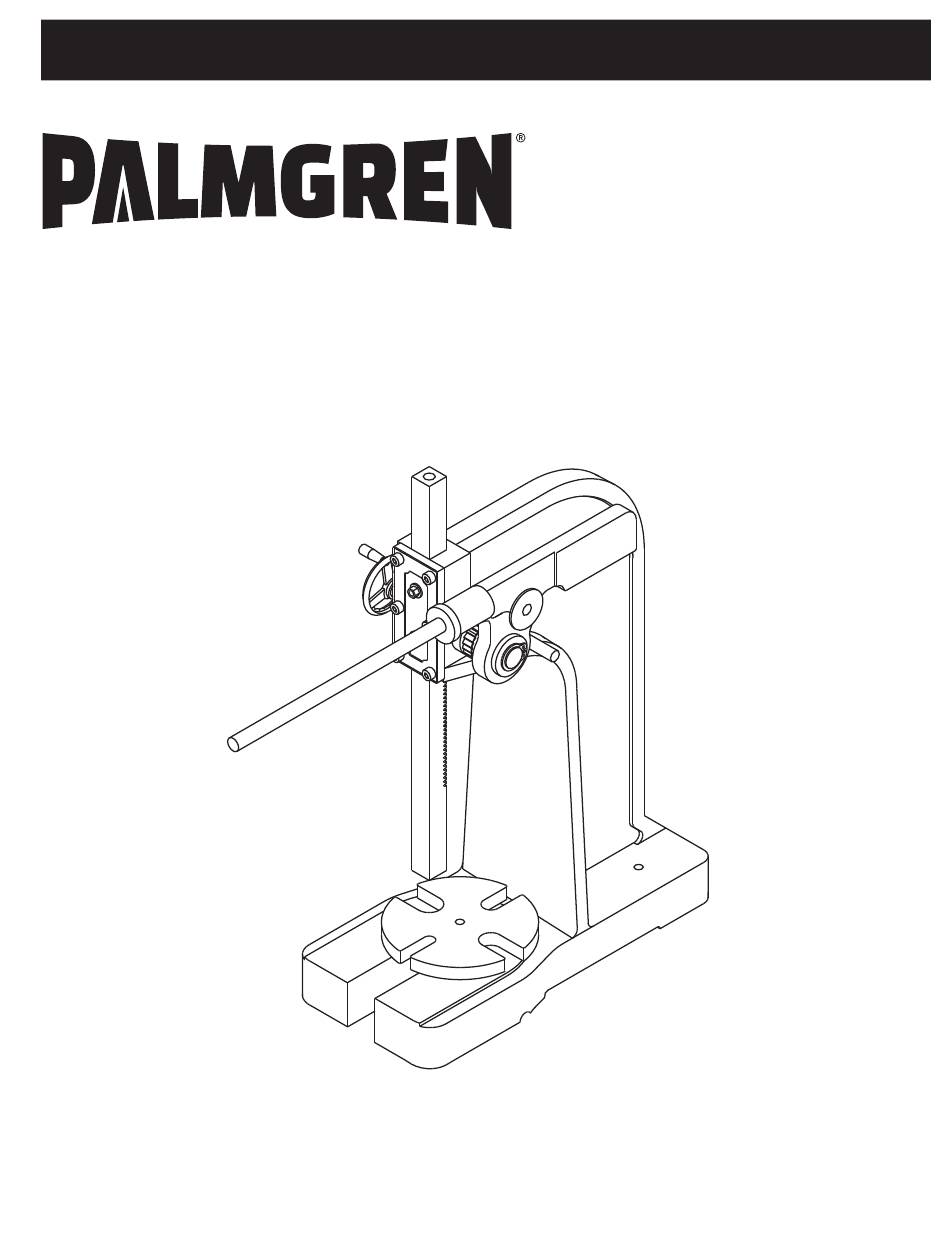

OPERATING MANUAL & PARTS LIST 9661104 & 9661302B 9661104 1½-Ton & 9661302B 3-Ton Ratcheting Arbor Presses Read carefully and follow all safety rules and operating instructions before first use of this product. 9645946.01-0720...
Page 2
To adjust ram movement,loosen hex nuts and adjust set screws (Ref. Nos. 23 and 22) using equal Palmgren Ratcheting Arbor Presses are designed for riveting, pressure. Secure set screws with hex nuts. Tighten set screw (Ref.
Page 3
Palmgren Operating Manual & Parts List 9661104 & 9661302B Figure 2 - Replacement parts illustration for ratcheting arbor presses. REPLACEMENT PARTS LIST FOR RATCHETING ARBOR PRESSES Ref. Part Number for: Ref. No. Description 9661302B 9661104 Qty. No. Description Part No.
Page 4
9661104 & 9661302B PALMGREN WARRANTY C.H. Hanson / Palmgren warrants their products to be free of defects in material or workmanship. This warranty does not cover defects due directly or indirectly to misuse, abuse, normal wear and tear, failure to properly maintain the product, heated, ground or otherwise altered, or used for a purpose other than that for which is was intended.
