Quick Installation Guide
AC1200 Wireless LAN Concurrent
Package Contents .......................................................................... Page 1
Build Network Connections ......................................................... Page 2
Network Setup ............................................................................... Page 3
Package Contents
Before starting to use this router, please check if there's anything missing in the package, and
contact your dealer of purchase to claim for missing items:

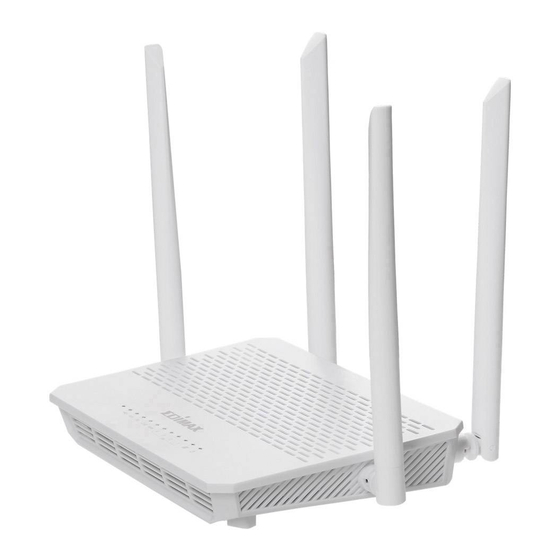

Broadband Gigabit Router (main body, 1 pcs)
□
Quick Installation Guide (1 pcs)
□
User Manual CD-ROM (1 pcs)
□
A/C Power Adapter (12VDC / 1.5A) (1 pcs)
□
Operating Temperature (32 °F to 104 °F (0 °C to 40 °C)
□
Dual Band Gigabit Router
1WAN + 4LAN
Advertisement
Table of Contents
Related Manuals for Digitus BR-6478AC
Summary of Contents for Digitus BR-6478AC
- Page 1 Quick Installation Guide AC1200 Wireless LAN Concurrent Dual Band Gigabit Router 1WAN + 4LAN Package Contents ................Page 1 Build Network Connections ............Page 2 Network Setup ................Page 3 Package Contents Before starting to use this router, please check if there’s anything missing in the package, and contact your dealer of purchase to claim for missing items: Broadband Gigabit Router (main body, 1 pcs) □...
- Page 2 Build Network Connections Please follow the following instructions to setup wireless router: 1. Connect your xDSL / Cable modem to the WAN port of router by Ethernet cable. 2. Connect all your computers, network devices (network-enabled consumer devices other than computers, like game console, or switch / hub) to the LAN port of the router.
- Page 3 Please check all LEDs on the front panel. ‘PWR’ LED should be steadily on, WAN and LAN LEDs should be on if the computer / network device connected to the respective port of the router is powered on and correctly connected. If ‘PWR’...
- Page 4 Network Setup Please use the web browser to configure the wireless router. A computer with wired Ethernet connection to the wireless router is required for this first-time configuration. 1. Set your computer to obtain an IP address from wireless router: click ‘Start’...
- Page 5 3. Select ‘Obtain an IP address automatically’ and ‘Obtain DNS server address automatically’, then click ‘OK’. 4. After the IP address setup is complete, please click ‘Start’ -> ‘Run’ at the bottom-lower corner of your desktop, then input ‘cmd’ and click ‘OK’.
- Page 6 5. Input ‘ipconfig’, then press ‘Enter’ key. Please check the IP address followed by ‘Default Gateway’ (In this example, the IP address of router is 192.168.2.1) Please note that this value may be different. HERE! 6. Start the web browser and input the IP address of wireless router in address bar, and the following message should be shown.
- Page 7 9. Select a broadband type of the Internet connection you’re using, then click ‘NEXT’. 10. Please input the Internet connection parameters, you should use the value provided by your Internet service provider. Click ‘OK’ when you finish. (The content of this page will vary depends on the connection method you selected in step 9) 11.
- Page 8 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
