Digitus GreyRapid N User Manual

Greyrapid n wireless network router
Hide thumbs
Table of Contents

Advertisement

Quick Links

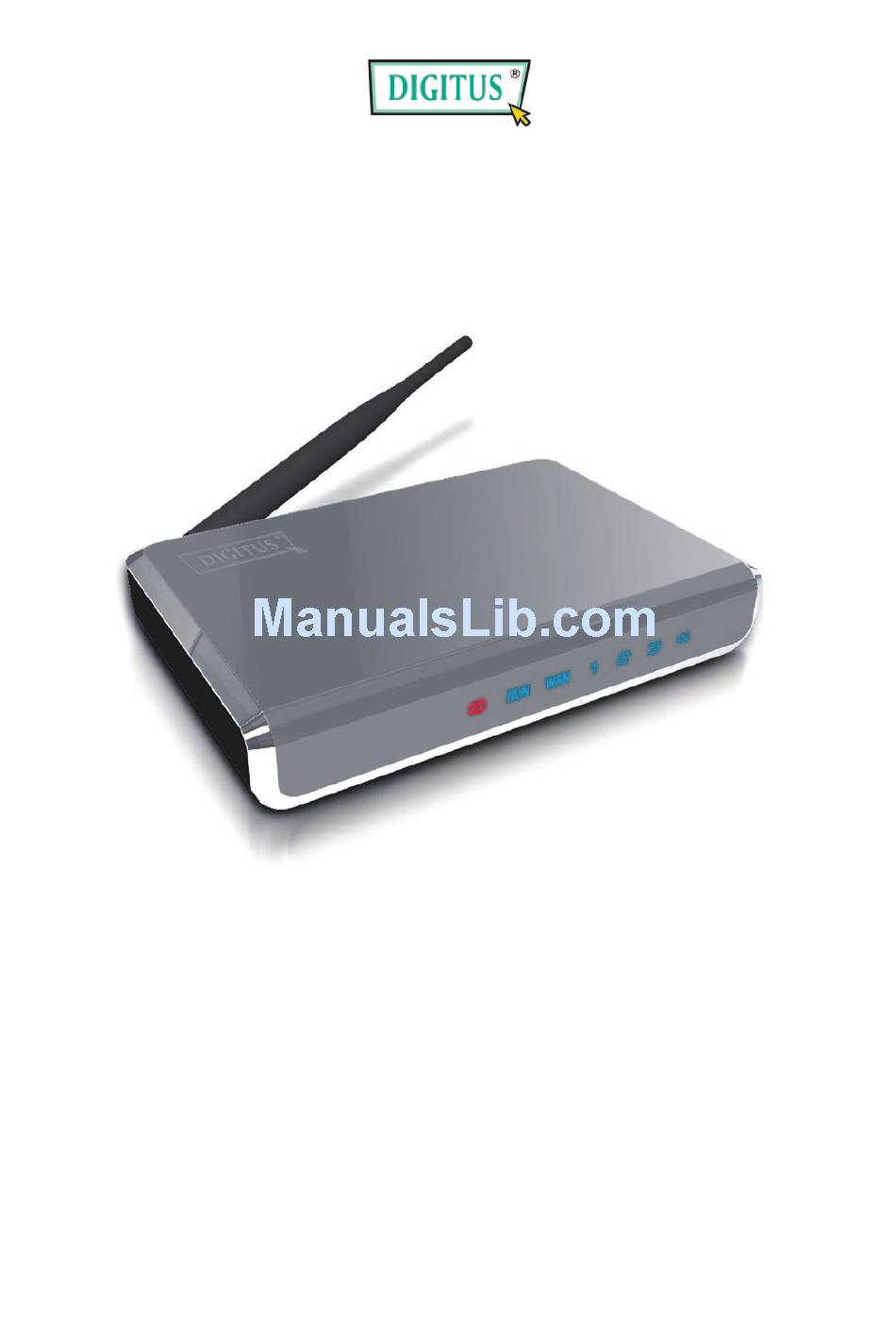

GreyRapid N
Wireless Network Router
User's Manual
(DN-7049-1 Version: 1.0)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GreyRapid N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digitus GreyRapid N

Summary of Contents for Digitus GreyRapid N

  • Page 1 GreyRapid N Wireless Network Router User’s Manual (DN-7049-1 Version: 1.0)
  • Page 2 COPYRIGHT Copyright ©2008/2009 by this company. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties,...

  • Page 3: Federal Communication Commission Interference Statement

    Federal Communication Commission Interference Statement FCC Part 15 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 4 compliance could void the authority to operate equipment. Federal Communication Commission (FCC) Radiation Exposure Statement This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation.

  • Page 5: R&Tte Compliance Statement

    R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000.
  • Page 6 CATALOG CHAPTER I: PRODUCT INFORMATION 1-1 Introduction and safety information 1-2 Safety Information 1-3 System Requirements 1-4 Package Contents 1-5 Familiar with your new wireless broadband router CHAPTER II: SYSTEM AND NETWORK SETUP 2-1 Build network connection 2-2 Connecting to wireless broadband router by web browser 2-2-1 Windows 95/98/Me IP address setup 2-2-2 Windows 2000 IP address setup 2-2-3 Windows XP IP address setup...
  • Page 7 2-5 Setup Internet Connection (WAN Setup) 2-5-1 Setup procedure for ‘Dynamic IP’ 2-5-2 Setup procedure for ‘Static IP’ 2-5-3 Setup procedure for ‘PPPoE’ 2-5-4 Setup procedure for ‘PPTP’ 2-5-5 Setup procedure for ‘L2TP’ 2-5-6 Setup procedure for ‘Telstra Big Pond’ 2-5-7 Setup procedure for ‘DNS’...
  • Page 8 CHAPTER III: ADVANCED FUNCTIONS 3-1 Quality of Service (QoS) 3-1-1 Basic QoS Settings 3-1-2 Add a new QoS rule 3-2 Network Address Translation (NAT) 3-2-1 Basic NAT Settings (Enable or disable NAT function) 3-2-2 Port Forwarding 3-2-3 Virtual Server 3-2-4 Port Mapping for Special Applications 3-2-5 UPnP Setting 3-2-6 ALG Settings 3-3 Firewall...
  • Page 9 CHAPTER IV: APPENDIX 4-1 Hardware Specification 4-2 Troubleshooting 4-3 Glossary...

  • Page 10: Chapter I: Product Information

    Chapter I: Product Information 1-1 Introduction and safety information Thank you for purchasing this wireless broadband router! This high cost-efficiency router is the best choice for Small office / Home office users, all computers and network devices can share a single xDSL / cable modem internet connection at high speed.
  • Page 11 • Easy to use Web-based GUI for network configuration and management purposes • Remote management function allows configuration and upgrades from a remote computer (over the Internet) • Auto MDI / MDI-X function for all wired Ethernet ports.
  • Page 12 1-2 Safety Information In order to keep the safety of users and your properties, please follow the following safety instructions: 1. This router is designed for indoor use only; DO NOT place this router outdoor. 2. DO NOT put this router at or near hot or humid places, like kitchen or bathroom.
  • Page 13 1-3 System Requirements  Internet connection, provided by xDSL or cable modem with a RJ-45 Ethernet port.  Computer or network devices with wired or wireless network interface card.  Web browser (Microsoft Internet Explorer 4.0 or above, Netscape Navigator 4.7 or above, Opera web browser, or Safari web browser). ...
  • Page 14 1-4 Package Contents Before you starting to use this router, please check if there’s anything missing in the package, and contact your dealer of purchase to claim for missing items: Broadband router (main body, 1 pcs)…………………………… 1 □ Quick installation guide (1 pcs) ………………………………… 2 □...

  • Page 15: Front Panel

    1-5 Familiar with your new wireless broadband router Front Panel LED Name Light Status Description Router is switched on and correctly powered. Wireless WPS function is enabled. Wireless network is switched off. WLAN Flashing Wireless LAN activity (transferring or receiving data). WAN port is connected.

  • Page 16: Back Panel

    Back Panel Item Name Description Antenna It is 3dBi dipole antenna. Radio ON/OFF Switch the button to activate or deactivate the wireless functions. Reset / WPS Reset the router to factory default settings (clear all settings) or start WPS function. Press this button and hold for 10 seconds to restore all settings to factory defaults, and press this button for less than 5 seconds to start WPS function.

  • Page 17: Chapter Ii: System And Network Setup

    Chapter II: System and Network Setup 2-1 Build network connection Please follow the following instruction to build the network connection between your new WIRELESS router and your computers, network devices: 1. Connect your xDSL / cable modem to the WAN port of router by Ethernet cable.
  • Page 18 3. Connect the A/C power adapter to the wall socket, and then connect it to the ‘Power’ socket of the router. 4. Please check all LEDs on the front panel. ‘PWR’ LED should be steadily on, WAN and LAN LEDs should be on if the computer / network device connected to the respective port of the router is powered on and correctly connected.
  • Page 19 2-2 Connecting to wireless broadband router by web browser After the network connection is built, the next step you should do is setup the router with proper network parameters, so it can work properly in your network environment. Before you can connect to the router and start configuration procedures, your computer must be able to get an IP address automatically (use dynamic IP address).
  • Page 20 2. Select ‘Obtain an IP address from a DHCP server’ and then click ‘OK’.
  • Page 21 2-2-2Windows 2000 IP address setup: 1. Click ‘Start’ button (it should be located at lower-left corner of your computer), then click control panel. Double-click Network and Dial-up Connections icon; click Local Area Connection, and Local Area Connection Properties window will appear. Select ‘Internet Protocol (TCP/IP)’...
  • Page 22 2. Select ‘Obtain an IP address automatically’ and ‘Obtain DNS server address automatically’, then click ‘OK’.
  • Page 23 2-2-3Windows XP IP address setup: 1. Click ‘Start’ button (it should be located at lower-left corner of your computer), then click control panel. Double-click Network and Internet Connections icon, click Network Connections, then double-click Local Area Connection, Local Area Connection Status window will appear, and then click ‘Properties’...
  • Page 24 2. Select ‘Obtain an IP address automatically’ and ‘Obtain DNS server address automatically’, then click ‘OK’.
  • Page 25 2-2-4Windows Vista IP address setup: 1. Click ‘Start’ button (it should be located at lower-left corner of your computer), then click control panel. Click View Network Status and Tasks, and then click Manage Network Connections. Right-click Local Area Network, then select ‘Properties’. Local Area Connection Properties window will appear, select ‘Internet Protocol Version 4 (TCP / IPv4), and then click ‘Properties’...
  • Page 26 2. Select ‘Obtain an IP address automatically’ and ‘Obtain DNS server address automatically’, then click ‘OK’.
  • Page 28 2-2-5 Router IP address lookup After the IP address setup is complete, please click ‘start’ -> ‘run’ at the bottom-lower corner of your desktop: Input ‘cmd’, then click ‘OK’...
  • Page 29 Input ‘ipconfig’, then press ‘Enter’ key. Please check the IP address followed by ‘Default Gateway’ (In this example, the IP address of router is 192.168.2.1, please note that this value may be different.) NOTE: If the IP address of Gateway is not displayed, or the address followed by ‘IP Address’...
  • Page 30 Please input user name and password in the field respectively, default user name is ‘admin’, and default password is ‘1234’, then press ‘OK’ button, and you can see the web management interface of this router: NOTE: If you can’t see the web management interface, and you’re being prompted to input user name and password again, it means you didn’t input username and password correctly.
  • Page 31 2-3 Using ‘Quick Setup’ This router provides a ‘Quick Setup’ procedure, which will help you to complete all required settings you need to access the Internet in very short time. Please follow the following instructions to complete the ‘Quick Setup’: Please go to QuickSetup menu by clicking ‘QuickSetup’...
  • Page 32 And the following message will be displayed: 1. Set Time Zone Here are descriptions of every setup items: Set Time Please press button, a drop-down list Zone (1): will be shown, and you can choose a time zone of the location you live. Time Server Input the IP address / host name of time server Address (2):...
  • Page 33 2. Broadband Type Please choose the broadband (Internet connection) type you’re using in this page. There are six types of Internet connection, they are: Cable Modem - Please go to section 2-3-1 Fixed-IP xDSL - Please go to section 2-3-2 PPPoE xDSL - Please go to section 2-3-3 PPTP xDSL...
  • Page 34 2-3-1 Setup procedure for ‘Cable Modem’: Here are descriptions of every setup items: Host Name (1): Please input the host name of your computer, this is optional, and only required if your service provider asks you to do so. MAC address (2): Please input MAC address of your computer here, if your service provider only permits computer with certain MAC address to access internet.
  • Page 35 Here are descriptions of every setup items: IP address Please input IP address assigned assigned by your by your service provider. Service Provider (1): Subnet Mask (2): Please input subnet mask assigned by your service provider DNS address (3): Please input the IP address of DNS server provided by your service provider.
  • Page 36 2-3-3 Setup procedure for ‘PPPoE xDSL’: Here are descriptions of every setup items: User Name (1): Please input user name assigned by your Internet service provider here. Password (2): Please input the password assigned by your Internet service provider here. Service Name (3): Please give a name to this Internet service, this is optional...
  • Page 37 When you finish with all settings, please click ‘OK’ (7); if you want to go back to previous menu, click ‘Back’. MTU - Please use default value if you don’t know what it is, or ask your service provider for a proper value. Connection Type - There are 3 options: ‘Continuous’...
  • Page 38 WAN interface settings must be correctly set, or the Internet connection will fail even those settings of PPTP settings are correct. Please contact your Internet service provider if you don’t know what you should fill in these fields. Now please go to PPTP settings section: Here are descriptions of every setup items: User Name (1): Please input user ID (user name) assigned by your...
  • Page 39 BEZEQ network in Israel. Connection Please select the connection type of Internet type (7): connection you wish to use, please refer to last section for detailed descriptions. Idle Time Please input the idle time out of Internet Out (8): connection you wish to use, and refer to last section for detailed descriptions.
  • Page 40 WAN interface settings must be correctly set, or the Internet connection will fail even those settings of PPTP settings are correct. Please contact your Internet service provider if you don’t know what you should fill in these fields. Now please go to L2TP settings section: Here are descriptions of every setup items: User Name (1): Please input user ID (user name) assigned by your...
  • Page 41 for detailed descriptions. When you finish with all settings, please click ‘OK (7); if you want to go back to previous menu, click ‘Back’. 2-3-6 Setup procedure for ‘Telstra Big Pond’: This setting only works when you’re using Telstra big pond’s network service in Australia.
  • Page 42 Please click ‘Apply’ button to prepare to restart the router, and you’ll see this message: Please wait for about 30 seconds, then click ‘OK!’ button. You’ll be back to router management interface again, and the router is ready with new settings.
  • Page 43 2-4 Basic Setup In this chapter, you’ll know how to change the time zone, password, and remote management settings. Please start your web browser and log onto router web management interface, then click ‘General Setup’ button on the left, or click ‘General Setup’ link at the upper-right corner of web management interface.
  • Page 44 enable daylight savings setting, please check ‘Enable Function’ box, and set the duration of daylight setting. When you finish, click ‘Apply’. You’ll see the following message displayed on web browser: Press ‘Continue’ to save the settings made and back to web management interface;...
  • Page 45 Here are descriptions of every setup items: Current Please input current password here. Password (1): New Password (2): Please input new password here. Confirmed Please input new password here again. Password (3): When you finish, click ‘Apply’. If you want to keep original password unchanged, click ‘Cancel’.
  • Page 46 Please use new password to enter web management interface again, and you should be able to login with new password. 2-4-3 Remote Management This router does not allow management access from Internet, to prevent possible security risks (especially when you defined a weak password, or didn’t change default password).
  • Page 47 Here are descriptions of every setup items: Host Address (1): Input the IP address of the remote host you wish to initiate a management access. Port (2): You can define the port number this router should expect an incoming request. If you’re providing a web service (default port number is 80), you should try to use other port number.
  • Page 48 NOTE: When you want to manage this router from another computer on internet, you have to input the IP address and port number of this router. If your Internet service provider assigns you with a static IP address, it will not be a problem; but if the IP address your service provider assigns to you will vary every time you establish an internet connection, this will be a problem.
  • Page 49 2-5 Setup Internet Connection (WAN Setup) Internet connections setup can be done by using ‘Quick Setup’ menu described in chapter 2-3. However, you can setup WAN connections up by using WAN configuration menu. You can also set advanced functions like DDNS (Dynamic DNS) here. To start configuration, please follow the following instructions: Please click ‘WAN’...
  • Page 50 2-5-1 Setup procedure for ‘Dynamic IP’: Here are descriptions of every setup items: Host Name (1): Please input host name of your computer, this is optional, and only required if your service provider asks you to do so. MAC Address (2): Please input MAC address of your computer, if your service provider only permits computer with certain MAC address to access internet.
  • Page 51 Please click ‘Continue’ (1) to back to previous setup menu; to continue on router setup, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). 2-5-2 Setup procedure for ‘Static IP’: Here are descriptions of every setup items: IP address assigned Please input IP address assigned...
  • Page 52 Please click ‘Continue’ to back to previous setup menu; to continue on other setup procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). If you want to reset all settings in this page back to previously-saved value, please click ‘Cancel’...
  • Page 53 Password (2): Please input the password assigned by your Internet service provider here. Service Name (3): Please give a name to this Internet service, this is optional MTU (4): Please input the MTU value of your network connection here. If you don’t know, you can use default value.
  • Page 54 Please click ‘Continue’ to back to previous setup menu; to continue on other setup procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). If you want to reset all settings in this page back to previously-saved value, please click ‘Cancel’...
  • Page 55 your Internet service provider if you don’t know what you should fill in these fields. Now please go to PPTP settings section: Here are descriptions of every setup items: User Name (1): Please input user ID (user name) assigned by your Internet service provider here.
  • Page 56 Connection Please select the connection type of Internet type (7): connection you wish to use, please refer to section 2-5-3 for detailed descriptions. Idle Time Out (8): Please input the idle time out of Internet connection you wish to use, and refer to section 2-5-3 for detailed descriptions.
  • Page 57 Here are descriptions of every setup items: User ID (1): Please input user ID (user name) assigned by your Internet service provider here. Password (2): Please input the password assigned by your Internet service provider here. L2TP Please input the IP address of PPTP gateway Gateway (3): assigned by your Internet service provider here.
  • Page 58 If you want to reset all settings in this page back to previously-saved value, please click ‘Cancel’ button. 2-5-6 Setup procedure for ‘Telstra Big Pond’: This setting only works when you’re using Telstra big pond’s network service in Australia. You need to input: User Name (1): Please input the user name assigned by Telstra.
  • Page 59 Please click ‘Continue’ to back to previous setup menu; to continue on other setup procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). If you want to reset all settings in this page back to previously-saved value, please click ‘Cancel’...
  • Page 60 Here are descriptions of every setup items: DNS Address (1): Please input the IP address of DNS server provided by your service provider. Secondary Please input the IP address of another DNS DNS Address (2): server provided by your service provider, this is optional.
  • Page 61 2-5-8 Setup procedure for ‘DDNS’: DDNS (Dynamic DNS) is an IP-to-Hostname mapping service for those Internet users who don’t have a static (fixed) IP address. It will be a problem when such user wants to provide services to other users on Internet, because their IP address will vary every time when connected to Internet, and other user will not be able to know the IP address they’re using at a certain time.
  • Page 62 service provider. Account / Input account or email of DDNS registration. E-Mail (4): Password / Key (5): Input DDNS service password or key. After you finish with all settings, please click ‘Apply’ (6) button and the following message will be displayed on your web browser: Please click ‘Continue’...
  • Page 63 Wired LAN Configurations Before all computers using wired Ethernet connection (i.e. those computers connect to this router’s LAN port 1 to 4 by Ethernet cable) can communicate with each other and access internet, they must have a valid IP address. There are two ways to assign IP addresses to computers: static IP address (set the IP address for every computer manually), and dynamic IP address (IP address of computers will be assigned by router automatically.
  • Page 64 Please follow the following instructions to set wired LAN parameters: Please click ‘LAN’ menu on the left of web management interface, there are three setup groups here: ‘LAN IP’, ‘DHCP Server’, and ‘Static DHCP Leases Table’. Here are setup instructions for each of them: 2-6-1 LAN IP section: Here are descriptions of every setup items: IP address (1):...
  • Page 65 2-6-2 DHCP Server: These settings are only available when ‘DHCP Server’ in ‘LAN IP’ section is ‘Enabled’, and here are descriptions of every setup items: Lease Time (1): Please choose a lease time (the duration that every computer can keep a specific IP address) of every IP address assigned by this router from dropdown menu.
  • Page 66 2-6-3 Static DHCP Leases Table: This function allows you to assign a static IP address to a specific computer forever, so you don’t have to set the IP address for a computer, and still enjoy the benefit of using DHCP server. Maximum 16 static IP addresses can be assigned here.
  • Page 67 If you want to remove all characters you just entered, click ‘Clear’. After you clicked ‘Add’, the MAC address and IP address mapping will be added to ‘Static DHCP Leases Table’ section. If you want to delete a specific item, please check the ‘Select’ box of a MAC address and IP address mapping (1), then click ‘Delete Selected’...
  • Page 68 2-7 Wireless LAN ConfigurationConfigurations If your computer, PDA, game console, or other network devices which is equipped with wireless network interface, you can use the wireless function of this router to let them connect to Internet and share resources with other computers with wired-LAN connection. You can also use the built-in security functions to protect your network from being intruded by malicious intruders.
  • Page 69 Please click ‘Continue’ to back to previous setup menu; to continue on other setup procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). 2-7-1 Basic Wireless Settings Please click ‘Wireless’...

  • Page 70: Ap Bridge-Wds

    c. AP Bridge-Point to Point: Connect this router with another wireless router, to expand the scope of network. d. AP Bridge-Point to Multi-Point: Connect this router with up to four other wireless routers, to expand the scope of network. e. AP Bridge-WDS: Connect this router with up to four WDS-capable wireless routers, to expand the scope of network.
  • Page 71 (2), and the following message will be displayed: Here are descriptions of every setup items: Band (2): Please select the radio band from one of following options: 2.4 GHz (B) 2.4GHz band, only allows 802.11b wireless network client to connect this router (maximum transfer rate 11Mbps).
  • Page 72 NOTE: For 802.11b and 802.11g mode, the signals can be transmitted only by antenna 1 (The antenna in the right side of the rear panel). For 802.11n mode: The router is operating in a 1T2R Spatial Multiplexing MIMO configuration. 1 antenna is for signal transmitting and 2 antennas are for signal receiving.
  • Page 73 NOTE: If you don’t have special reason to limit the type of allowed wireless client, it’s recommended to choose ‘2.4 GHz (B+G+N) to TIPS: You can try to change channel number to another one if you maximize wireless client compatibility. think the data transfer rate is too slow.
  • Page 74 list all available access points near by. You can select one access point in the table and it will join wireless LAN through this access point. Wireless MAC For some applications, you may need to designate a Address (5): specific MAC address for the router. Please enter the MAC address here.
  • Page 75 Channel Select the channel you want to use, two wireless Number (3): routers must use the same setting. address 1(4): Input the MAC address of another wireless router. Security Click to setting security for this connection Settings (5): (Please go to section ‘2-7-3 Wireless Security’ for detailed instructions).
  • Page 76 MAC address Input the MAC address of other wireless routers. 1 to 4 (4 - 7): Security Click to set security settings for this connection Setting (8): (Please go to section ‘2-7-3 Wireless Security’ for detailed instructions). 2-7-1-5 Setup procedure for ‘AP Bridge – WDS’ In this mode, you can expand the scope of network by combining up to four other access points together, and every access point can still accept wireless clients.
  • Page 77 Channel Select the channel you want to use, all the wireless Number (4): routers must use the same setting. Associated Clients (5):Click ‘Show Active Clients’ button, then an “Active Wireless Client Table” will pop up. You can see the status of all active wireless stations that are connecting to the access point.
  • Page 78 Here are descriptions of every setup items: Band (2): Select the band you want to use, all the wireless routers must use the same setting. SSID (3): This is the name of wireless router. You can type any alphanumerical characters here, maximum 32 characters.
  • Page 79 Please click ‘Continue’ to back to previous setup menu; to continue on router setup, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). 2-7-2 Advanced Wireless Settings This router provides some advanced control of wireless parameters, if you want to configure these settings, please click ‘Wireless’...
  • Page 80 Threshold (1): Do not modify default value if you don’t know what it is, default value is 2346. RTS Threshold (2): Set the RTS threshold of wireless radio. Do not modify default value if you don’t know what it is, default value is 2347.
  • Page 81 CTS Protect (10): Enabling this setting will reduce the chance of radio signal collisions between 802.11b and 802.11g/n wireless access points. It’s recommended to set this option to ‘Auto’ or ‘Always’. However, if you set to ‘None’, your wireless router should be able to work fine, too.
  • Page 82 2-7-3 Wireless Security It’s very important to set wireless security settings properly! If you don’t, hackers and malicious users can reach your network and valuable data without your consent and this will cause serious security problem. To set wireless security settings, Please click ‘Wireless’ menu on the left of web management interface, then click ‘Security Settings’, then follow the following instructions to set wireless security settings: Please select an encryption method from ‘Encryption’...
  • Page 83 Here are descriptions of every setup items: Key Length (2): There are two types of WEP key length: 64-bit and 128-bit. Using ‘128-bit’ is safer than ’64-bit’, but will reduce some data transfer performance. Key Format (3): There are two types of key format: ASCII and Hex. When you select a key format, the number of characters of key will be displayed.
  • Page 84 RADIUS Server Please input the IP address of radius IP address (11): server here RADIUS Server Please input the port number of radius Port (12): server here. RADIUS Server Please input the port number of radius Password (13): password here. TIPS: Some examples of WEP key (Don’t use those examples;...
  • Page 85 Please click ‘Continue’ to back to previous setup menu; to continue on other setup procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). 2-7-3-3 Wi-Fi Protected Access (WPA): When you select this mode, the wireless router will use WPA encryption, and the following setup menu will be shown on your web browser: Here are descriptions of every setup items:...
  • Page 86 After you finish WPA Pre-shared key setting, please click ‘Apply’ button (5) and the following message will be displayed on your web browser: Please click ‘Continue’ to back to previous setup menu; to continue on other setup procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting).
  • Page 87 RADIUS Server Please input the IP address of your IP address (3): Radius authentication server here. RADIUS Server Please input the port number of your Port (4): Radius authentication server here. Default setting is 1812. RADIUS Server Please input the password of your Radius Password (5): authentication server here.
  • Page 88 web browser: All allowed MAC addresses will be displayed in ‘MAC Address Filtering Table’ (1). Here are descriptions of every setup items: Delete Selected (2): If you want to delete a specific MAC address entry, check the ‘select’ box of the MAC address you want to delete, then click ‘Delete Selected’...
  • Page 89 Comment (6): You can input any text here as the comment of this MAC address, like ‘ROOM 2A Computer’ or anything. You can input up to 16 alphanumerical characters here. This is optional and you can leave it blank, however, it’s recommended to use this field to write a comment for every MAC addresses as a memory aid.
  • Page 90 2-7-5 Wi-Fi Protected Setup (WPS) Wi-Fi Protected Setup (WPS) is the simplest way to build connection between wireless network clients and this wireless router. You don’t have to select encryption mode and input a long encryption passphrase every time when you need to setup a wireless client, you only have to press a button on wireless client and this wireless router, and the WPS will do the rest for you.
  • Page 91 Here are descriptions of every setup items: Enable WPS (1): Check this box to enable WPS function, uncheck it to disable WPS. WPS Information (2):WPS-related system information will be displayed here: WPS Status: If the wireless security (encryption) function of this wireless router is properly set, you’ll see ‘Configured’...
  • Page 92 Configure Click ‘Start PBC’ to start Push-Button style WPS by Push Button (4): setup procedure. This wireless router will wait for WPS requests from wireless clients for 2 minutes. The ‘WLAN’ LED on the wireless router will be steady on for 2 minutes when this wireless router is waiting for incoming WPS request.
  • Page 93 2-7-6 Security Tips for Wireless Network Here are some quick tips to help you improve the security level of your wireless network: 1. Never use simple words (like school, apple and computer) as WEP encryption or WPA passphrase. 2. A complicated (the combination of number, alphabet, even symbol, and long enough) WEP key and WPA passphrase is much safer than simple and short ones.

  • Page 94: Chapter Iii Advanced Functions

    Chapter III Advanced Functions 3-1 Quality of Service (QoS) Quality of service provides an efficient way for computers on the network to share the internet bandwidth with a promised quality of internet service. Without QoS, all computers and devices on the network will compete with each other to get internet bandwidth, and some applications which require guaranteed bandwidth (like video streaming and network telephone) will be affected, therefore an unpleasing result will occur, like...
  • Page 95 Here are descriptions of every setting: Enable QoS (1): Check this box to enable QoS function, unselect this box if you don’t want to enforce QoS bandwidth limitations. Total Download You can set the limit of total download Bandwidth (2): bandwidth in kbits.
  • Page 96 Move Up (9): You can pull up the priority of the QoS rule you selected by clicking this button. Move Down (10): You can lower the priority of the QoS rule you selected by clicking this button. After you finish with all settings, please click ‘Apply’ (11) button and the following message will be displayed on your web browser: Please click ‘Continue’...
  • Page 97 Here are descriptions of every setup items: Rule Name (a): Please give a name to this QoS rule (up to 15 alphanumerical characters) Bandwidth (b): Set the bandwidth limitation of this QoS rule. You have to select the data direction of this rule (Upload of Download), and the speed of bandwidth limitation in Kbps, then select the type of QoS: ‘guarantee’...
  • Page 98 Remote IP Specify the remote (destination) IP address Address: (e): that will be affected by this rule. Please input the starting IP address in the left field, and input the end IP address in the right field to define a range of IP addresses, or just input the IP address in the left field to define a single IP address.
  • Page 99 3-2 Network Address Translation (NAT) Network address translations solve the problem if sharing a single IP address to multiple computers. Without NAT, all computers must be assigned with a valid Internet IP address to get connected to Internet, but Internet service providers only provide very few IP addresses to every user.
  • Page 100 Please click ‘Continue’ to back to previous setup menu; to continue on other setup procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). 3-2-2 Port Forwarding This function allows you to redirect a single port or consecutive ports of Internet IP address to the same port of the IP address on local network.
  • Page 101 Here are descriptions of every setup items: Enable Port Check this box to enable port mapping, Forwarding (1): and uncheck this box to disable port mapping. Private IP (2): Input the IP address of the computer on local network which provides internet service. Computer Name (3): Pull down the menu and all the computers connected to the router will be listed here.
  • Page 102 Delete All (11): Delete all mappings existed in virtual server table. Reset (12): Unselect all mappings. After you finish with all settings, please click ‘Apply’ (13) button and the following message will be displayed on your web browser: Please click ‘Continue’ to back to previous setup menu; to continue on other setup procedures, or click ‘Apply’...
  • Page 103 Here are descriptions of every setup items: Enable Virtual Check this box to enable virtual server, Server (1): and uncheck this box to disable virtual server. Private IP (2): Input the IP address of the computer which provides Internet service. Computer Name (3): Pull down the menu and all the computers connected to the router will be listed here.
  • Page 104 Reset (9): Remove all inputted values. Virtual Server All existing virtual server mappings will be Table (10): displayed here. Delete (11): Please select a virtual server mapping by clicking the ‘Select’ box of the mapping, then click ‘Delete Selected’ button to remove the mapping. If there’s no existing mapping, this button will be grayed out.
  • Page 105 3-2-4 Port Mapping for Special Applications Some applications require more than one connection a time; these applications won’t work with simple NAT rules. In order to make these applications work, you can use this function to let these applications work. Here are descriptions of every setup items: Enable (1): Check this box to enable special applications and...
  • Page 106 Popula Applications This section lists the more popular applications that (7): require multiple connections. Select an application from the Popular Applications selection and click ‘Add’ to save the setting to ‘Current Trigger-Port Table.’ Add (8): Add the setting to the ‘Current Trigger-Port Table.’ Reset (9): Click ‘Reset’...
  • Page 107 Please click ‘Continue’ to back to previous setup menu; to continue on other setup procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while the router is rebooting). If you want to reset all settings in this page back to previously-saved value, please click ‘Cancel’...
  • Page 108 Please click ‘Continue’ to back to previous setup menu; to continue on other setup procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting). If you want to reset all settings in this page back to previously-saved value, please click ‘Cancel’...
  • Page 109 There are many applications listed here. Please check the box of the special support for applications you need, and then click ‘Apply’ button and the following message will be displayed on your web browser: Please click ‘Continue’ to back to previous setup menu; to continue on other setup procedures, or click ‘Apply’...
  • Page 110 3-3 Firewall Excepting NAT, this router also provides firewall function to block malicious intruders from accessing your computers on local network. These functions include inbound attack prevention, and block outbound traffics, like block URLs which have pre-defined keywords. Please follow the following instructions to enable or disable firewall function: Please click ‘Firewall’...
  • Page 111 settings will take effect (Please wait for about 30 seconds while router is rebooting). 3-3-1 Access Control This function allows or denies computers with specific MAC address from connecting to the network; it can also allow or deny computers with specific IP address, protocol, or port.
  • Page 112 Client PC Please input the MAC address of computer MAC address (2): or network device here, dash ( - ) or colon ( : ) are not required. (i.e. If the MAC address label of your wireless device indicates ‘aa-bb-cc-dd-ee-ff’ or ‘aa:bb:cc:dd:ee:ff ’, just input ‘aabbccddeeff’...
  • Page 113 Enable IP Check this box to enable IP address based Filtering (11): filtering, and please select ‘Deny’ or ‘Allow’ to decide the behavior of IP filtering table. If you select deny, all IP addresses listed in filtering table will be denied from connecting to the network; if you select allow, only IP addresses listed in filtering table will be able to connect to the network, and rejecting all other network devices.
  • Page 114 settings will take effect (Please wait for about 30 seconds while router is rebooting). If you want to reset all settings in this page back to previously-saved value, please click ‘Cancel’ button. 3-3-1-1 Add PC After button is clicked, the following message will be displayed on your web browser:...
  • Page 115 Here are descriptions of every setup items: Client PC Please input any text to describe this IP Description (a): address, up to 16 alphanumerical characters. Client PC IP Please input the starting IP address in the left address (b): field, and input the end IP address in the right field to define a range of IP addresses, or just input the IP address in the left field to define a single IP address.
  • Page 116 can use this function to stop computers in local network from accessing the site you defined here. This function is useful for parents and company managers. Please follow the following instructions to set URL blocking parameters: Please click ‘Firewall’ menu on the left of web management interface, then click ‘URL Blocking’, and the following message will be displayed on your web browser: Here are descriptions of every setup items:...
  • Page 117 Current URL All existing URL/Keywords in filtering Blocking Table (5): table will be listed here. Delete (6): If you want to delete a specific URL/Keyword entry, check the ‘select’ box of the MAC address you want to delete, then click ‘Delete Selected’ button. (You can select more than one MAC addresses).
  • Page 118 Internet connection will become very slow, and server may stop responding because it is not capable to handle too much traffics. This router has a built-in DoS attack prevention mechanism; when you activate it, the router will stop the DoS attack for you. Please follow the following instructions to set DoS prevention parameters: Please click ‘Firewall’...
  • Page 119 able to ping your own router from internet, too. Port Scan (3): Some malicious intruder will try to use a ‘port scanner’ to know how many ports of your Internet IP address are open, and they can collect a lot of valuable information by doing so.
  • Page 120 3-3-3-1 DoS - Advanced Settings When you click ‘Advanced’ button in DoS menu, the following message will be displayed on your web browser: Here are descriptions of every setup items: Ping of Death (a): Set the threshold of when this DoS prevention mechanism will be activated.
  • Page 121 activated. After you finish with all settings, please click ‘Apply’ (e) button and the following message will be displayed on your web browser: Please click ‘Continue’ to back to previous setup menu; to continue on other setup procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 30 seconds while router is rebooting).
  • Page 122 Here are descriptions of every setup items: Enable DMZ (1): Check this box to enable DMZ function, uncheck this box to disable DMZ function. Public IP You can select ‘Dynamic IP’ or ‘Static IP’ here. address (2): If you select ‘Dynamic IP’, you have to select an Internet connection session from dropdown menu;...
  • Page 123 Current All existing public IP address and private IP DMZ Table (7): address mapping will be displayed here. Delete (8): If you want to delete a specific DMZ entry, check the ‘select’ box of the DMZ entry you want to delete, then click ‘Delete Selected’...
  • Page 124 3-4 System Status The functions described here will provide you with system related information. To enter system status menu, please either click ‘Status’ link located at the upper-right corner of web management interface, or click ‘Status’ button in main menu. 3-4-1 System information and firmware version You can use this function to know the system information and firmware version of this router.
  • Page 125 3-4-2 Internet Connection Status You can use this function to know the status of current Internet connection. Please click ‘Internet Connection’ menu on the left of web management interface, and the following message will be displayed on your web browser: This information will vary depending on the connection status.
  • Page 126 This information will vary depending on the device status. 3-4-4 System Log All important system events are logged. You can use this function to check the event log of your router. Please click ‘System Log’ menu on the left of web management interface, and the following message will be displayed on your web browser:...
  • Page 127 The system events will be displayed in this page, and here are descriptions of every buttons: Save (1): Save current event log to a text file. Clear (2): Delete all event logs displayed here. Refresh (3): Refresh the event log display. 3-4-5 Security Log All information about network and system security is kept here, and you can use this function to check the security event log of your router.
  • Page 128 3-4-5 Active DHCP client list If you’re using the DHCP server function of this router, you can use this function to check all active DHCP leases issued by this router. Please click ‘Active DHCP client’ menu on the left of web management interface, and the following message will be displayed on your web browser: All information about active DHCP leases issued by this router will be...
  • Page 129 3-5 Configuration Backup and Restore You can backup all configurations of this router to a file, so you can make several copied of router configuration for security reason. To backup or restore router configuration, please follow the following instructions: Please click ‘Tool’ located at the upper-right corner of web management interface, then click ‘Configuration Tools’...
  • Page 130 3-6 Firmware Upgrade The system software used by this router is called as ‘firmware’, just like any applications on your computer, when you replace the old application with a new one; your computer will be equipped with new function. You can also use this firmware upgrade function to add new functions to your router, even fix the bugs of this router.
  • Page 131 website, and use it to upgrade your router. After a firmware upgrade file is selected, click ‘Apply’ button, and the router will start firmware upgrade procedure automatically. The procedure may take several minutes, please be patient. NOTE: Never interrupt the upgrade procedure by closing the web browser or physically disconnect your computer from router.

  • Page 132: Chapter Iv: Appendix

    Chapter IV: Appendix 4-1 Hardware Specification SoC + RF: Ralink RT3050 Flash: 4MB SDRAM: 32MB 16MB WAN Port: 10/100M UTP Port x 1 LAN Ports: 10/100M UTP Port x 4 Antenna: 3dBi Dipole Antenna x 1 (1T1R ; 1 antenna is for signal transmitting and 1 antenna iss are for signal receiving) Power: 12VDC, 1A Switching Power Adapter Dimension: 30(H) x 157(W) x 127(D) mm...
  • Page 133 4-2 Troubleshooting If you found the router is working improperly or stop responding to you, don’t panic! Before you contact your dealer of purchase for help, please read this troubleshooting first. Some problems can be solved by you within very short time! Scenario Solution Router is not...
  • Page 134 with your computer directly attached to the device provided by your Internet service provider. d. Check PPPoE / L2TP / PPTP user ID and password again. e. Call your Internet service provide and check if there’s something wrong with their service.
  • Page 135 management interface: IP address of the router! password is wrong b. Password is case-sensitive. Make sure the ‘Caps Lock’ light is not illuminated. c. If you really forget the password, do a hard reset. Router become hot a. This is not a malfunction, if you can keep your hand on the router’s case.
  • Page 136 4-3 Glossary Default Gateway (Router): Every non-router IP device needs to configure a default gateway’s IP address. When the device sends out an IP packet, if the destination is not on the same network, the device has to send the packet to its default gateway, which will then send it out towards the destination.
  • Page 137 A network mask is also a 32-bit binary pattern, and consists of consecutive leading 1’s followed by consecutive trailing 0’s, such as 11111111.11111111.11111111.00000000. Therefore sometimes a network mask can also be described simply as “x” number of leading 1’s. When both are represented side by side in their binary forms, all bits in the IP address that correspond to 1’s in the network mask become part of the IP network address, and the remaining bits correspond to the host ID.
  • Page 138 Application Protocol Port Number Telnet SMTP POP3 H.323 1720 SNMP SNMP Trap HTTP PPTP 1723 PC Anywhere TCP 5631 PC Anywhere UDP 5632 PPPoE: Point-to-Point Protocol over Ethernet. Point-to-Point Protocol is a secure data transmission method originally created for dial-up connections; PPPoE is for Ethernet connections.
  • Page 139 transmission over the Internet. Both TCP and UDP are transport layer protocol. TCP performs proper error detection and error recovery, and thus is reliable. UDP on the other hand is not reliable. They both run on top of the IP (Internet Protocol), a network layer protocol.
