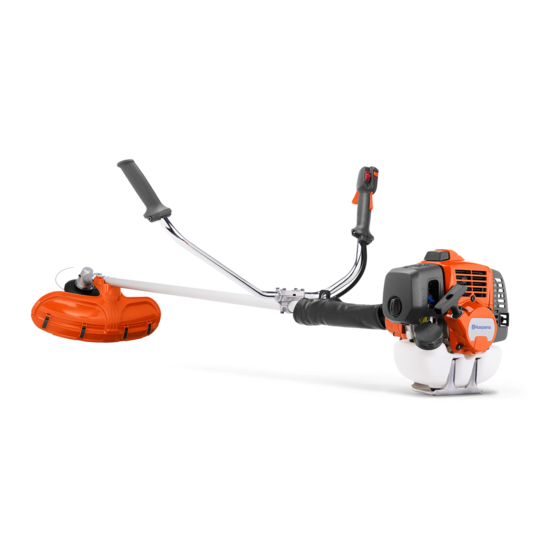

Husqvarna 531RS Operator's Manual
  1. Manuals
  2. Brands
  3. Husqvarna Manuals
  4. Trimmer
  5. 531RS
  6. Operator's manual

Husqvarna 531RS Operator's Manual

Hide thumbs Also See for 531RS:
Table of Contents

Advertisement

Quick Links

Download this manual
531RS, 541RS, 541RST
EN
Operator's manual
2-25

Advertisement

Table of Contents
loading

Related Manuals for Husqvarna 531RS

Summary of Contents for Husqvarna 531RS

  • Page 1 531RS, 541RS, 541RST Operator's manual 2-25...

  • Page 2: Table Of Contents

    Contents Introduction..............2 Troubleshooting............22 Safety................4 Transportation and storage...........23 Assembly..............10 Technical data.............. 23 Operation..............14 Accessories..............24 Maintenance..............18 Appendix ..............26 Introduction Product description product for other tasks than grass trimming and grass clearing. Use a grass blade or trimmer head to cut This product is a grass trimmer/brushcutter with a grass.
  • Page 3 18. Locknut The arrows shows the limit for the handle 19. Support cup position. 20. Support flange 21. Drive disc 22. Handlebar clamp (531RS, 541RS) 23. Operator's manual 24. Transport guard (not for all markets) Choke. 25. Socket wrench 26. Wrench 27.

  • Page 4: Safety

    Safety Safety definitions • Do not breathe in the fumes from the engine. Long- term inhalation of the engine's exhaust fumes is a The definitions below give the level of severity for each health risk. signal word. • Do not start the product indoors or near flammable material.
  • Page 5 • Make sure that the correct handlebar and cutting attachment guard are assembled before you operate the product. • A defective or incorrect cutting attachment guard can cause injury. Do not use a cutting attachment without an approved cutting attachment guard. •...
  • Page 6 • Use a helmet if it is possible that objects fall on your 3. Make sure that the throttle trigger is locked at the head. idle position when the throttle trigger lockout is released. • Always use approved ear protection while you operate the product.
  • Page 7 2. Do a visual check for damages, for example cracks. 3. Release and attach the quick-release mechanism to make sure that it operates correctly. 3. Replace the cutting attachment guard if it is damaged. To do a check of the muffler To do a check of the vibration damping system The vibration damping system decreases vibration in the handles to a minimum which makes the operation...
  • Page 8 • Always use the recommended guard for the cutting equipment. See Technical data. WARNING: Only use cutting attachments with the guards we recommend! See the chapter on Technical data. Refer to the instructions for the cutting attachment to check the correct way to load the trimmer line and the correct trimmer line diameter.
  • Page 9 Trimmer head Blade thrust • A blade thrust is a sudden movement of the product WARNING: Always make sure that the to the side, forward or rearward. A blade thrust trimmer line is wound tightly and equally occurs when the grass blade hits an object that around the drum to prevent harmful cannot be cut.

  • Page 10: Assembly

    Attach the engine (A) to the tube (B) with 4 screws (C). To install the handlebar (541RST) 1. Remove the screw behind the throttle handle. To install the handlebar(531RS, 541RS) 1. Install the handlebar in the handlebar clamp on the shaft.
  • Page 11 5. Put the handlebar assembly and the square nut into 2. Install the throttle cable (A) through the carburetor the bracket. Make sure that the handlebar is in the bracket (B). correct position. 3. Turn the cable adjuster sleeve (C) into the carburetor bracket fully.
  • Page 12 10. Connect the stop switch wires (H) with the 2. Install the blades. connectors from the engine. To install a blade guard and grass blade CAUTION: Only use the approved Accessories guard for the blades. Refer to on page 24 . 11.
  • Page 13 6. Install the nut (E). Hold the shaft of the wrench near 5. Turn the trimmer head (H) counterclockwise. the blade guard. To tighten the nut, you must turn the wrench in the opposite direction of rotation. Tighten the nut to a torque of 35-50 Nm/3.5-5 kpm. Note: Left hand thread.

  • Page 14: Operation

    CAUTION: This product has a two- • If Husqvarna two-stroke oil is not available, you can use another two-stroke oil of good quality that is cycle engine. Use a mixture of gasoline and two-cycle engine oil. Make sure to use the intended for air cooled engines.
  • Page 15 Or it can cause a risk of dangerous injury. 6. Fill the fuel tank. The safety distance is 15 m. To add fuel 1. Put the stop switch to the start position. WARNING: Do not smoke or put hot 2. Push the air purge bulb until fuel starts to fill the objects near fuel.
  • Page 16 6. Set the choke control to the run position. 2. Move the stop switch to the stop position. WARNING: Do not touch the cover. It can burn your skin and cause electrical shock if the spark plug cap is damaged. Do not use a product with damaged spark plug cap.
  • Page 17 • Move in a direction where the wind makes the cut To clear vegetation fall in the cleared area. To achieve the best results: • Hold the trimmer so that the trimmer head is just above the ground. • Tilt the trimmer head at a slight angle. •...

  • Page 18: Maintenance

    To cut the grass To sweep the grass 1. Make sure that the trimmer line is parallel to the The airflow from the rotating trimmer line can be used to ground when you cut. remove cut grass from an area. 1.
  • Page 19 Maintenance Daily Weekly Monthly Examine the trimmer head for damages and cracks. Replace if it is damaged. Examine the handle and handlebar for damage and make sure that they are at- tached correctly. For cutting attachments with a support cup, tighten the locking screw correctly. For cutting attachments with a locknut, tighten the locknut correctly.
  • Page 20 2. Make sure that the muffler is correctly attached to the product. To adjust the idle speed Your Husqvarna product is made to specifications that decrease harmful emissions. 1. Make sure that the air filter is clean and the air filter •...
  • Page 21 7. Make sure that the air filter is dry. • Make sure that the bevel gear is filled ¾ full with 8. Use Husqvarna two-stroke oil to put oil on the air bevel gear grease. filter. If there is too much oil on the air filter, remove the unwanted oil before you install the air filter.

  • Page 22: Troubleshooting

    To examine the spark plug • Replace the spark plug if it is necessary. To sharpen grass cutters and grass CAUTION: Always use the blades recommended spark plug type. Incorrect spark plug type can cause damage to the • Sharpen all edges of the grass cutters and blades product.

  • Page 23: Transportation And Storage

    Keep the product and equipment in a dry and frost- does not keep moisture. proof area. • Keep the product tightly attached during transport. • Clean the product. Technical data Technical data 531RS 541RS 541RST Engine Cylinder displacement, cm 33.6 41.5 41.5 Idle speed, rpm 2500±200...

  • Page 24: Accessories

    531RS 541RS 541RST Electrode gap, mm 0.6-0.7 0.6-0.7 0.6-0.7 Fuel and lubrication system Fuel tank capacity, l/cm 0.74/740 0.94/940 0.94/940 Weight Weight, kg Noise emissions Sound power level, measured, dB (A) Sound power level, guaranteed LWA, dB (A) Sound levels Equivalent sound pressure level at the operator’s ear, measured according to EN ISO 11806 and ISO 22868...
  • Page 25 Approved accessories Accessory type Cutting attachment guard, art. no. Trimmer head T35, T35X (Ø 2.4-3.0 mm cord) 584 40 42-01 S35 (Ø 2.4-3.0 mm cord) 584 40 42-01 T45x (Ø 2.7-3.3 mm cord) 584 40 42-01 T55x (Ø 2.7-3.3 mm cord) 584 40 42-01 S II 584 40 42-01...

  • Page 26: Appendix

    Tri Cut 1491 - 002 - 28.05.2021...
  • Page 27 4,25 m 4,25 m 15 cm 6" 15 cm 6" 1491 - 002 - 28.05.2021...
  • Page 28 8,5 m 10 cm 4" 4,2 m "Click" 15 cm 6" 1491 - 002 - 28.05.2021...
  • Page 29 T35, T35x 8,5 m 10 cm 4" 4,3 m "Click" 15 cm 6" 1491 - 002 - 28.05.2021...
  • Page 30 T45, T45x 10 m 10 cm 4" 4,3 m 15 cm "Click" 6" 1491 - 002 - 28.05.2021...
  • Page 31 T55x A 2,7 - 4,0 mm / .105 - .160" B 8 m / 26’ C 15 cm / 5.9" 15 cm "Click" 6" 1491 - 002 - 28.05.2021...
  • Page 32 Trimmy SII 7,0 m 12 cm 5" ~ 3,5 m ~ 15 cm "Click" 35-50 NM 1491 - 002 - 28.05.2021...
  • Page 33 Trimmy SII 1491 - 002 - 28.05.2021...
  • Page 34 1491 - 002 - 28.05.2021...
  • Page 35 1491 - 002 - 28.05.2021...
  • Page 36 Original instructions 1142371-26 2021-06-01...
